Hays release bearings are a floating design and feature large O-rings and PTFE backup rings in the grooves to help eliminate leakage and offer a long service life. A snap ring on the front of the piston prevents over travel and keeps from pushing the bearing off the sleeve.

The sealed bearing snaps in place and is easily serviceable. Our release bearing kits include bearing assembly, bearing retainer (where required), mounting hardware, adjustment shims, and -3AN feed line.

Features and Benefits:

• Offers improved clutch engagement and disengagement
• Adjustable design provides increased travel over stock release bearing
• Designed to fit various manual transmissions
• Retrofit kits offer an simple way to add easy effort hydraulic clutch actuation
• Works with single or dual disc clutches
• Floating design bearing with large O-rings and PTFE backup rings to eliminated fluid leakage

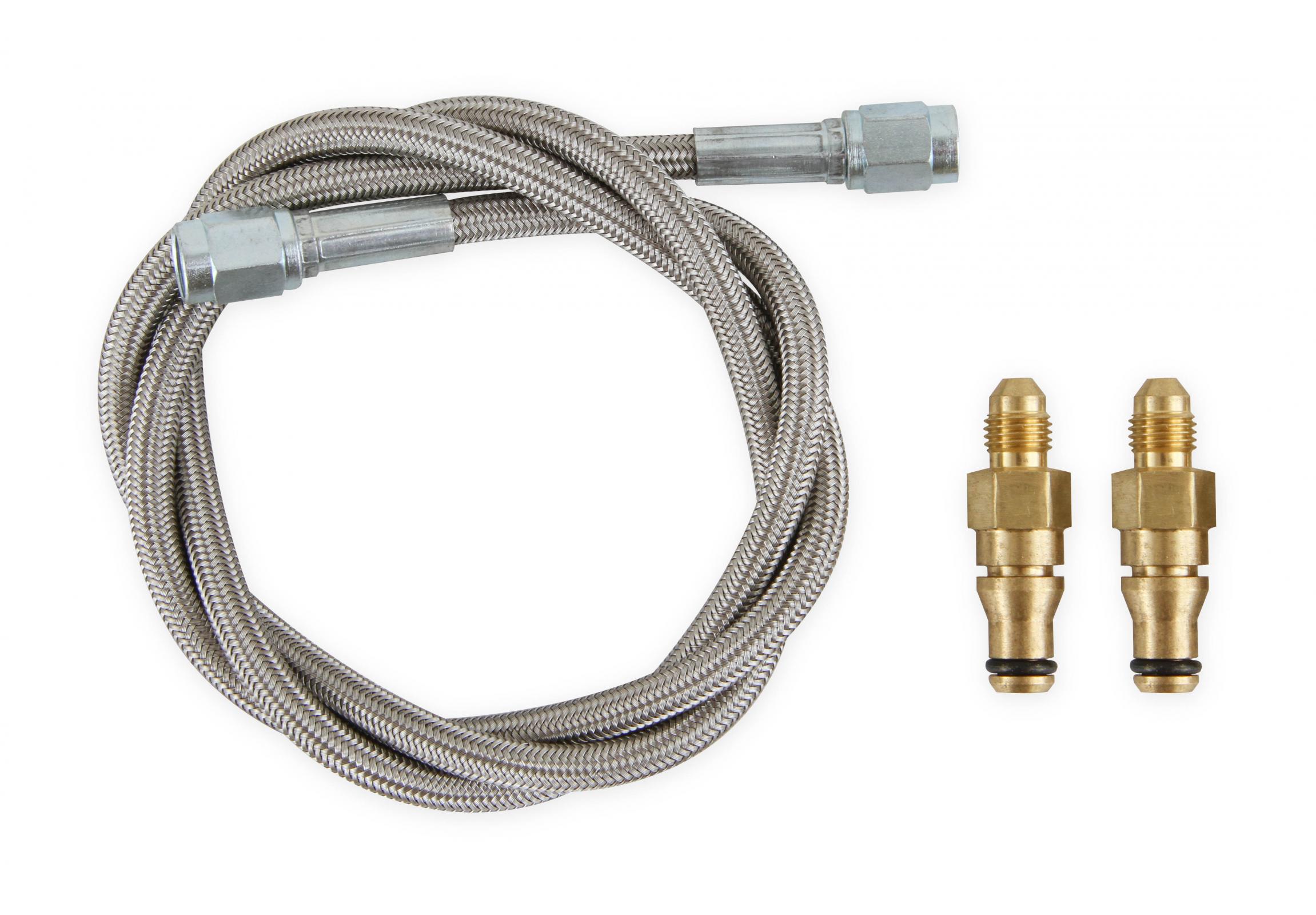

• Kits include bearing assembly, bearing retainer (where required), mounting hardware, adjustment shims, and -3AN feed line

Details:

• Adapter Type: Clutch
• Bearing Retainer Included: No
• Bearing Style: Hydraulic
• Emission Code: 5

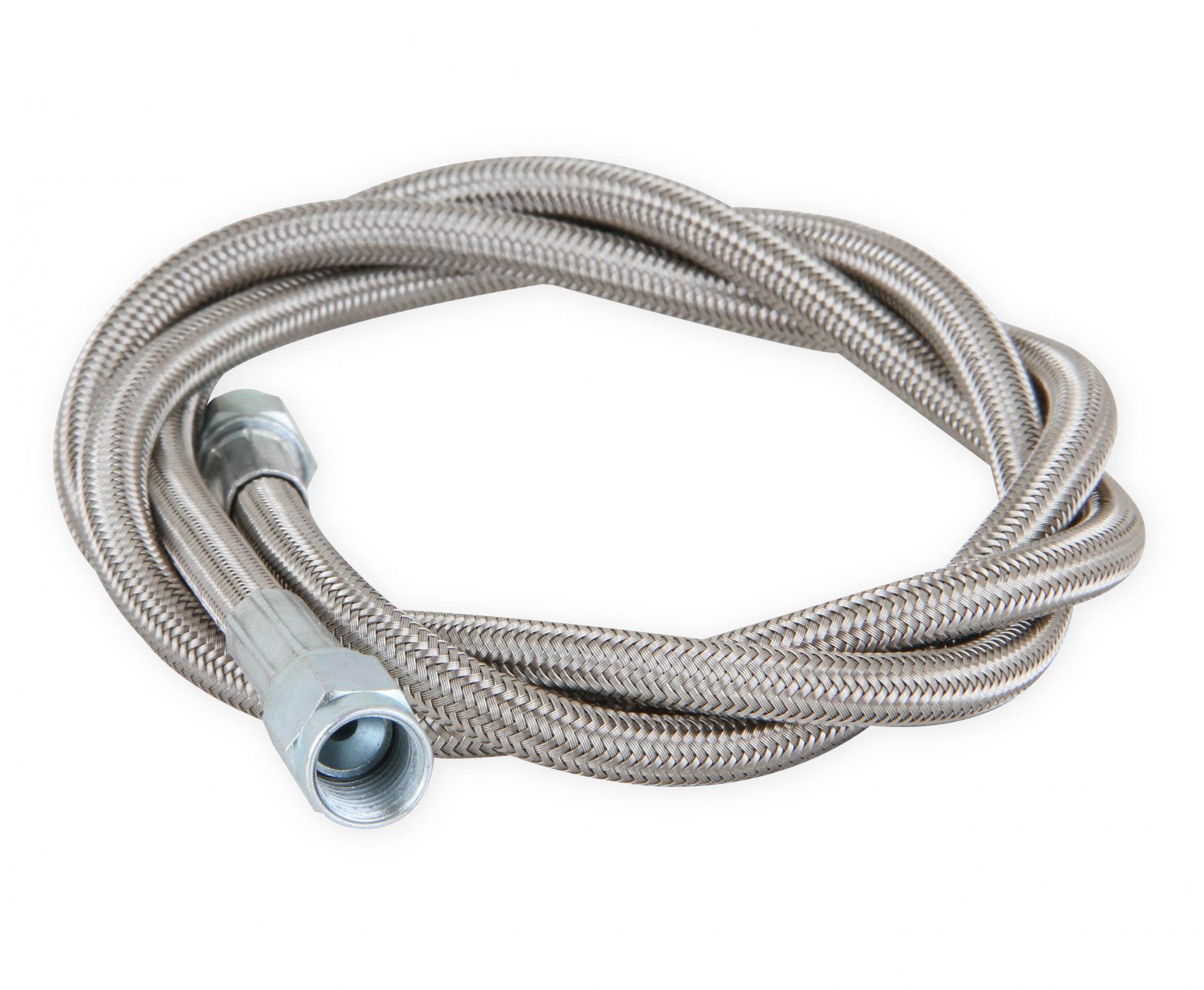

• Feed Line Length: 36 Inch
• Finish: Natural
• Fitting Size: 3AN
• Fittings Included: Yes
• Material: Steel and Brass
• Shims Included: No
• Warranty: Manufacturer's Limited 90 Day Warranty

Application Summary:

• 2010-2019 Chevrolet Camaro LS SS LT 2SS 1SS ZL1 1LT Z/28 RS RS Edicion Especial RS Fire Edition (Liter: 3.6, 6.2, 7.0, 2.0 & Engine(ci): 217, 376, 427, 222, 122 & Cylinder: 6, 8, 4 & Block: V, L)
• 2005-2013 Chevrolet Corvette Base Z06 427 Limited Edition Z06 ZR1 Grand Sport Z06 Carbon 427 (Liter: 6.0, 7.0, 6.2 & Engine(ci): 364, 427, 376 & Cylinder: 8 & Block: V)
• 2005-2017 Ford Mustang GT Base GT Equipado GT Base Shelby GT500 Lujo Shelby GT Shelby GT500KR Bullitt Shelby Boss 302 ST V6 Shelby GT350 Shelby GT350R EcoBoost Premium GT Premium EcoBoost GT 50 Years Limited Edition V8 (Liter: 4.6, 4.0, 5.4, 5.0, 3.7, 5.8, 5.2, 2.3 & Engine(ci): 281, 245, 330, 302, 227, 355, 315, 140 & Cylinder: 8, 6, 4 & Block: V, L)

Associated Comments: These bearings require a minimum 3/4 inch or larger bore master cylinder.
