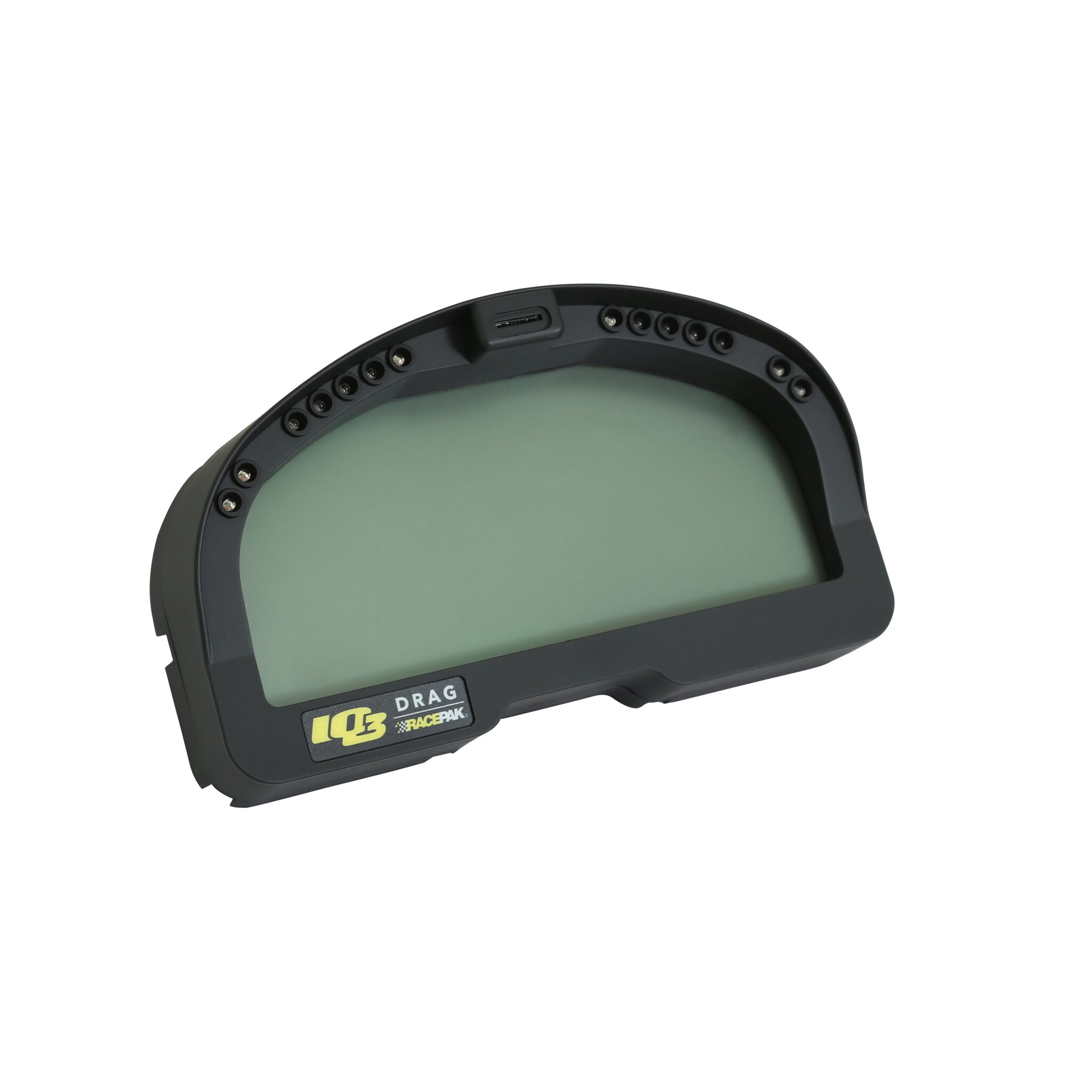

The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger.

The IQ3 Drag Logger Dash mergest Racepak's V-Net single cable sensor technology and with a fully programmable display, creating a complete data center.

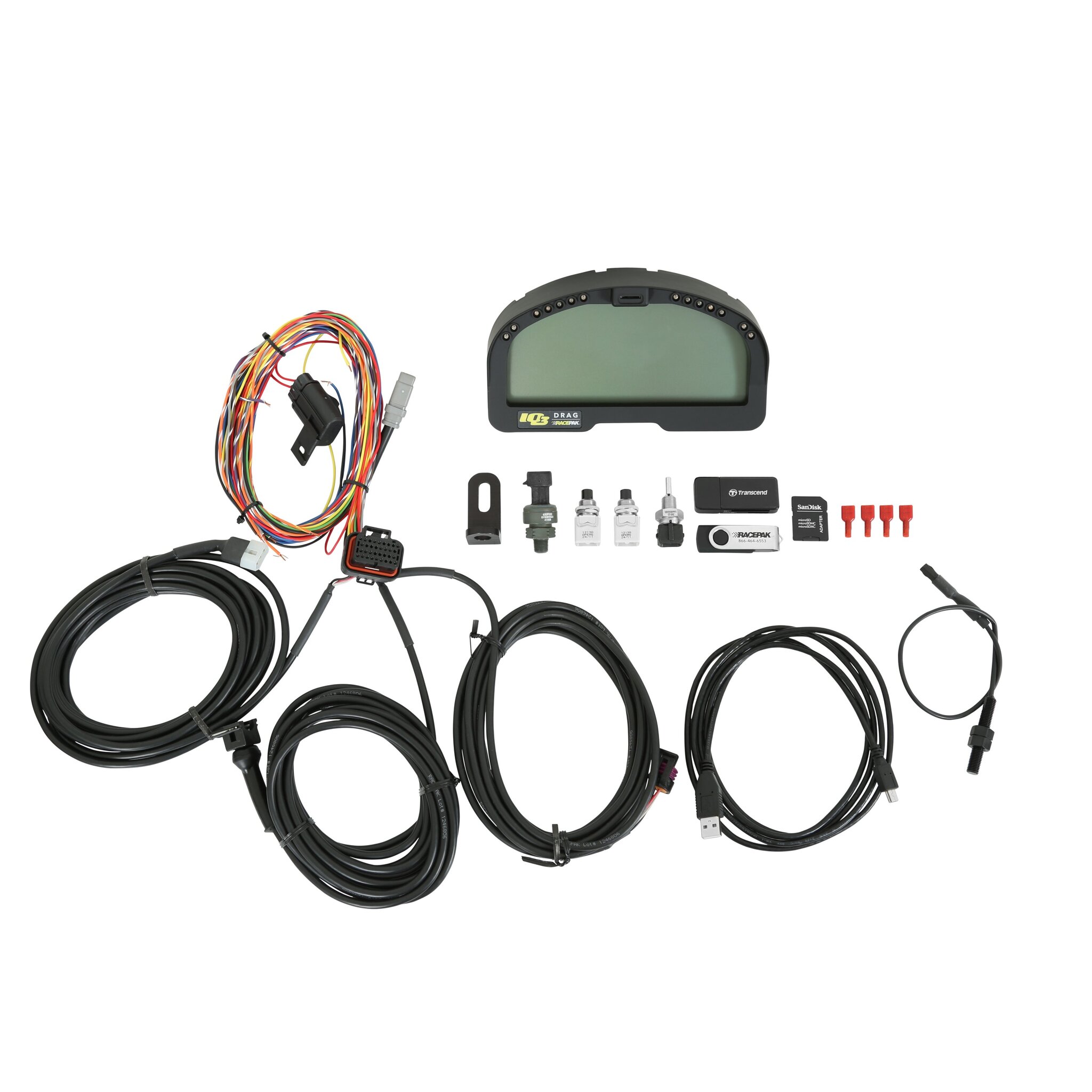

The full feature dash bundle kit includes the ability to monitor Engine RPM, Driveshaft RPM, Trans Brake Release, Water Temp, Oil Press, Battery volts. The datalink II software included with IQ3 Drag dash provides professional-level data analysis capabilities, but in an easy to learn format.

Features & Benefits:

• Channels: 12 Total - 6 internal and option to expand 6 V-Net digital/analog
• Sample Rate: V-Net records data up to 100 frames per second
• Memory: up to 16GB microSD card
• 6 external V-Net sensor inputs with optional high speed logging modules
• Displays up to 28 inputs via 4 pages of microSD Memory.
• Blue Backlight for a stylish look.
• Gear Indicator
• Eight user definable alarms with on screen warning text and lights
• User defined 5 character sensor input names
• User defined shift points
• Shielded, low glare display for sunlight viewing
• Metric and English units for multiple display options.

Start Recording: Utilized to start a recording when either button is held for +5 seconds. REC will be displayed in dash display area during recording.

The Grey/White wire can be utilized for this function by default.

Compatible ECU systems include the following:
AEM V2/EMS-4
Big Stuff 3
Electromotive TECGT
EMS EM-Tech ECU
Emtron ECU
FAST XFI
Fuel Tech (200,250,300,350,500v1,500v2, 600)
Holley Dominator
InjPro
Life Racing F88
Link G4+ Series
MaxxECU
MEFI-4B
MegaSquirt-III (DIY Autotune)
MicroTech
MoTeC CAN (Data set 3)
MSD Atomic LS
MSD Atomic TBI
OBD-II (2008 and later - for vehicles designed to be sold in the USA)
Pro EFI
User Configured (CAN bus knowledge required)

The IQ3D connects to these ECU systems using EFI adapter cables.

Details:

• Application: Drag Racing
• Model: 250-DS-IQ3D
• Operating Voltage: 12-18 volts
• Start Record Method: Momentary Button
• Emission Code: 5
