Street Instrumentation Has Never Been Easier!

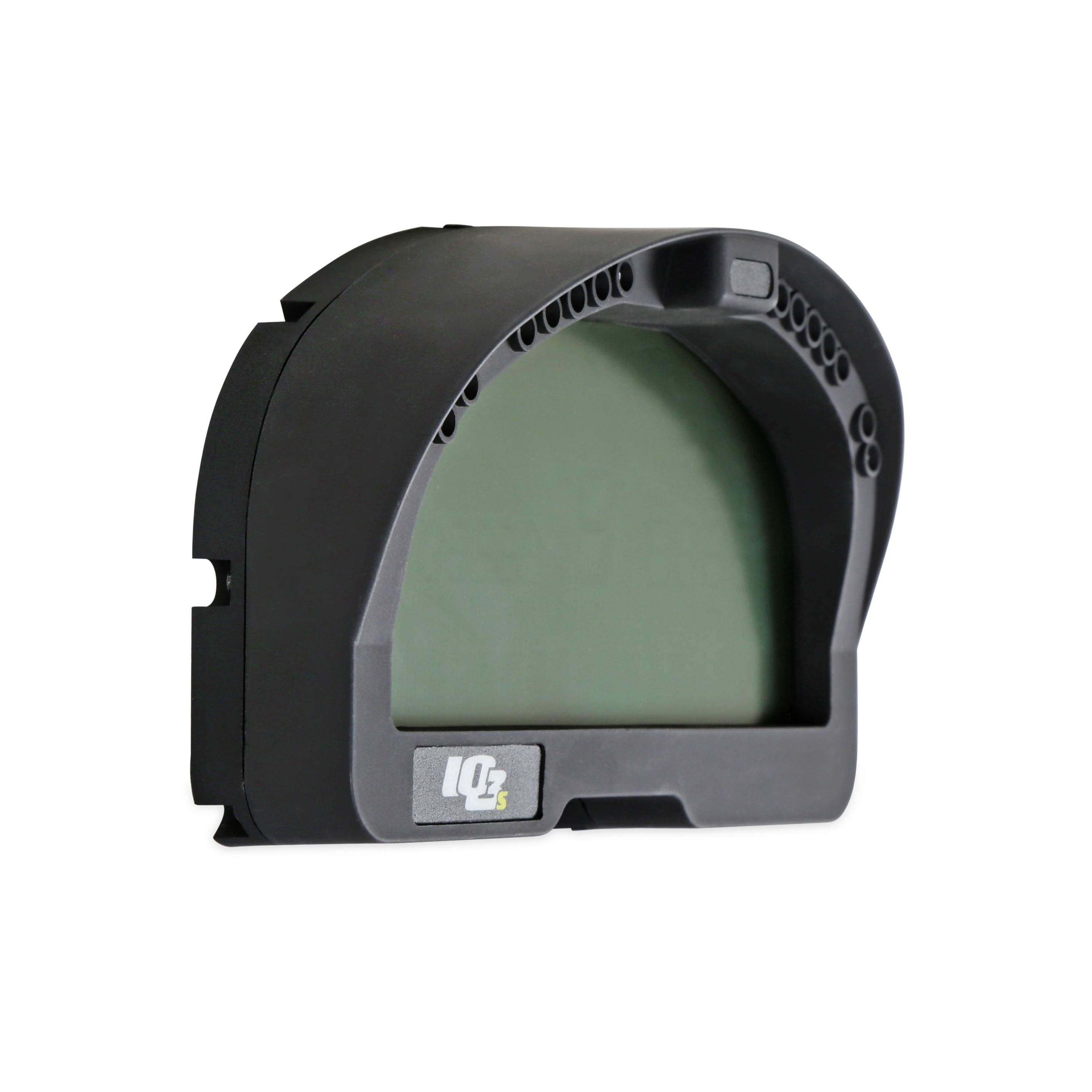

Racepak combines high-performance digital instrumentation with the indicators and warnings of a street dash into a compact and versatile product. Based on a rugged, race-proven design, the IQ3S street dash offers the easy to install convenience of a single unit, while capable of interfacing with over 20 aftermarket EFI systems, OBD2 or up to 32 standalone remote sensors.

Instrumenting your street vehicle has never been easier.

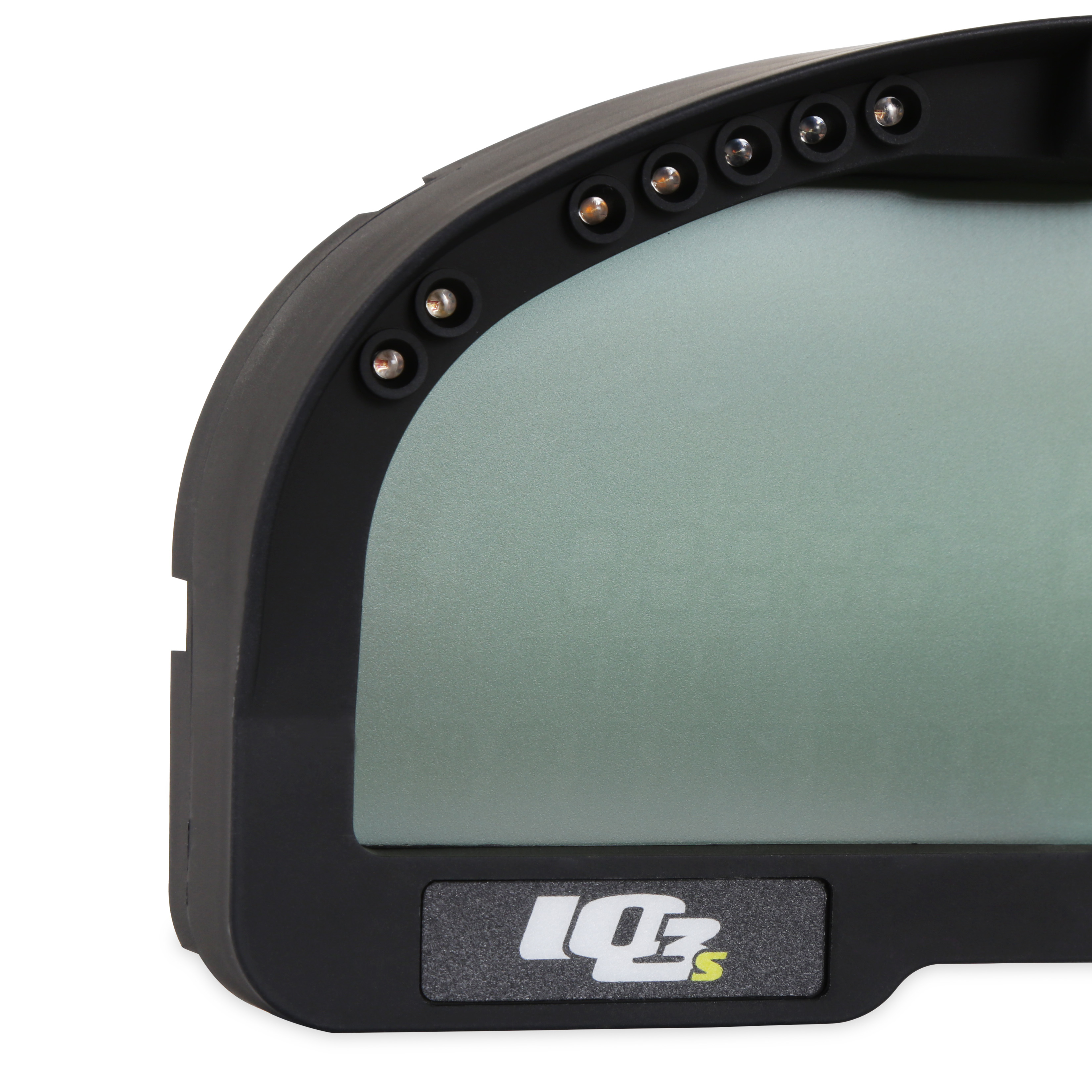

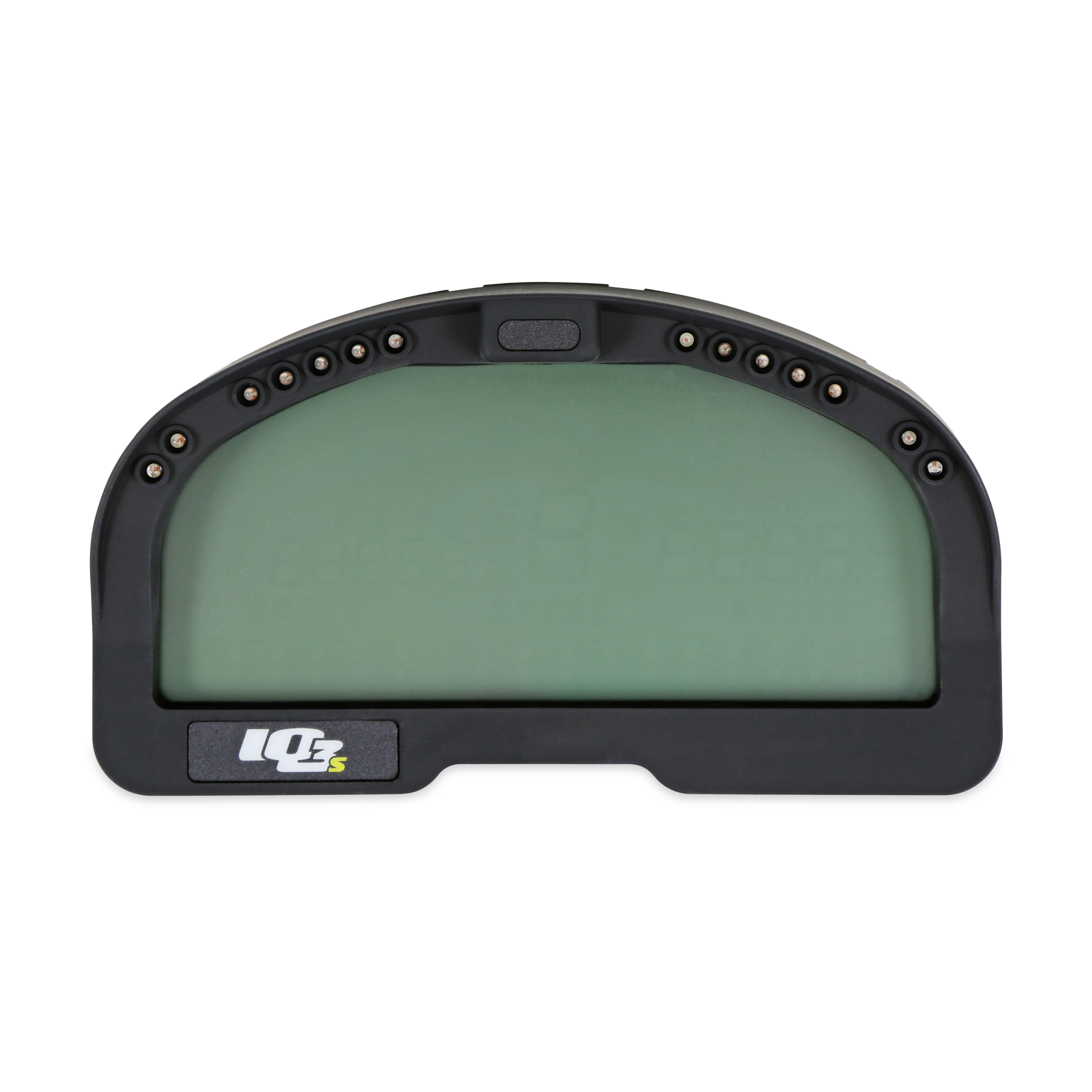

Racepak's IQ3S street dash solves all your high performance street instrumentation needs. Whether your latest project car is a late model engine swap, after market EFI equipped or traditional carburetor and distributor, the IQ3S street dash offers the easiest and most compact method to add late model digital instrumentation with the required street legal indicators, to your vehicle.

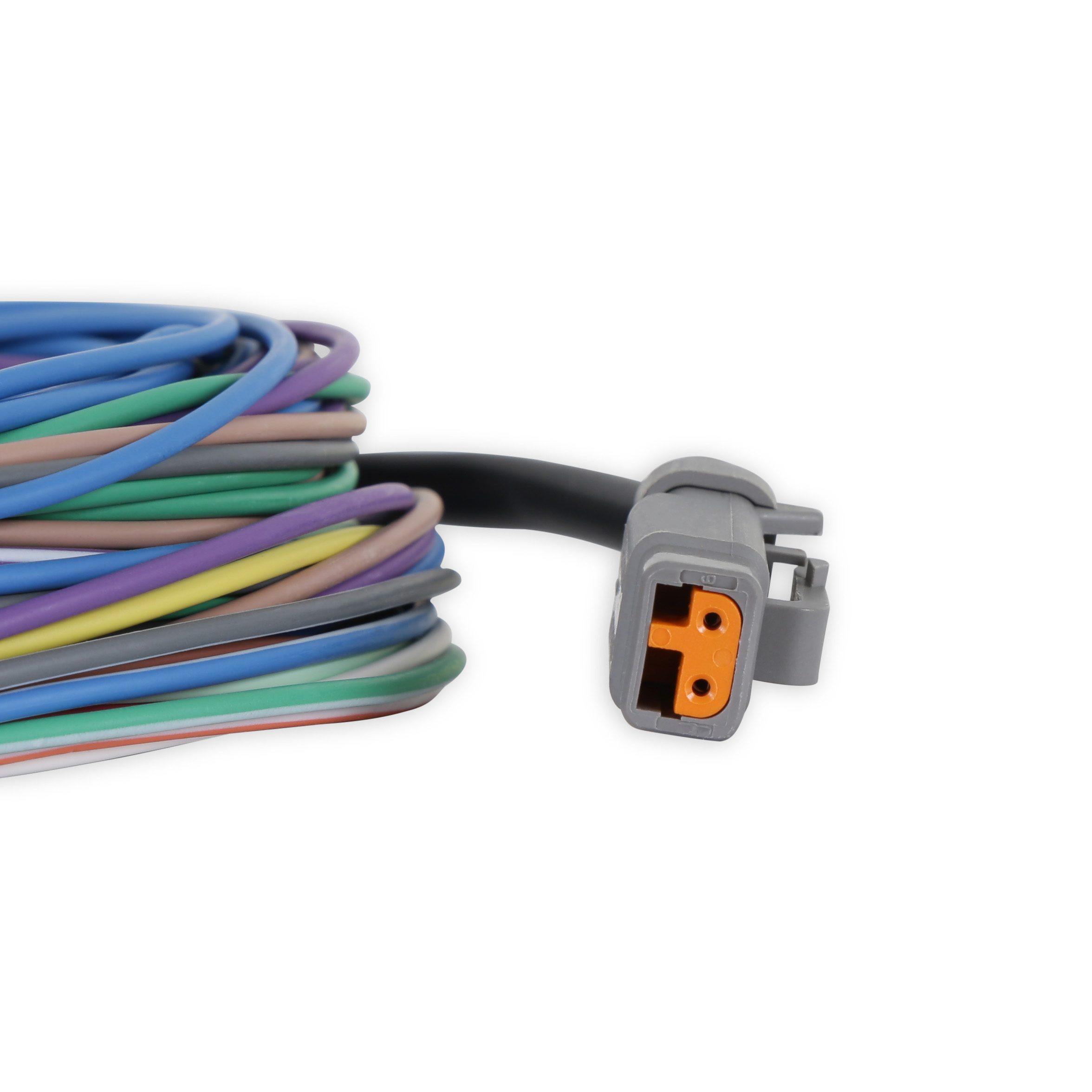

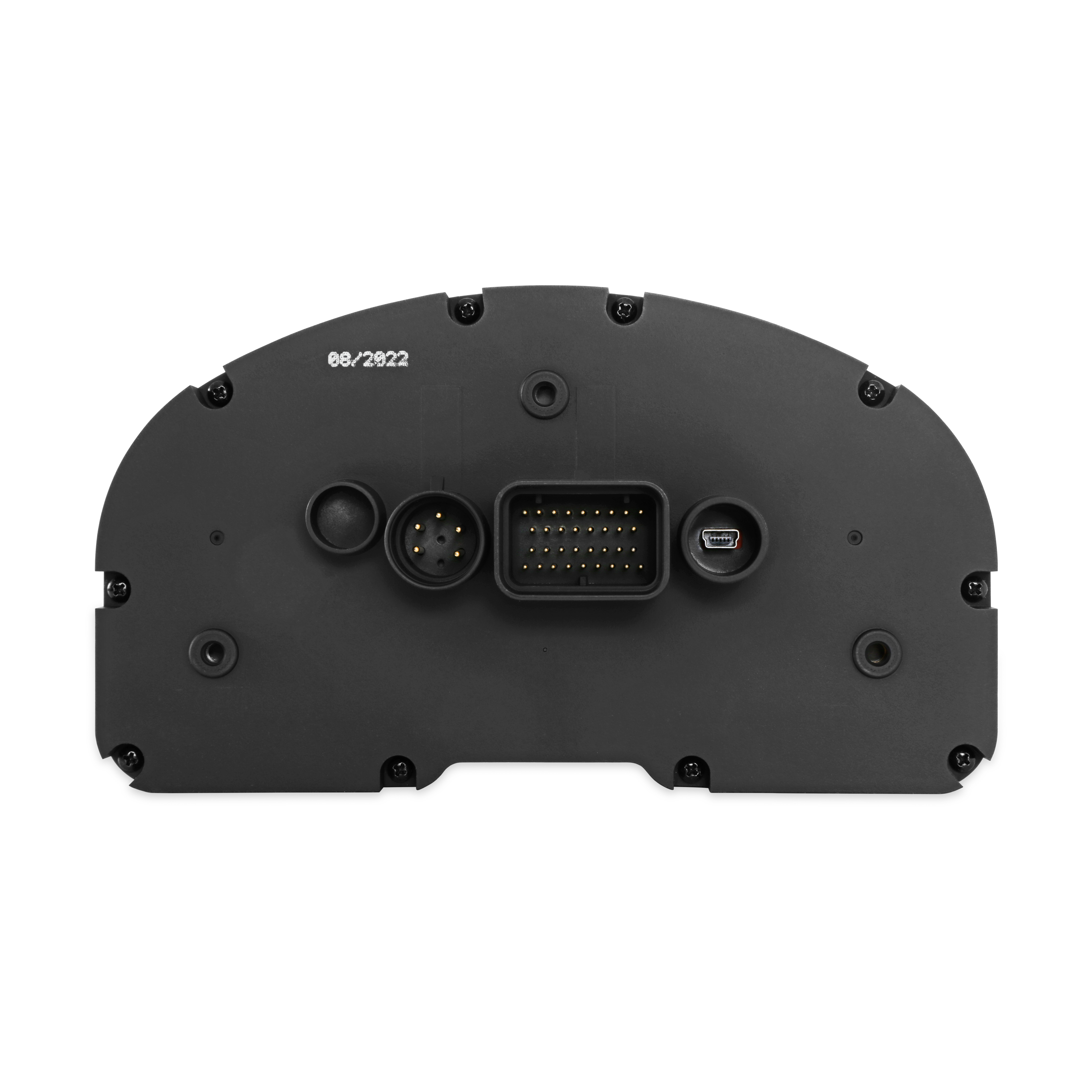

If you are looking to monitor additional information, Racepak's complete line of high performance motorsports style sensors can be easily connected to the rear of the IQ3S street dash, via Racepak's revolutionary plug and play, single cable V-Net sensors.

Compatible With 20+ EFI Systems

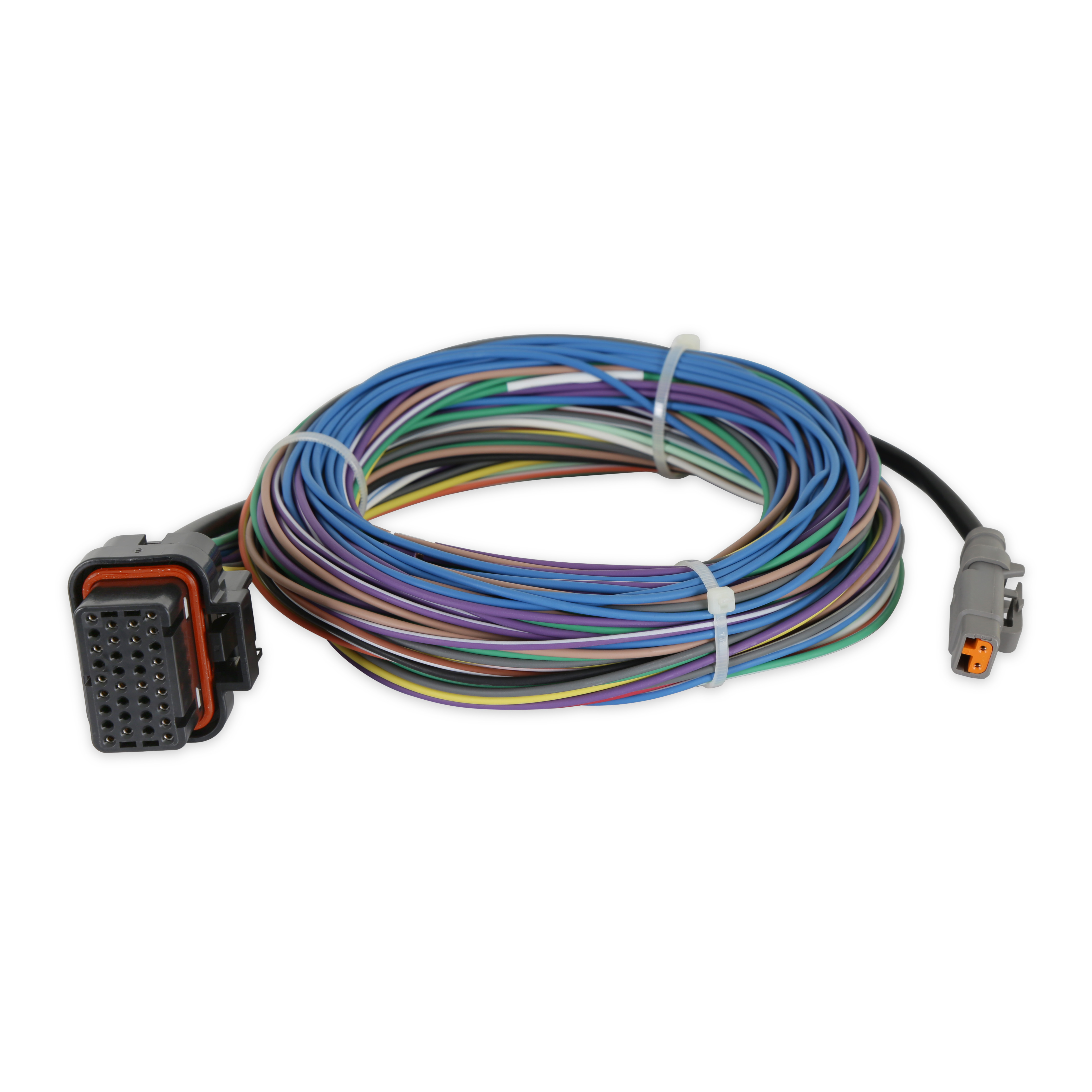

Easily stream and display information from over 20 aftermarket EFI units, to the IQ3S street dash via the optional EFI harness, while the included PC programming cable allows for complete display customization.

OBD2 Equipped Engines

Displaying information from 2008 and later OBD2 engines is a snap, with Racepak's optional OBD2 harness. Customize the IQ3S street dash with your choice of OBD2 information, utilizing a laptop and included programming cable.

Carbureted Engines

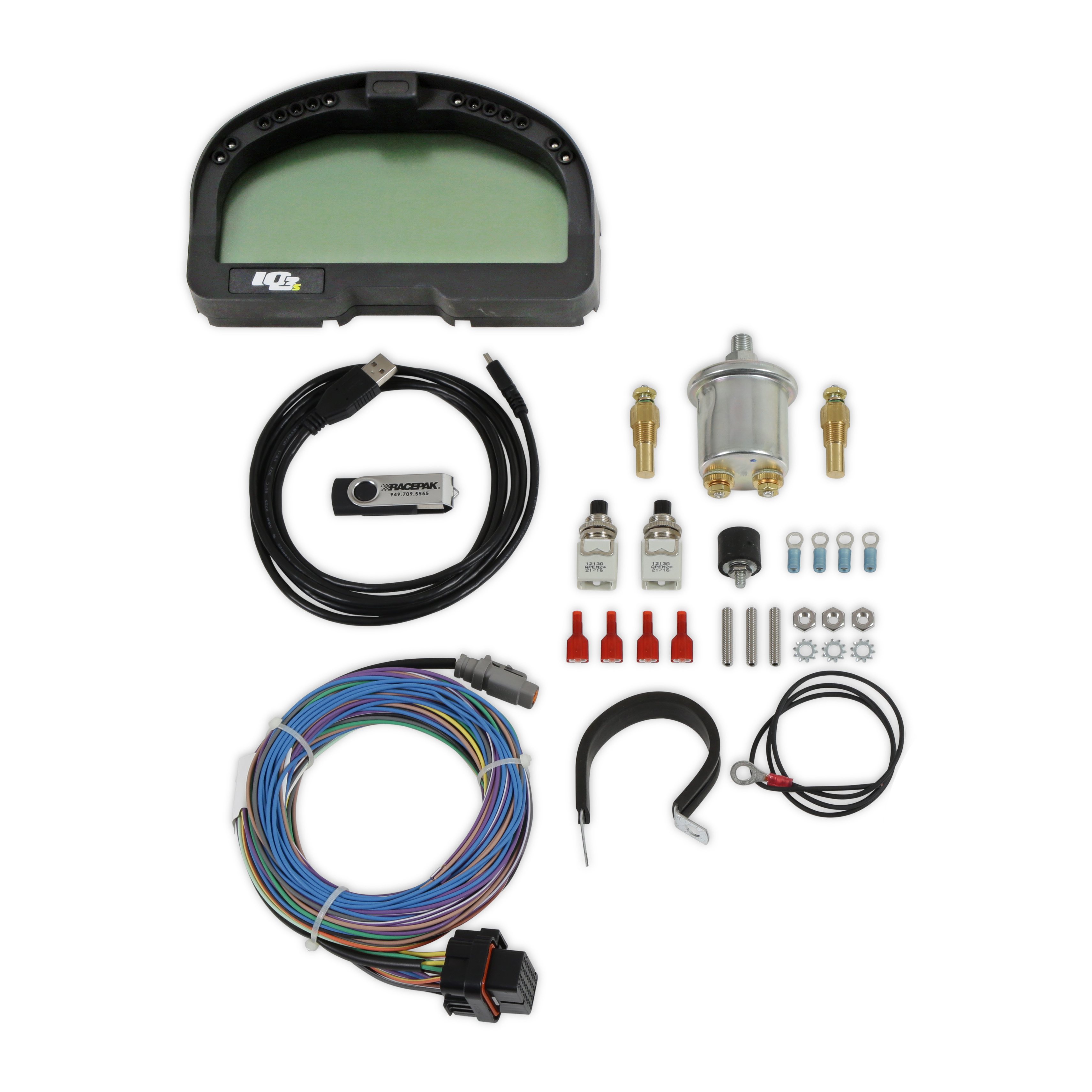

Standard ignition and carbureted engines can display data through the use of one pressure and two temp sensors included with the IQ3S street dash. Additional sensors available from Racepak.

Features & Benefits:

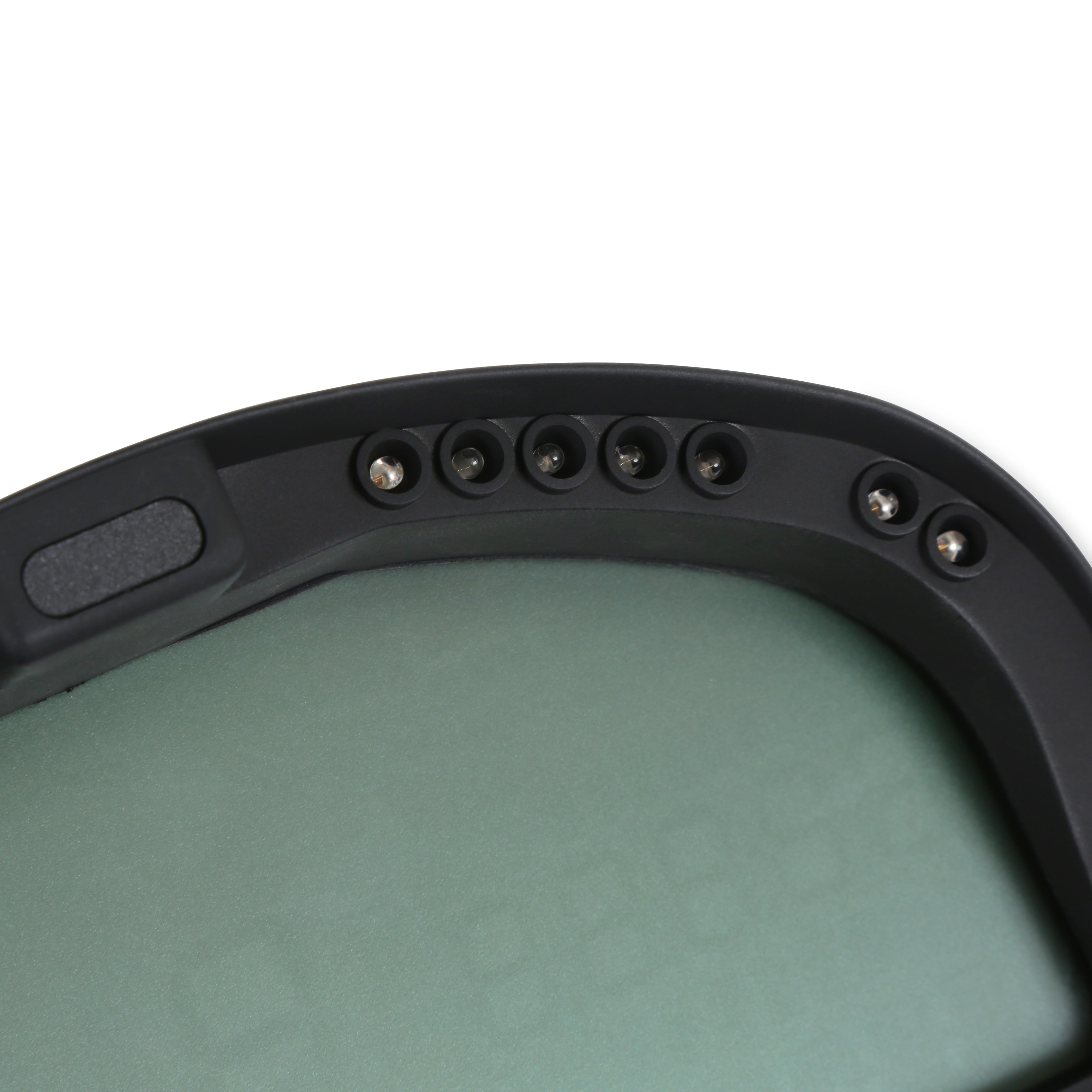

• Turn, High Beam, Park Indictors
• Odometer, Speedometer Fuel Level
• Oil Pressure
• Coolant Temperature
• Transmission Temperature
• Optional GPS Speed Inputs
• Internal input for OBD2 - 2008 later
• Fully User Programmable
• Four Display Screens
• Replaces Up To 24 Gauges
• Single Cable External Sensor Input
• Internal input for over 20 Aftermarket
• EFI systems

Compatible ECU systems include the following:
Holley Dominator EFI
AEM V2/EMS-4
Big Stuff 3
Electromotive TECGT
EMS EM-Tech ECU
Emtron ECU
FAST XFI
Fuel Tech (200,250,300,350,500v1,500v2, 600)
InjPro
Life Racing F88
Link G4+ Series
MaxxECU
MEFI-4B
MegaSquirt-III (DIY Autotune)
MicroTech
MoTeC CAN (Data set 3)
MSD Atomic LS
MSD Atomic TBI
OBD-II (2008 and later)
Pro EFI
User Configured (CAN bus knowledge required)

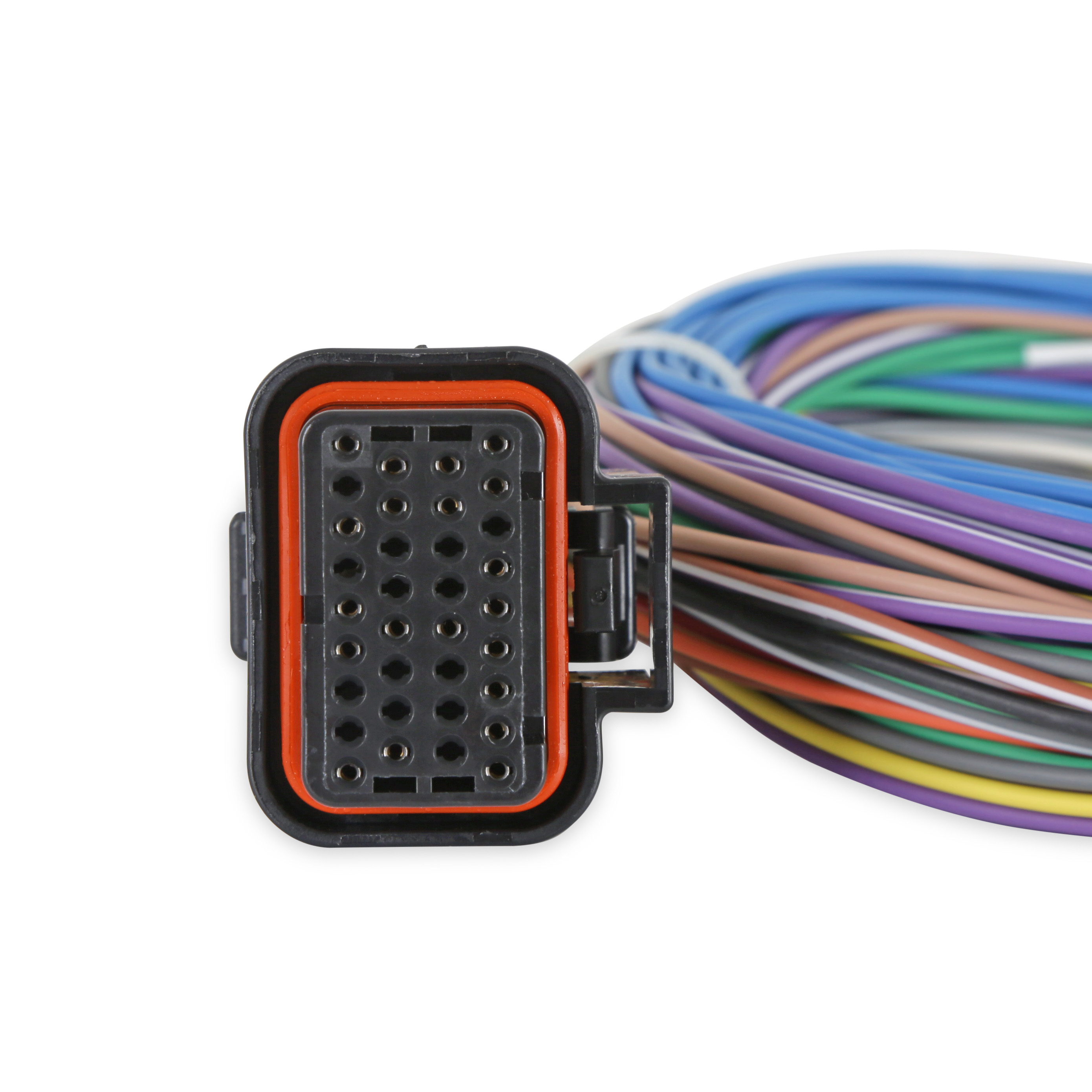

The IQ3s connects to these ECU systems using EFI adapter cables

Details:

• Application: Street
• Model: 250-DS-IQ3S
• Emission Code: 5
