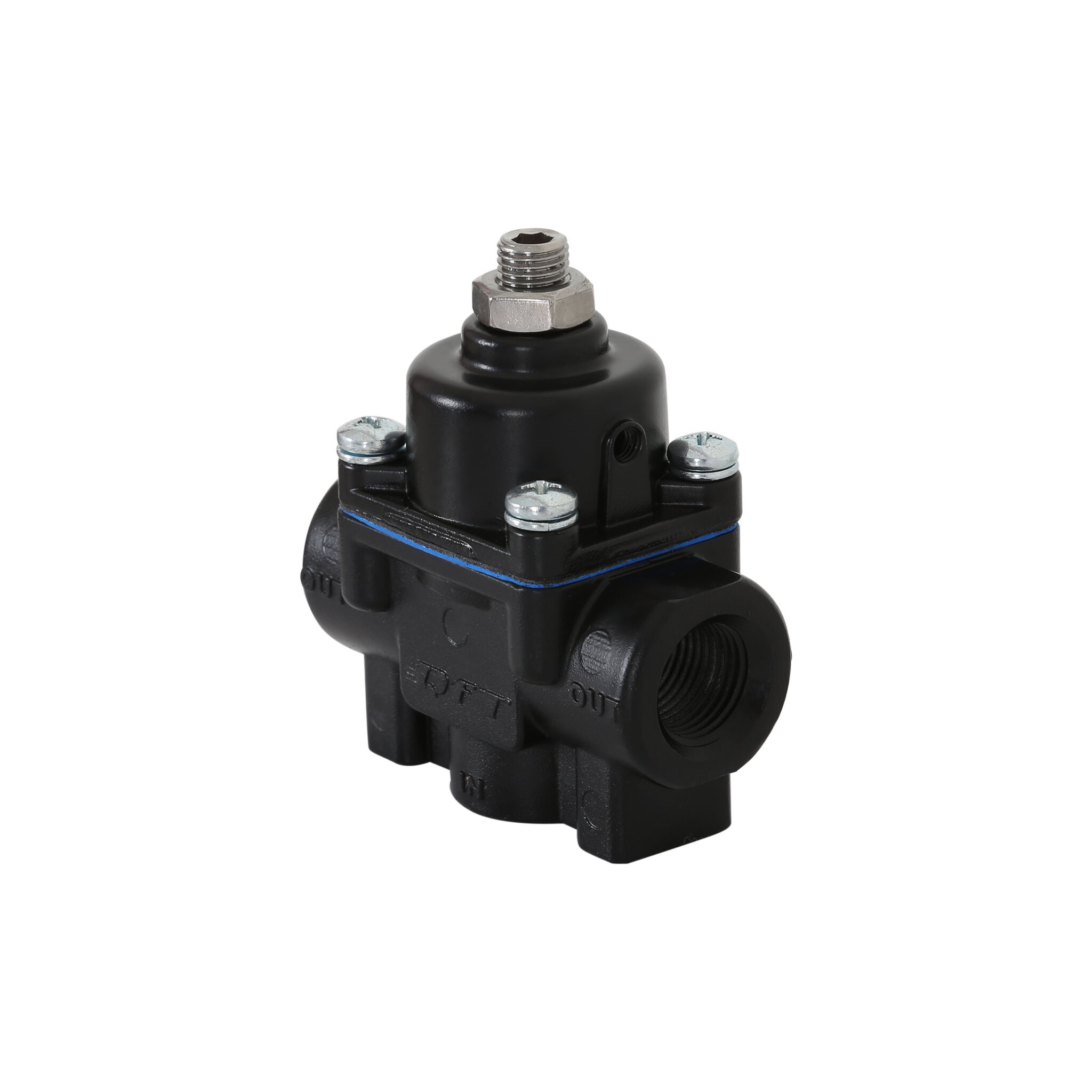

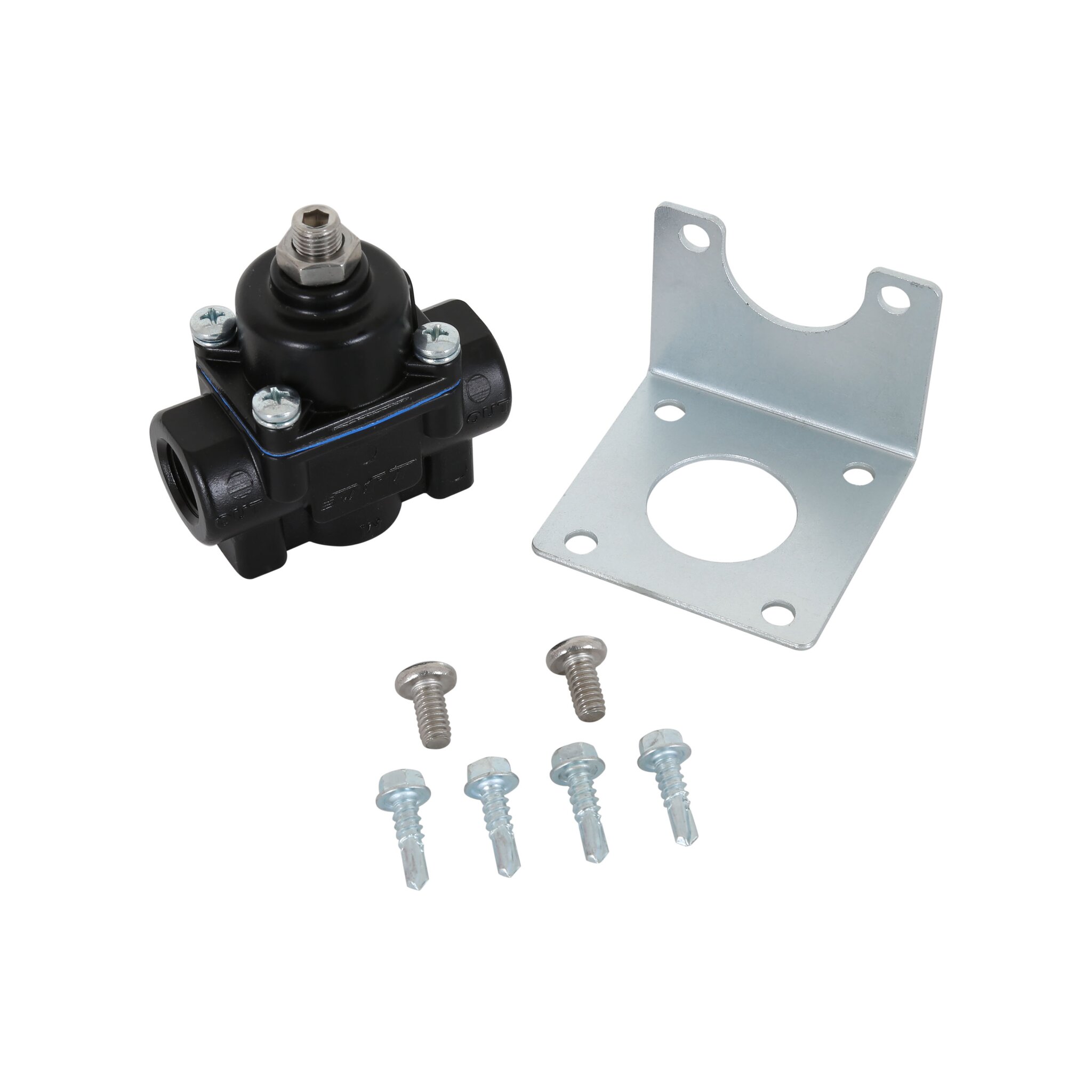

Pressure regulator with ball and stem activation and GFLT diaphragm. Designed for methanol fuel.

Features and Benefits:

• Supports up to 600 HP engines
• Black anodized housing
• Adjustable from 4.5 - 9 PSI; Preset to 6.5 PSI
• 3/8 Inch NPT Ports
• .250 Inch (1/4 Inch) restriction

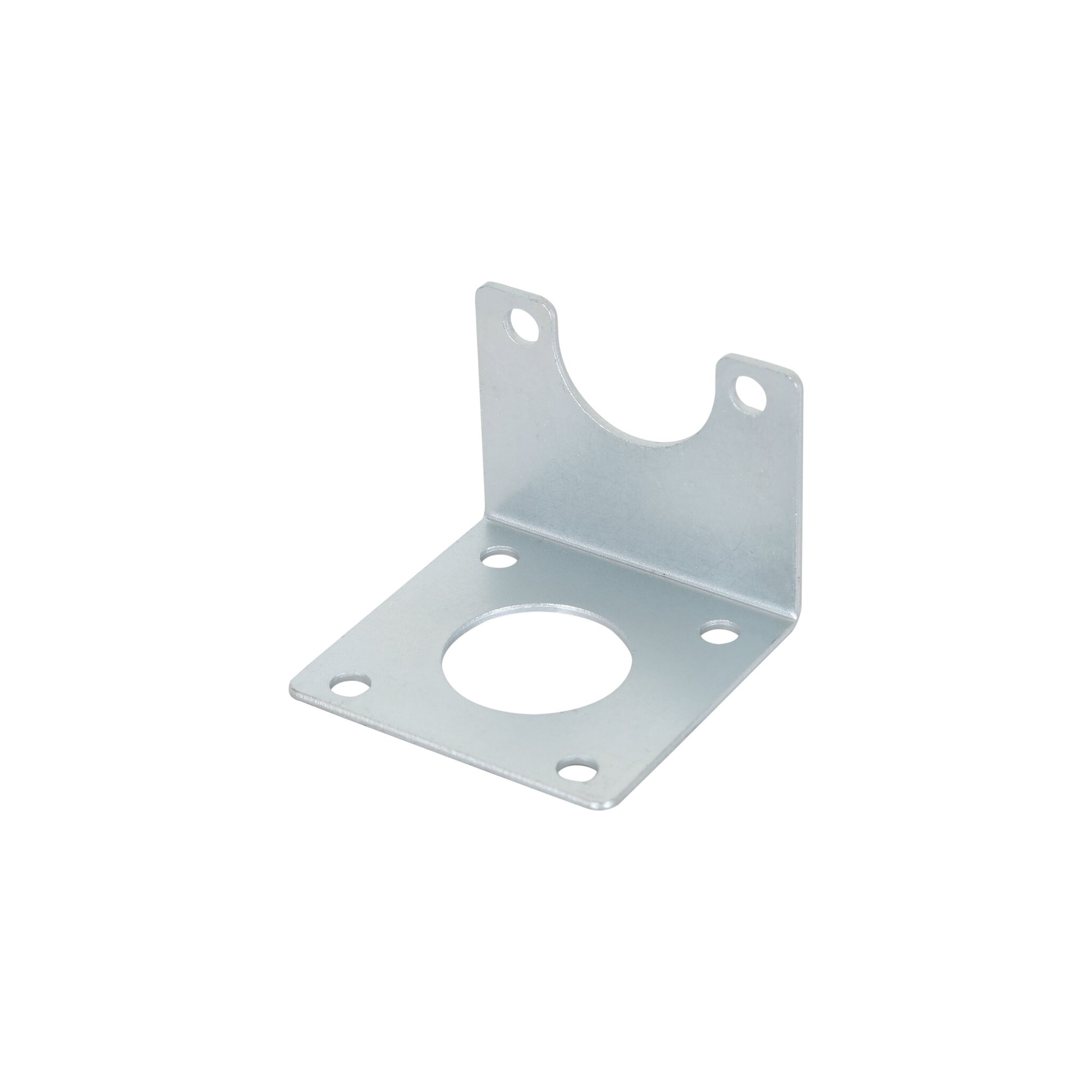

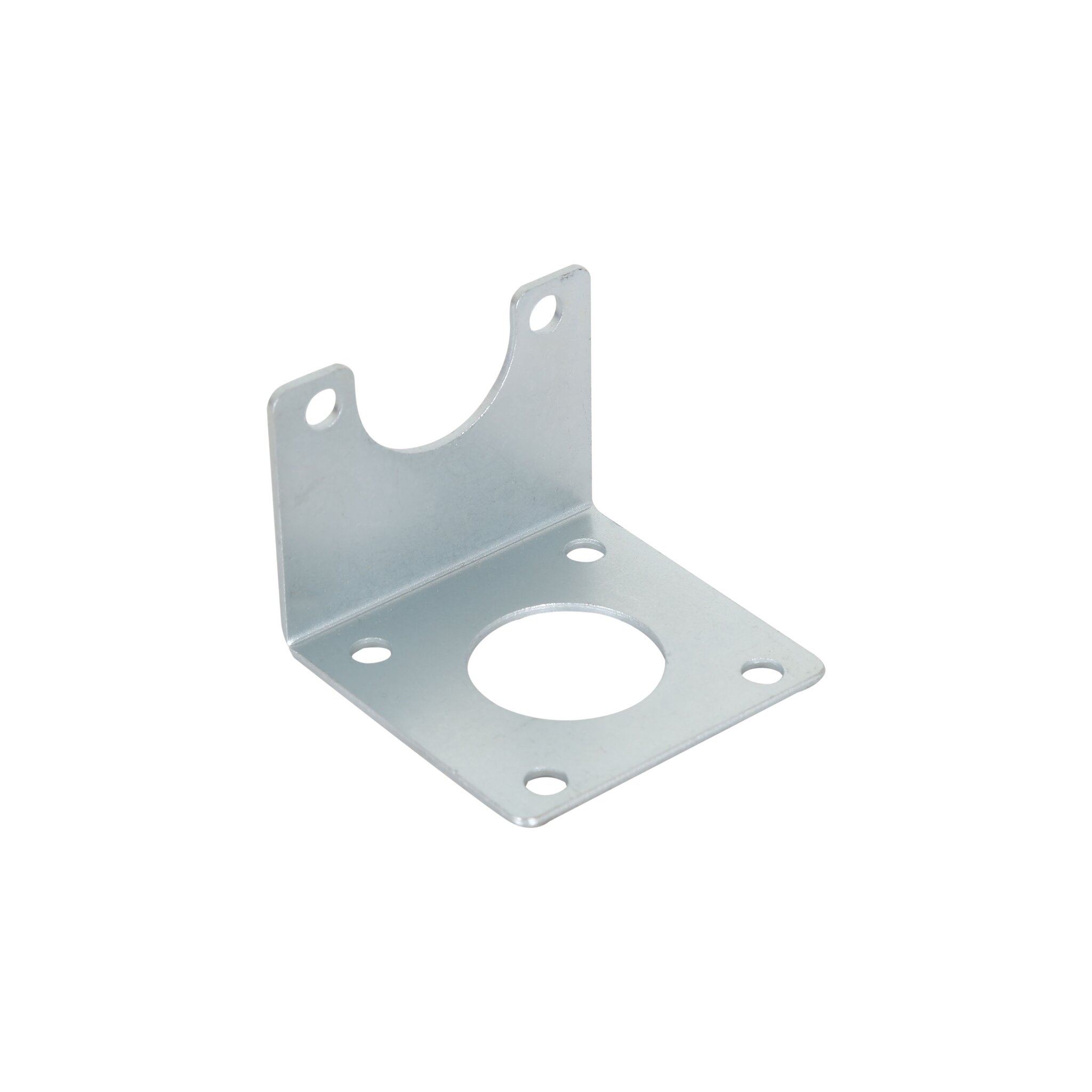

• Includes mounting bracket
• Includes an 1/8 Inch NPT port for manifold reference
• Boost Reference 1-1

Details:

• Grade Type: Performance
• Material: Aluminum
• Color: Black
• Fuel Type: Gasoline
• Adjustable: Yes
• Inlet Type: NPT
• Outlet Type: NPT
• Maximum Pressure: 9 Pounds per Square Inch
• Mounting Bracket Included: Yes
• Gauge Included: No
• Minimum Pressure: 4.5 Pounds per Square Inch
• Outlet Port Quantity: 2
• Inlet Gender: Female
• Inlet Port Diameter: 3/8 Inch
• Inlet Port Quantity: 1
• Outlet Gender: Female
• Outlet Port Diameter: 3/8 Inch
• Warranty: Manufacturer's Limited 90 Day Warranty
