LS Valley Cover with Oil Fill Natural Billet for GM LS1/LS6 Applications, Trussed Design Holley
LS Valley Cover with Oil Fill Natural Billet for GM LS1/LS6 Applications, Trussed Design Holley
LS Valley Cover with Oil Fill Natural Billet for GM LS1/LS6 Applications, Trussed Design Holley
LS Valley Cover with Oil Fill Natural Billet for GM LS1/LS6 Applications, Trussed Design Holley
LS Valley Cover with Oil Fill Natural Billet for GM LS1/LS6 Applications, Trussed Design Holley
LS Valley Cover with Oil Fill Natural Billet for GM LS1/LS6 Applications, Trussed Design Holley
LS Valley Cover with Oil Fill Natural Billet for GM LS1/LS6 Applications, Trussed Design Holley
LS Valley Cover with Oil Fill Natural Billet for GM LS1/LS6 Applications, Trussed Design Holley
LS Valley Cover with Oil Fill Natural Billet for GM LS1/LS6 Applications, Trussed Design Holley
SKU
241-367-BBVL
List price
$308.95
Price
$273.95

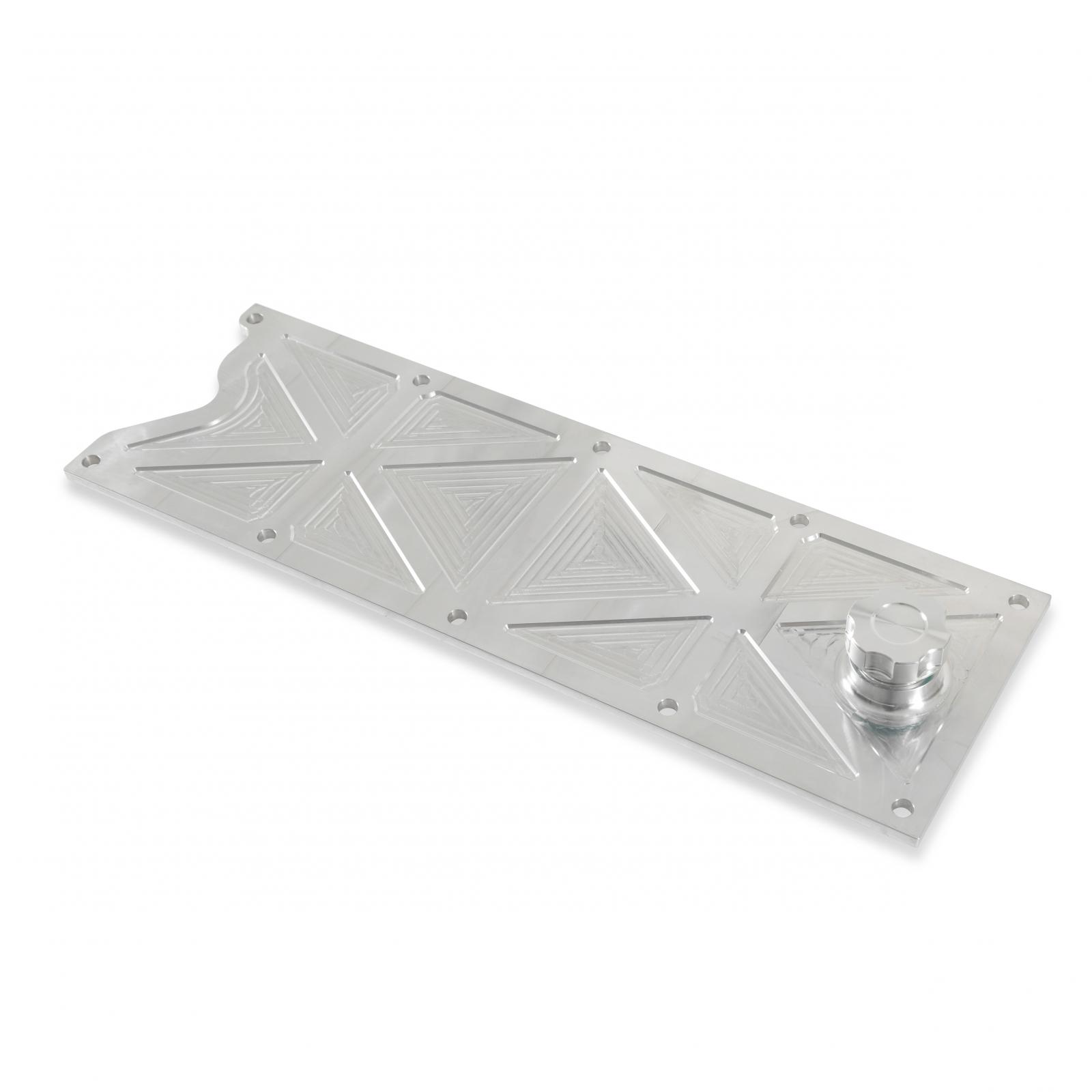

Holley's Ls valley covers with oil fill provisions are the latest addition to our expansive lineup of Ls engine dress up products. Machined from billet aluminum and featuring a modern, trussed design with an integrated oil fill neck and billet oil fill cap, these Ls valley covers are the perfect upgrade for your Ls engine if you are looking for a subtly custom touch.

These valley covers are machined smooth on the underside, allowing for the elimination of Displacement-On-Demand (Dod), and instead features an ample gasket sealing surface and provisions for re-installing the oil pressure sensor if necessary. Each valley cover is custom machined for either LS1/LS6 (10 bolt) or LS2/LS3/LS7/Lsx (11 bolt) patterns and Holley / Mr.

Gasket offers all the necessary gaskets and upgraded hardware options to complete your installation. The new Ls valley covers with oil fill provisions are available in three unique finishes: natural billet (clear anodized for protection), polished billet, and black anodized billet.

Features and Benefits:

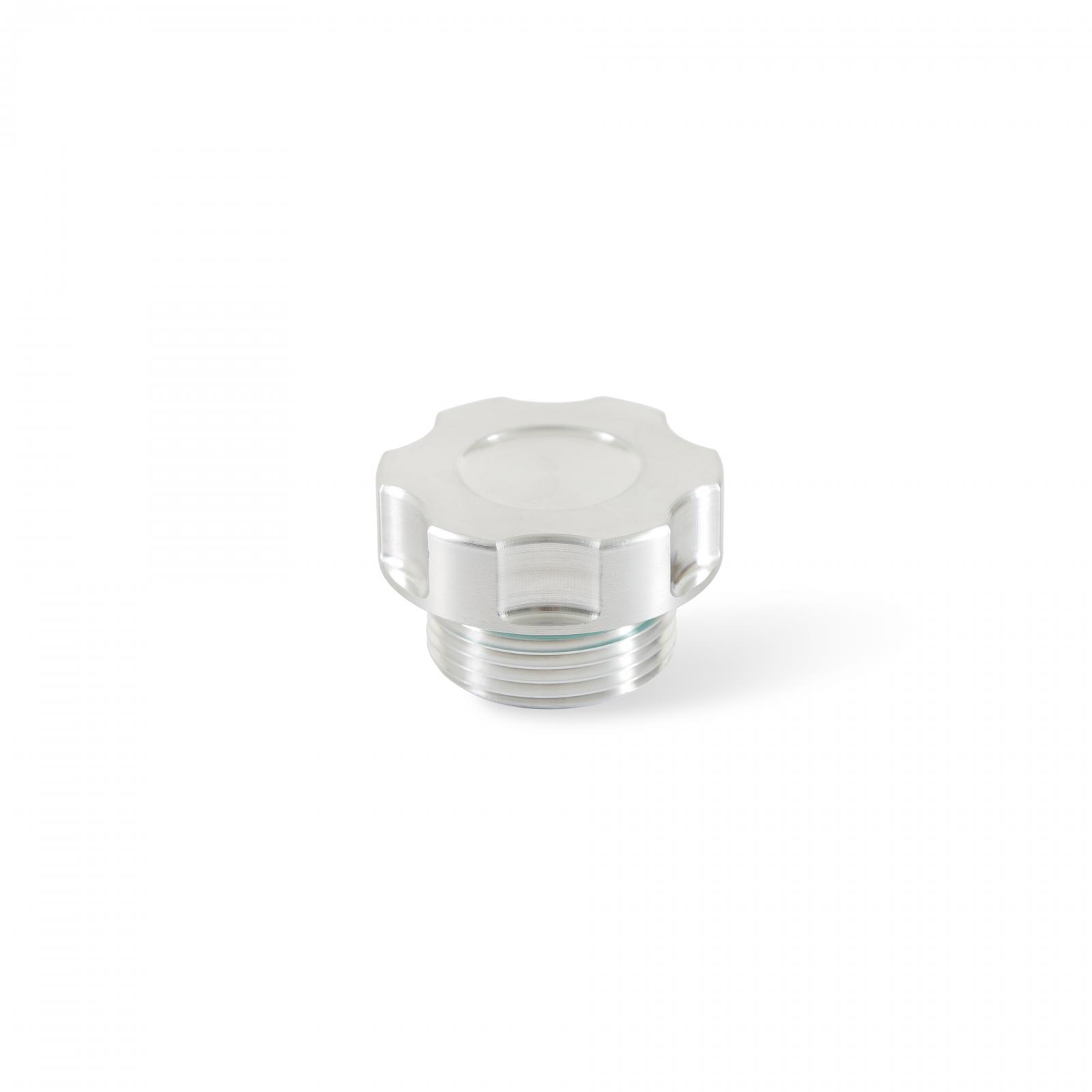

  • Precision manufactured from billet aluminum with a modern, race inspired, trussed design Available for Gm LS1/LS6 (10 bolt) and LS2/LS3/LS7/Lsx (11 bolt) engine applications Features integrated oil fill neck with included billet aluminum oil fill cap (Holley P/N 241-225) Smooth underside allows for elimination of Displacement-On-Demand (Dod) and offers ample gasket sealing surface All necessary gaskets and upgraded mounting hardware sold separately Available in three unique finishes: natural billet (clear anodized for protection), polished billet, and black anodized billet

Associated Comments:

  • If using for Dod Delete you must drill and tap all 8 oil port holes 1/8-NPT and install plugs in the oil ports or loss of oil pressure will occur.

Details:

  • Application: LS1/LS6
  • Baffle Included: No
  • Bolt Pattern: 11
  • Configuration: One Piece
  • Finish: Natural
  • Gaskets Included: No
  • Grade Type: Performance
  • Logo: Trussed, No Logo
  • Material: Billet Aluminum
  • Mounting Hardware Included: No
  • Mounting Hole Quantity: 10
  • Oil Fill Cap Included: Yes
  • Style: Trussed
  • Warranty: Manufacturer's Limited 90 Day Warranty
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
1997-2006 Chevrolet Corvette
1998-2002 Pontiac Firebird Formula
1998-2002 Pontiac Firebird Trans Am
1998 Chevrolet Corvette Indianapolis 500 Pace Car
1998-2002 Chevrolet Camaro Z28
1998-2002 Chevrolet Camaro Z28 SS
1999-2004 GMC Sierra 2500 SLE
1999-2006 Chevrolet Silverado 1500 LS
1999-2007 GMC Sierra 1500 SLE
1999-2004 Chevrolet Silverado 2500 LS
1999-2002 GMC Sierra 2500 SL
1999-2004 GMC Sierra 2500 SLT
1999-2003 GMC Sierra 1500 SL
1999-2004 Chevrolet Silverado 2500 LT
1999-2007 Chevrolet Silverado 1500 LT
1999-2007 GMC Sierra 1500 SLT
1999-2005 Chevrolet Silverado 2500
1999-2005 Chevrolet Silverado 1500
2000-2006 Chevrolet Tahoe LS
2000-2006 GMC Yukon XL 1500 SLE
2000-2006 GMC Yukon XL 2500 SLE
2000-2006 GMC Yukon SLE
2000-2001 Chevrolet Suburban 1500
2000-2006 Chevrolet Suburban 1500 LS
2000-2006 Chevrolet Suburban 2500 LS
2000-2006 GMC Yukon XL 2500 SLT
2000-2001 Chevrolet Suburban 2500
2000-2006 Chevrolet Suburban 1500 LT
2000-2006 Chevrolet Suburban 2500 LT
2000-2006 Chevrolet Tahoe LT
2000-2006 GMC Yukon XL 1500 SLT
2000-2006 GMC Yukon SLT
2000-2001 Chevrolet Tahoe
2001-2004 Chevrolet Corvette Z06
2001-2006 GMC Sierra 3500 SLE
2001-2006 Chevrolet Silverado 3500 LT
2001-2006 Chevrolet Silverado 2500 HD LS
2001-2006 Chevrolet Silverado 3500 LS
2001-2007 Chevrolet Silverado 2500 HD LT
2001-2006 GMC Sierra 3500 SLT
2001-2002 GMC Sierra 3500 SL
2001-2002 GMC Sierra 2500 HD SL
2001-2003 GMC Sierra 1500 HD SLT
2001-2007 GMC Sierra 2500 HD SLT
2001-2007 GMC Sierra 2500 HD SLE
2001-2005 Chevrolet Silverado 2500 HD
2001-2006 GMC Yukon Denali
2001 GMC Sierra 1500 C3
2001-2002 Chevrolet Silverado 2500 Cheyenne
2001-2003 GMC Sierra 1500 HD SLE
2001-2006 GMC Yukon XL 1500 Denali
2001-2005 Chevrolet Silverado 3500
2002-2005 GMC Sierra 2500 HD
2002-2004 GMC Sierra 2500
2002 Chevrolet Avalanche 1500 LS
2002-2005 GMC Sierra 1500
2002-2006 Chevrolet Avalanche 1500
2002-2004 Chevrolet Silverado 1500 WT
2002-2006 Cadillac Escalade
2002-2005 GMC Sierra 3500
2002 Chevrolet Avalanche 1500 LT
2002-2003 Chevrolet Avalanche 1500 On Road Edition
2002-2007 GMC Sierra 1500 WT
2002-2003 Chevrolet Avalanche 1500 North Face
2002-2006 Cadillac Escalade EXT
2002-2006 Chevrolet Avalanche 1500 Z71
2002 GMC Sierra 1500 HT
2002-2006 GMC Sierra 1500 Denali
2003-2004 Chevrolet Trailblazer EXT North Face
2003 Chevrolet Avalanche 1500 WBH
2003-2006 Chevrolet Trailblazer EXT LT
2003-2006 Chevrolet Silverado 1500 SS
2003-2006 Chevrolet Suburban 1500
2003 Chevrolet Corvette 50th Anniversary Edition
2003-2005 GMC Envoy XL SLT
2003-2006 Chevrolet Tahoe Z71
2003 Chevrolet Corvette 50th Anniversary Edition Pace Car
2003-2005 GMC Envoy XL SLE
2003-2004 GMC Sierra 2500 WT
2003-2007 Hummer H2
2003-2007 GMC Sierra 2500 HD WT
2003-2005 GMC Savana 3500 SLE
2003-2005 Isuzu Ascender Limited
2003-2006 Chevrolet SSR
2003-2007 Chevrolet Express 3500
2003-2007 GMC Savana 1500
2003-2006 Cadillac Escalade ESV
2003 Isuzu Ascender
2003-2007 GMC Savana 2500
2003-2007 Chevrolet Express 2500
2003-2006 Chevrolet Trailblazer EXT LS
2003-2007 Chevrolet Express 1500 LS
2003-2007 Chevrolet Express 2500 LS
2003-2006 Isuzu Ascender LS
2003-2007 Chevrolet Express 3500 LS
2003-2007 Chevrolet Express 1500
2003-2007 GMC Savana 3500
2003-2007 Chevrolet Silverado 2500 HD WT
2003-2005 GMC Savana 1500 SLE
2003-2005 GMC Savana 2500 SLE
2004-2005 GMC Envoy XUV SLE
2004-2006 Chevrolet Suburban 1500 Z71
2004-2006 Pontiac GTO
2004-2006 Chevrolet Avalanche 1500 Z66
2004-2006 Cadillac CTS V
2004-2007 Buick Rainier CXL
2004-2005 Buick Rainier CXL Plus
2004 Chevrolet Silverado 2500 WT
2004-2006 GMC Sierra 3500 WT
2004 Chevrolet Silverado 3500 WT
2004-2005 GMC Envoy XUV SLT
2004-2006 Chevrolet Silverado 1500 Hybrid
2005-2006 GMC Sierra 1500 HD SLT
2005-2006 GMC Envoy Denali
2005-2007 Hummer H2 Adventure
2005 Saab 9-7x Arc
2005-2006 GMC Sierra 1500 HD SLE
2005-2006 GMC Envoy XL Denali
2005-2006 Chevrolet Avalanche 1500 LS
2005-2008 Pontiac Grand Prix GXP
2005-2006 GMC Sierra 1500 Hybrid
2005 Isuzu Ascender S
2005-2006 Chevrolet Avalanche 1500 LT
2005-2007 Hummer H2 Luxury
2006-2007 Chevrolet Silverado 1500 WT
2006-2008 Chevrolet Trailblazer SS
2006-2007 Chevrolet Monte Carlo SS
2006-2009 Chevrolet Impala SS
2006 Chevrolet Silverado 3500 WT
2006 Saab 9-7x 5.3i
2006-2007 GMC Savana 3500 LT
2006 GMC Sierra 1500 SL
2006-2007 GMC Savana 1500 LT
2006-2007 Chevrolet Express 3500 LT
2006-2008 Chevrolet Trailblazer LT
2006-2007 Chevrolet Trailblazer LS
2006-2007 GMC Savana 3500 LS
2006-2007 GMC Savana 1500 LS
2006-2007 Chevrolet Express 1500 LT
2006 Chevrolet Suburban 1500 LTZ
2006-2007 Chevrolet Express 2500 LT
2006 Chevrolet Tahoe
2006 GMC Yukon SL
2006 GMC Yukon XL 1500 SL
2006 GMC Sierra 2500 HD SL
2006 GMC Sierra 3500 SL
2007 Chevrolet Silverado 1500
2007 Chevrolet Silverado 3500 Classic LS
2007 Chevrolet Avalanche LS
2007 Chevrolet Silverado 2500 HD Classic LS
2007 GMC Savana 2500 LS
2007 Chevrolet Silverado 1500 Classic LS
2007 GMC Sierra 1500 Classic Denali
2007 Chevrolet Silverado 3500 HD WT
2007 GMC Sierra 1500 Classic Hybrid
2007 GMC Sierra 1500 Classic WT
2007 Chevrolet Silverado 3500 Classic WT
2007 GMC Sierra 3500 Classic WT
2007 GMC Sierra
2007 Chevrolet Silverado 1500 Classic WT
2007 GMC Sierra 3500 HD WT
2007 Chevrolet Silverado 2500 HD Classic WT
2007 GMC Sierra 2500 HD Classic WT
2007 Chevrolet Avalanche
2007 Chevrolet Silverado 1500 Classic Hybrid
2007 GMC Sierra 1500 Classic SL
2007 Chevrolet Silverado 1500 Classic SS
2007 GMC Sierra 3500 Classic SL
2007 GMC Sierra 2500 HD Classic SL
2007 GMC Sierra 1500 Classic SLE
2007 GMC Sierra 3500 HD SLE
2007 GMC Sierra 3500 Classic SLE
2007 GMC Sierra 1500 HD Classic SLE
2007 GMC Sierra 2500 HD Classic SLE
2007 Chevrolet Avalanche LTZ
2007 Chevrolet Silverado 3500 HD LTZ
2007 Chevrolet Silverado 2500 HD LTZ
2007 Chevrolet Silverado 1500 LTZ
2007 Chevrolet Silverado 1500 HD Classic LT
2007 Chevrolet Silverado 3500 HD LT
2007 GMC Savana 2500 LT
2007 Chevrolet Silverado 2500 HD Classic LT
2007 Chevrolet Avalanche LT
2007 GMC Sierra 1500 Classic SLT
2007 GMC Sierra 3500 HD SLT
2007 GMC Sierra 3500 Classic SLT
2007 GMC Sierra 1500 HD Classic SLT
2007 GMC Sierra 2500 HD Classic SLT
2007 Hummer H2 Special Edition
2007 Chevrolet Silverado 3500 Classic LT
2007 Chevrolet Silverado 1500 Classic LT
2008 Chevrolet Trailblazer
Installation Instructions
bd73470aaa3849a9023ae671b44273e4_0.pdf (189.05 KB)
Brand
Holley
Category
Engine and Components
Engine Oil Pan
Valley Pan Cover
Finish
Natural
Material
Billet Aluminum
Specs
Country of Origin: USA
Sold As: Each
UPC: 90127024577
Availability: Available
Style: Trussed
Universal: No
Bolt_pattern
11
Vehicle Type
Car
Core Charge
$0.00
