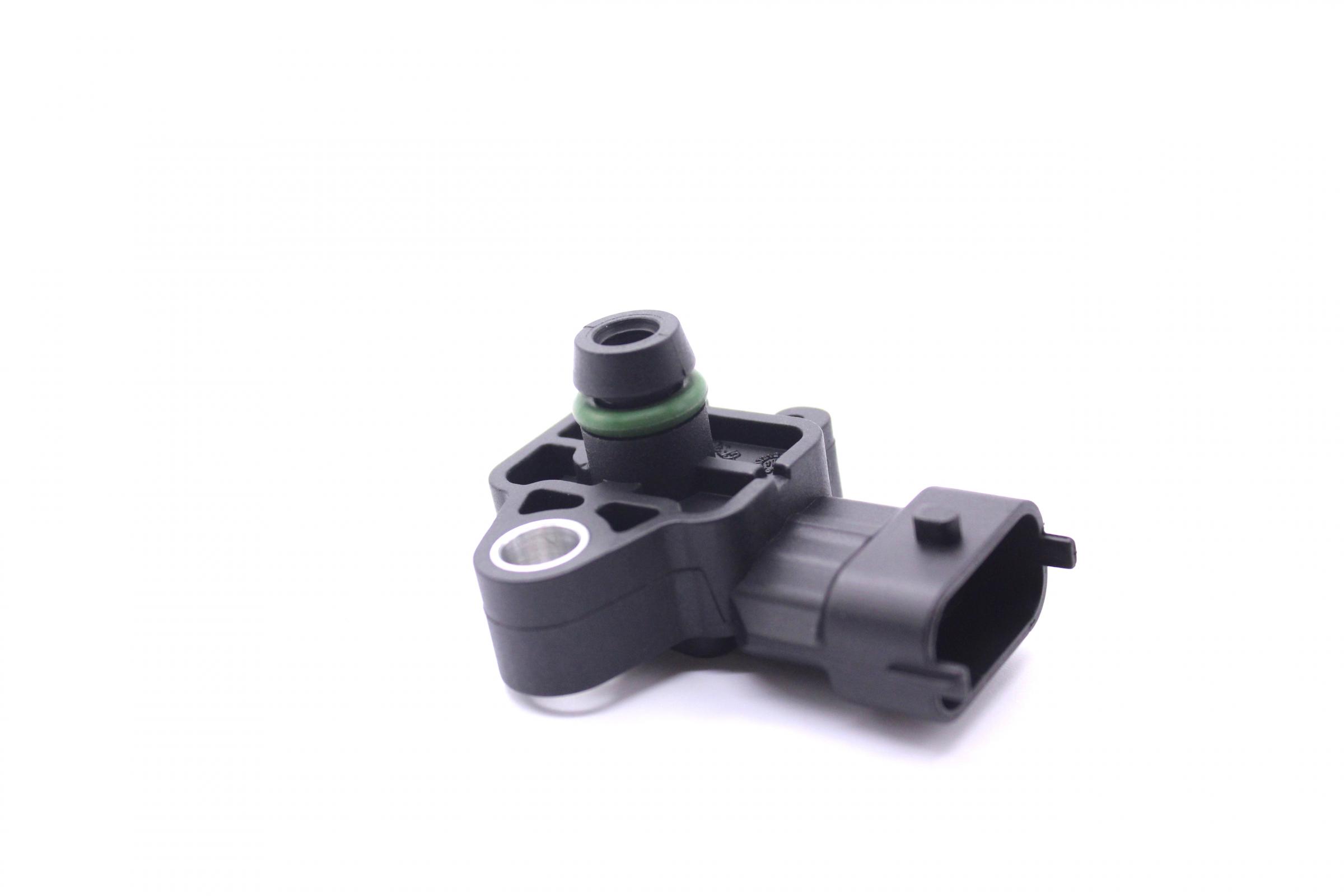

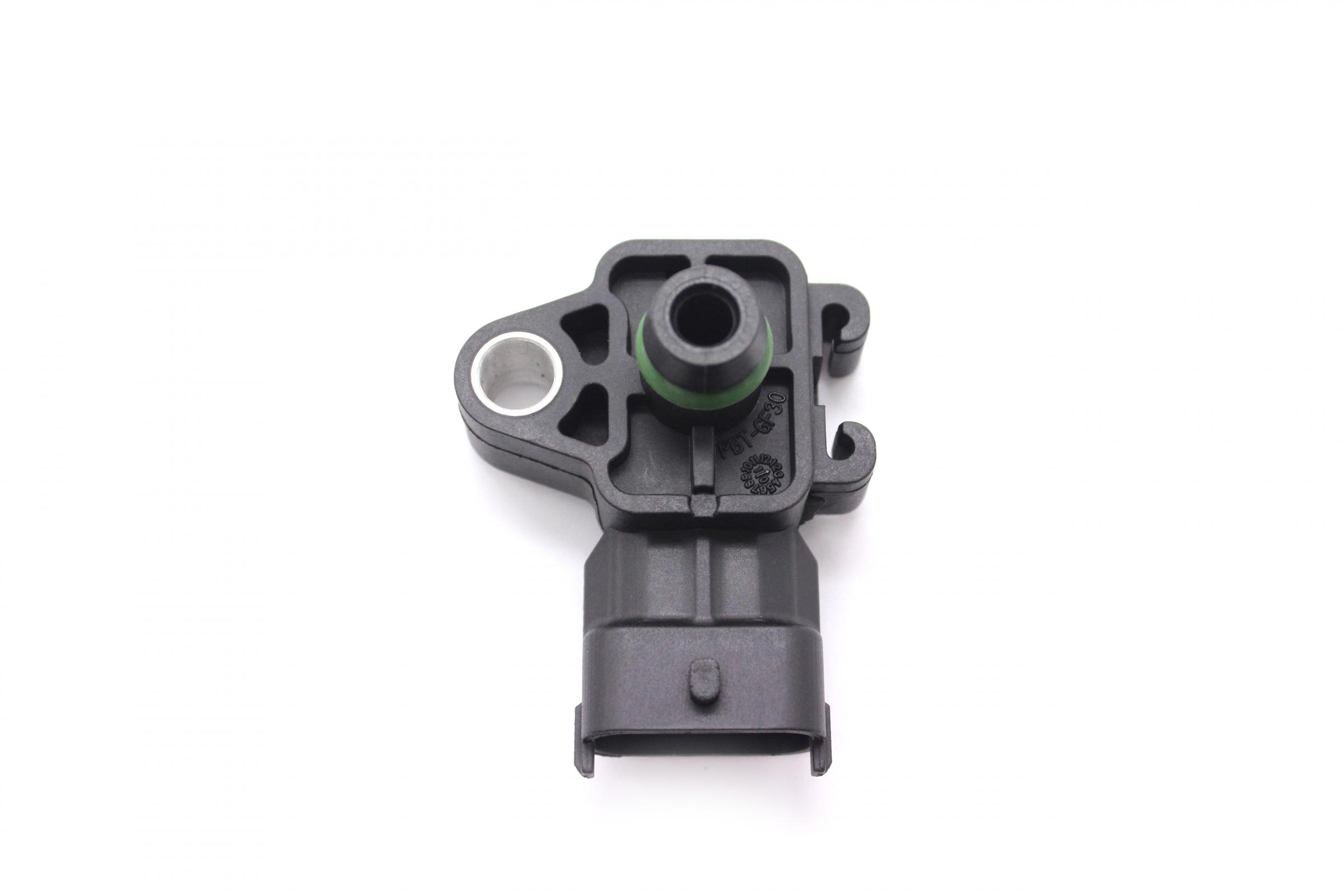

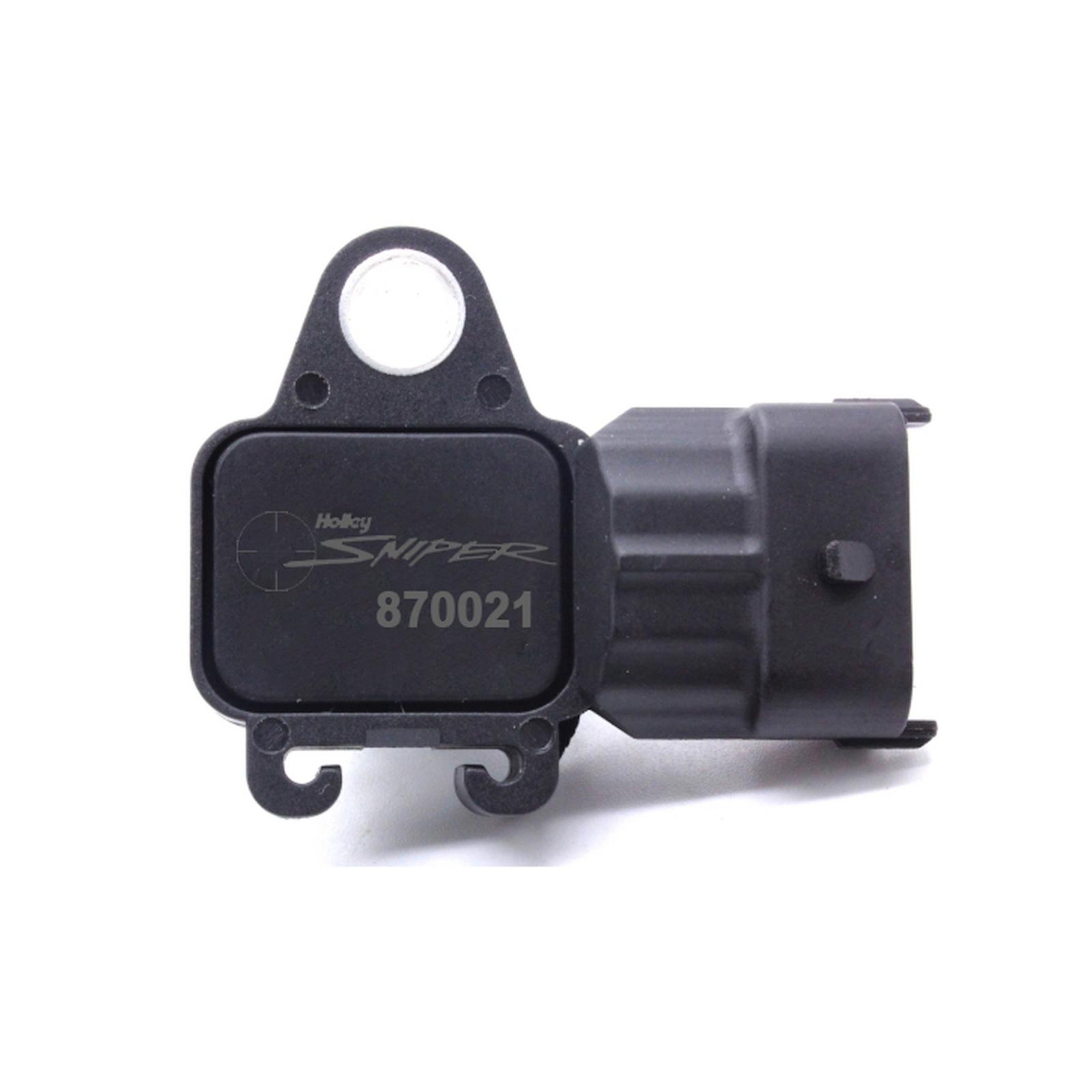

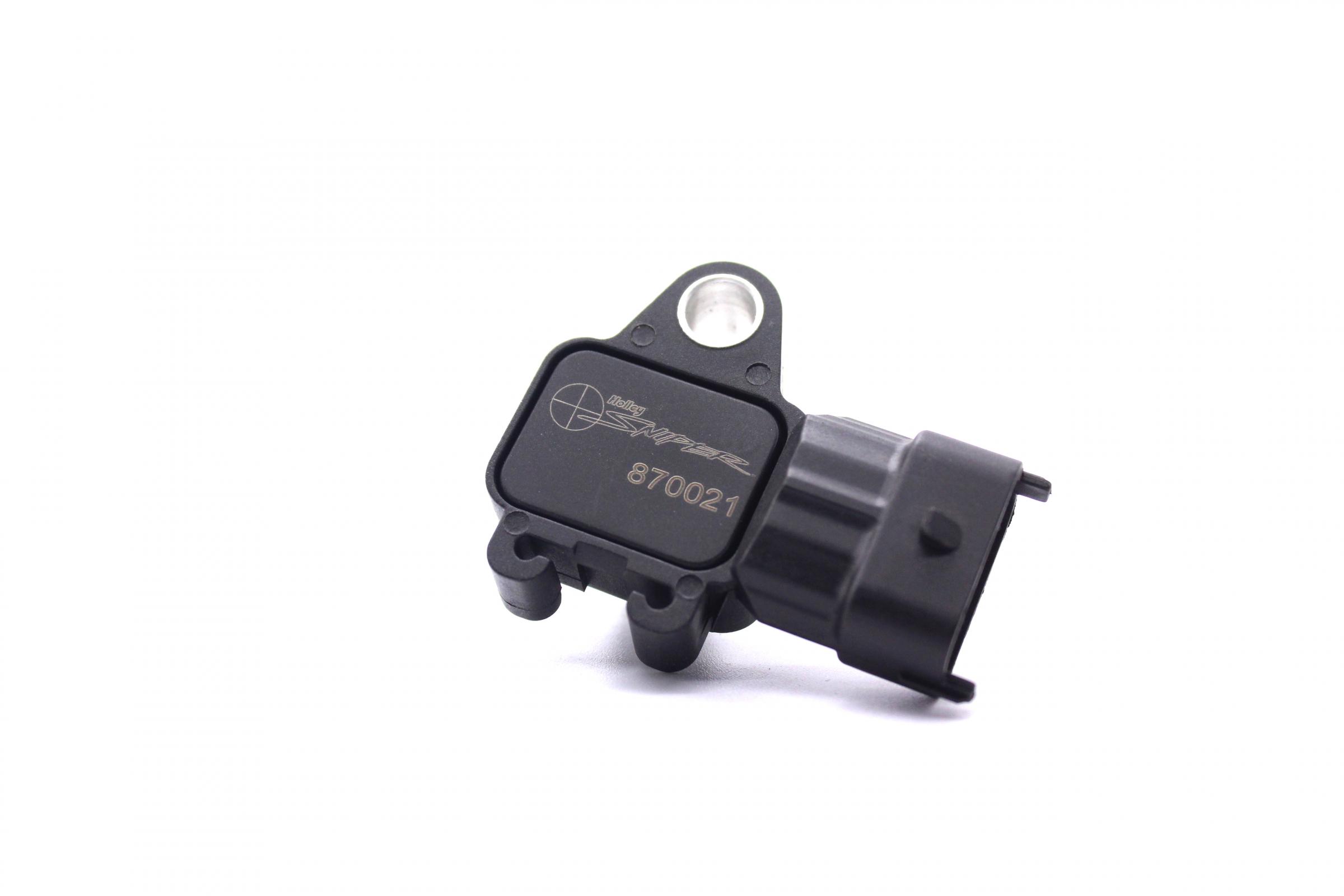

The pressure inside the intake manifold is an extremely important input to the ECU. This sensor will respond to changes in manifold pressures and relay the information to the ECU in the form of a voltage signal ranging from 1-5 volts.

This sensor will handle applications up to 25 lbs. of boost.

• Utilizes stock attaching points.
• Ideal for applications up to 25 lbs, of boost.
• Voltage Signal Range 1-5 volts.
• Monitors manifold vacuum, varying output voltage to the ECU as a function of load placed on the engine, and providing necessary data to control fuel enrichment.

Details:

• Body Material: Plastic
• Connector Gender: Male
• Emission Code: 4
• Grade Type: Performance
• Housing Color: Black
• Maximum Pressure Reading: 2.5 Bar
• Mount Type: Bolted
• Terminal Gender: Male
• Wiring Harness Included: No
