SKU
6631-BCCX
List price
$899.95
Price
$899.95

The Fast Rev limiter is very quick and accurate compared to our Soft Touch Rev limiter.

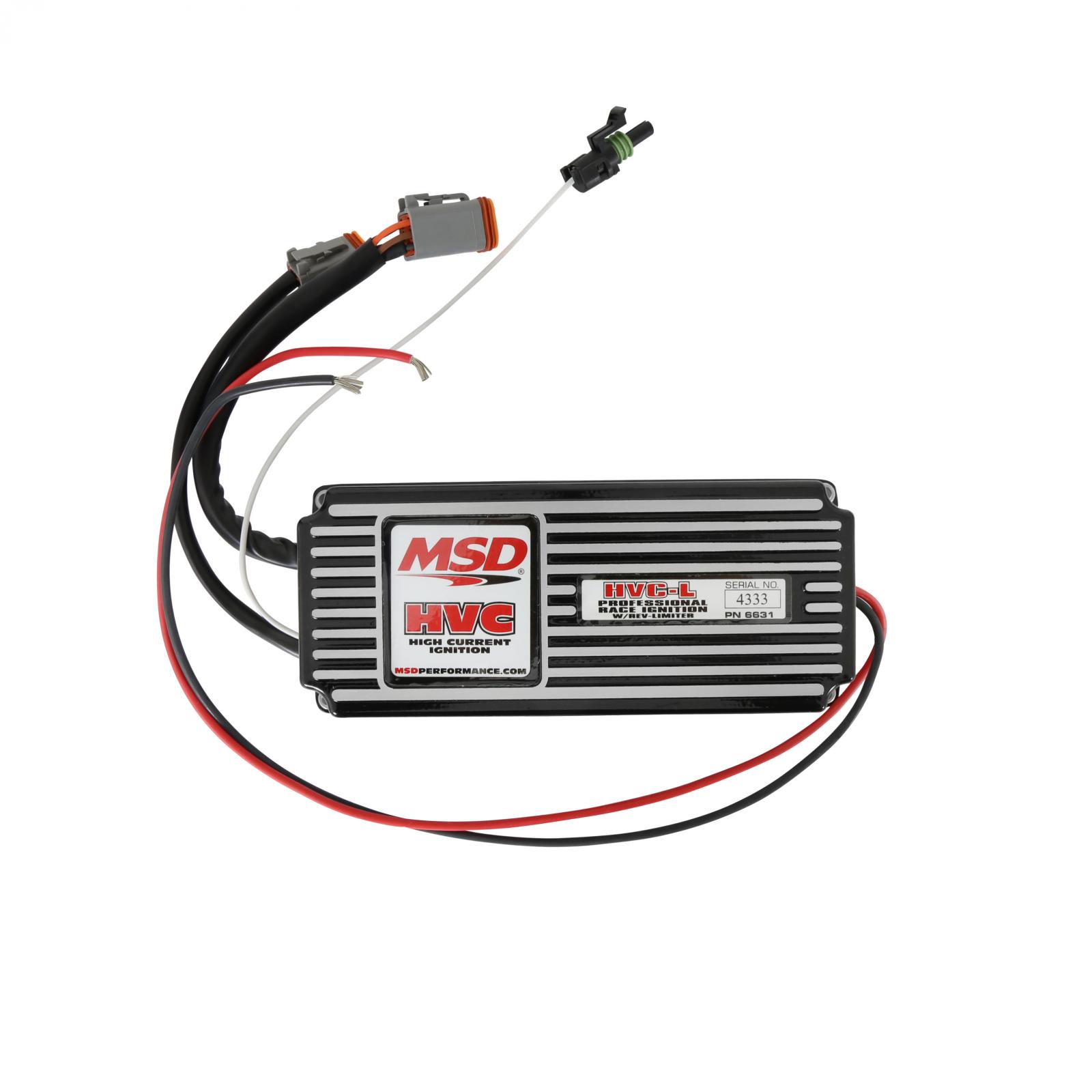

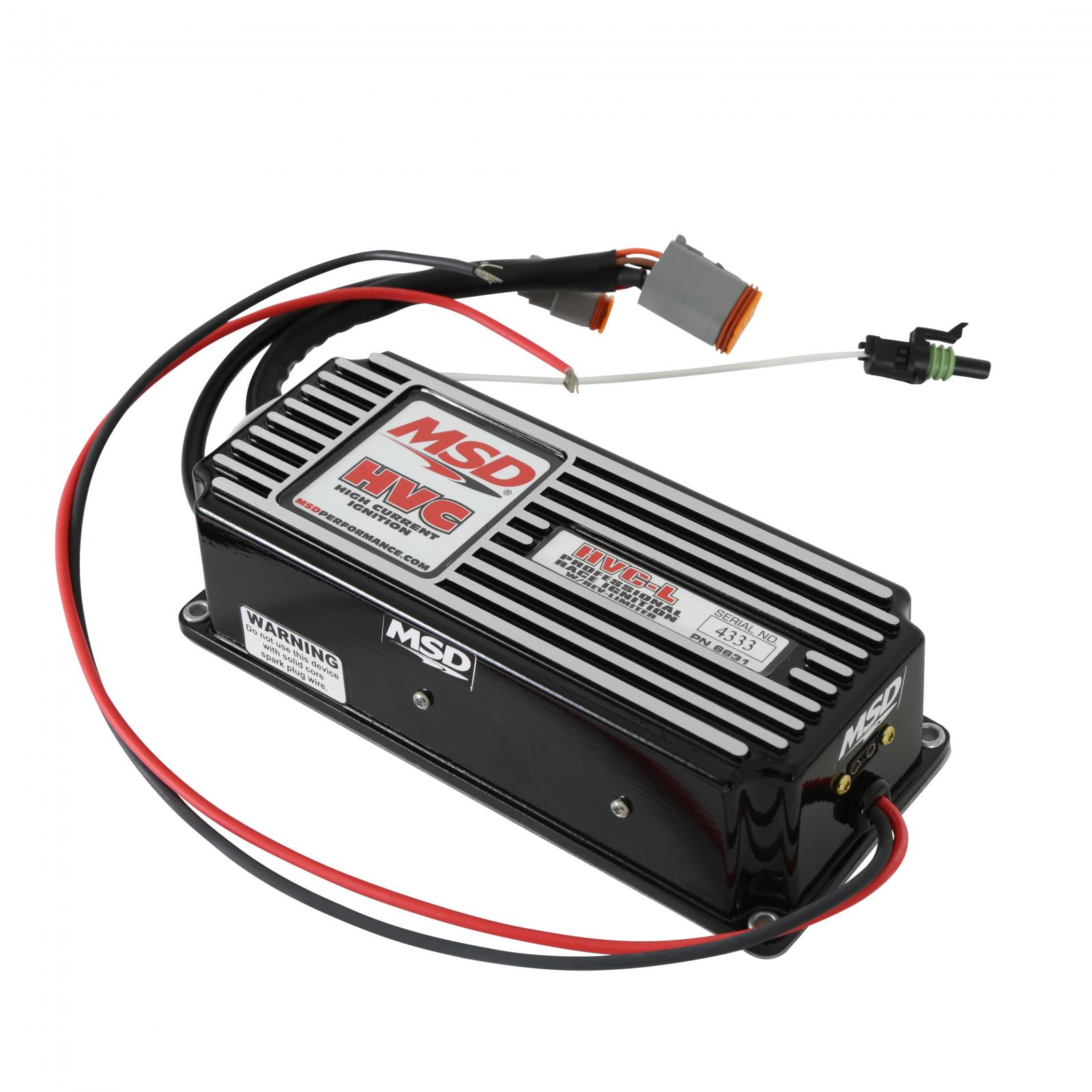

  • Professional race teams have been relying on the power and endurance of our 6 HVC Ignition Control. The advanced component design and circuitry of the 6 HVC Ignitions produce incredible voltage with high current output. Internally there is an efficient heat sync, solid component mounting and it's all encased in a clear epoxy. The rpm limit is adjustable with plug-in modules and the wiring is routed into NASCAR approved Deutsch style MSD connectors.
  • 150 millijoules per spark up to 15,000 RPM
  • Built-in reverse polarity protection circuit
  • Must be used with HVC Coil PN 8250
  • Accepts breaker points, amplifier and magnetic pickup trigger inputs

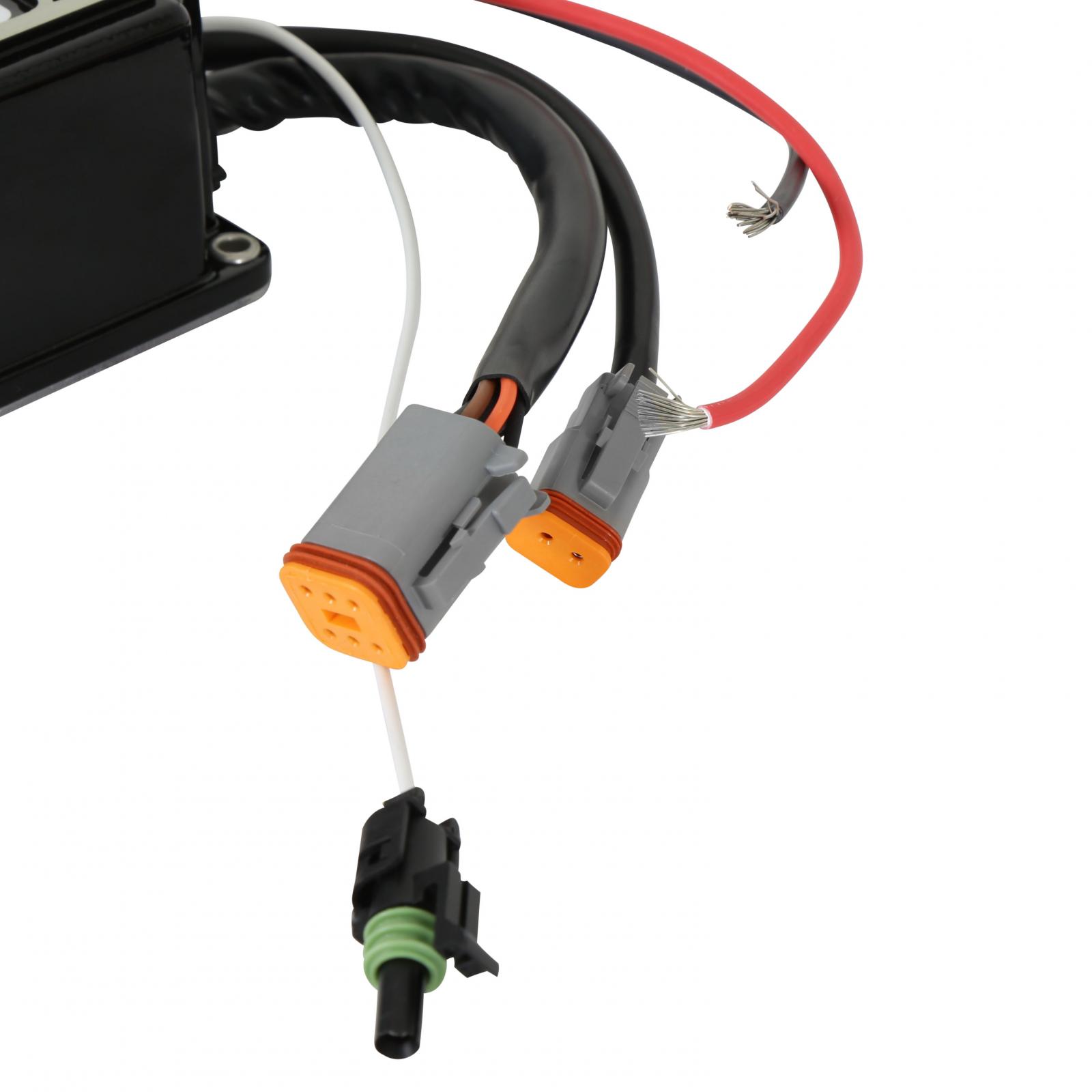

  • 6-pin Weathertight connector, mandatory for NASCAR use
  • No CARB Exemption Order Number
  • 15,000 RPM with 14.4 Volts
  • Multiple sparks for 20 degrees of crankshaft rotation
  • Includes built-in Fast rev limiter
  • 12-18 Volts, Negative Ground
  • Clear epoxy potting compound for vibration protection and clear base plate for easy tech inspection
  • 550 primary voltage output to coil

Details:

  • Connector Gender: Male Female
  • Connector Quantity: 3.0
  • Emission Code: 4
  • Height: 2.25
  • Ignition Type: Performance
  • Length: 8
  • Maximum Rpm: 15,000
  • Mounting Hardware Included: Yes
  • Mounting Type: Surface Mount
  • Primary Voltage: 550
  • Spark Energy Mj Per Spark: 150
  • Terminal Gender: Male Female
  • Terminal Quantity: 11.0
  • Warranty: Manufacturer's Limited 1 Year Warranty
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Brand
MSD Ignition
Category
Electrical & Ignitions
Distributor
Ignition Control Module
Specs
Country of Origin: USA
Sold As: Each
UPC: 085132066315
Availability: Available
Universal: No
Vehicle Type
Truck/SUV
Core Charge
$0.00
