The all-new capacitive discharge ignition will easily connect to nearly any 12-volt negative ground distributor system.

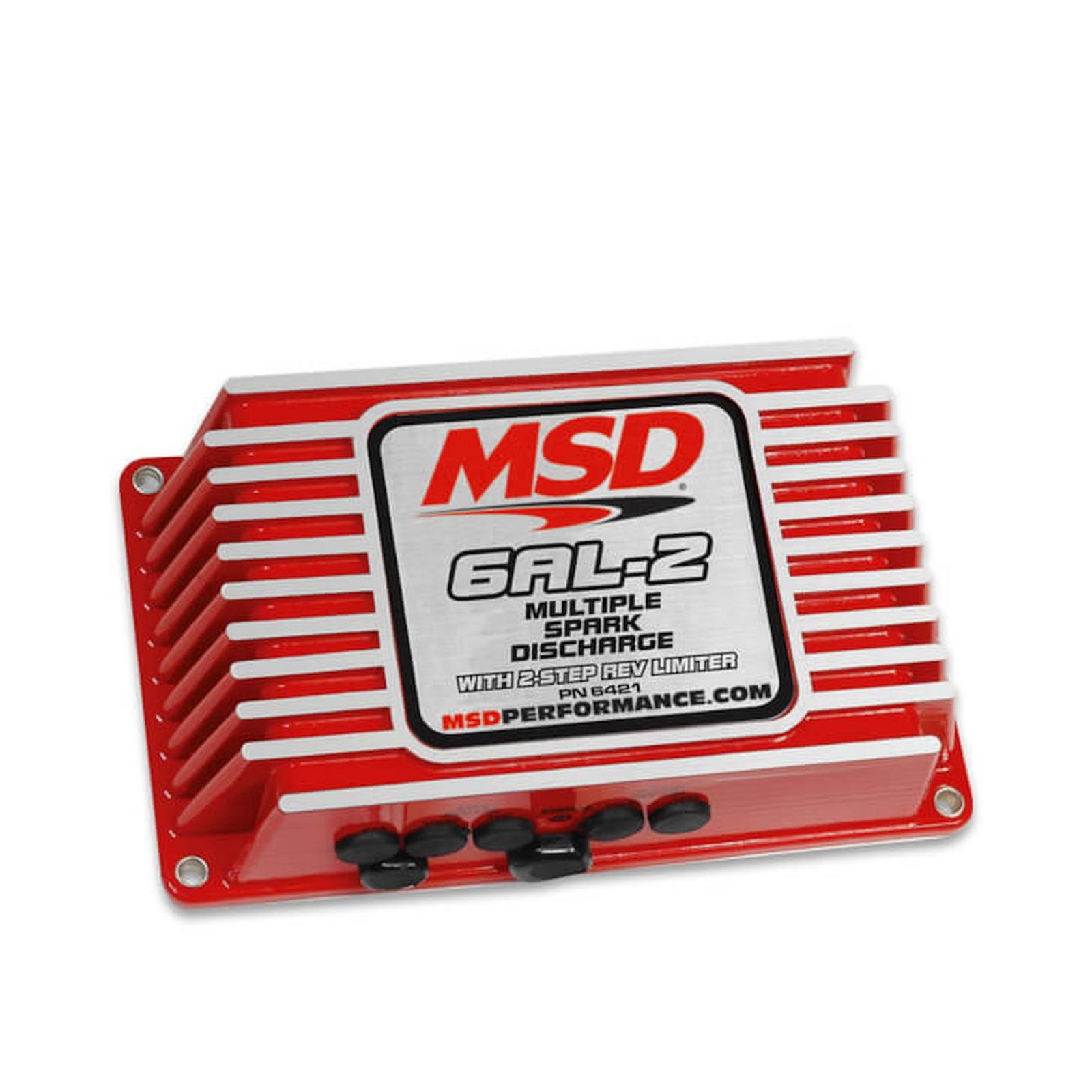

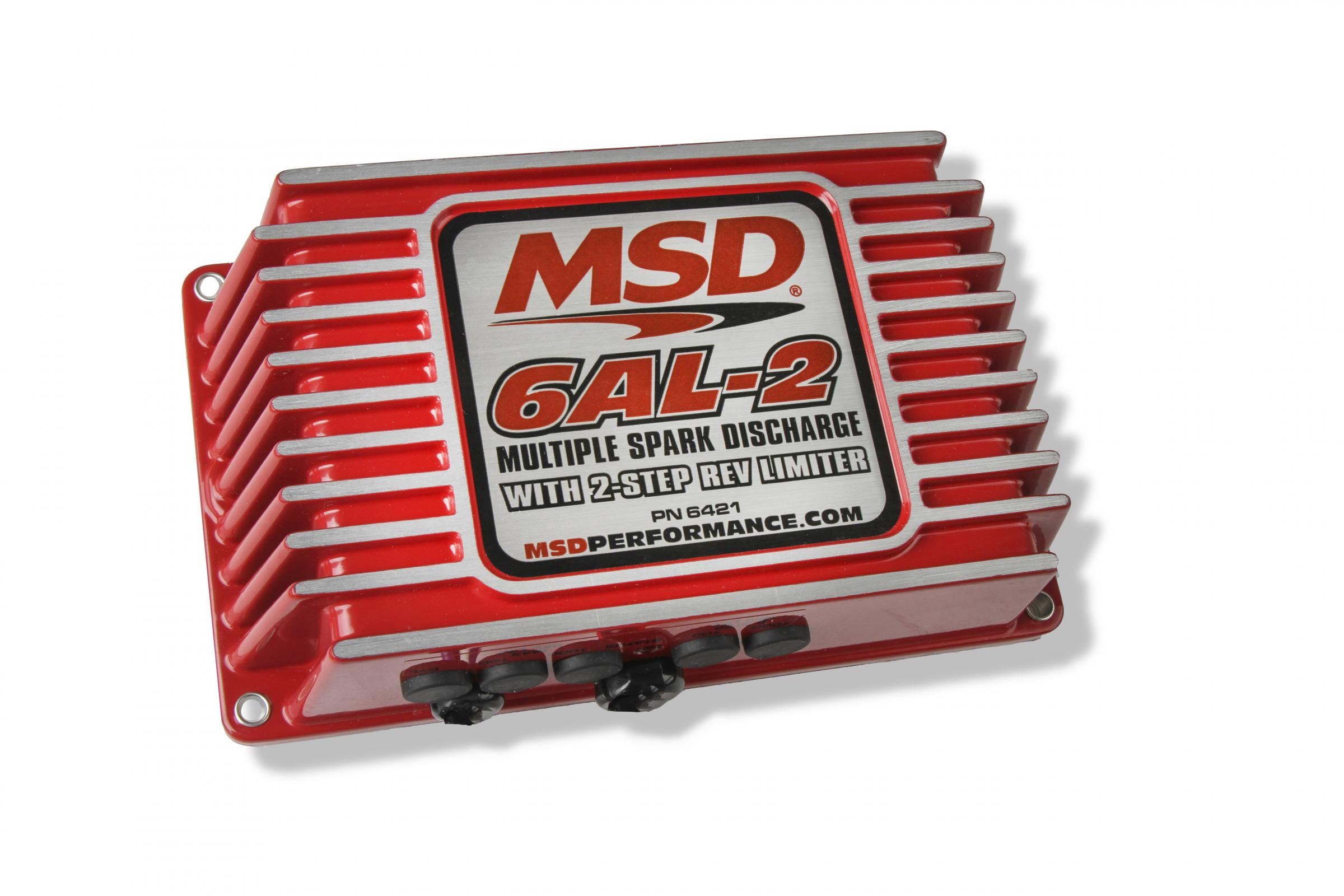

• MSD is excited to announce the next generation of 6-Series ignition controls - the 6AL-2! The ignition control combines a new housing, new digital controls, and more power in a sleek package. Inside the new cast aluminum housing, you'll find an advanced micro-controller that manages the built-in two-step rev-limiter. The spark output of the new box has been turned up to 535 volts of primary voltage with spark energy reaching up to 135 millijoules! The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion.
• Two more great features are the rev limits! There are two rev limiters
• one for high-end overrev protection and another you can activate off a clutch or trans-brake to set a launch limit. This feature will help your car blast off the starting line! Adjustments are made via four rotary dials for 100 rpm increment control!
• 12-18 Volts, Negative Ground
• Accepts Hall-effect, points and mag pickup triggers
• 12,500 RPM with 14.4 Volts
• Higher output with up to 135mJ of spark energy
• .7 Amp per 1,000 RPM
• Managed by an efficient digital processor
• All new housing, same reliable digital circuitry and performance
• Built-in 2-Step rev control adjustable with rotary dials

Details:

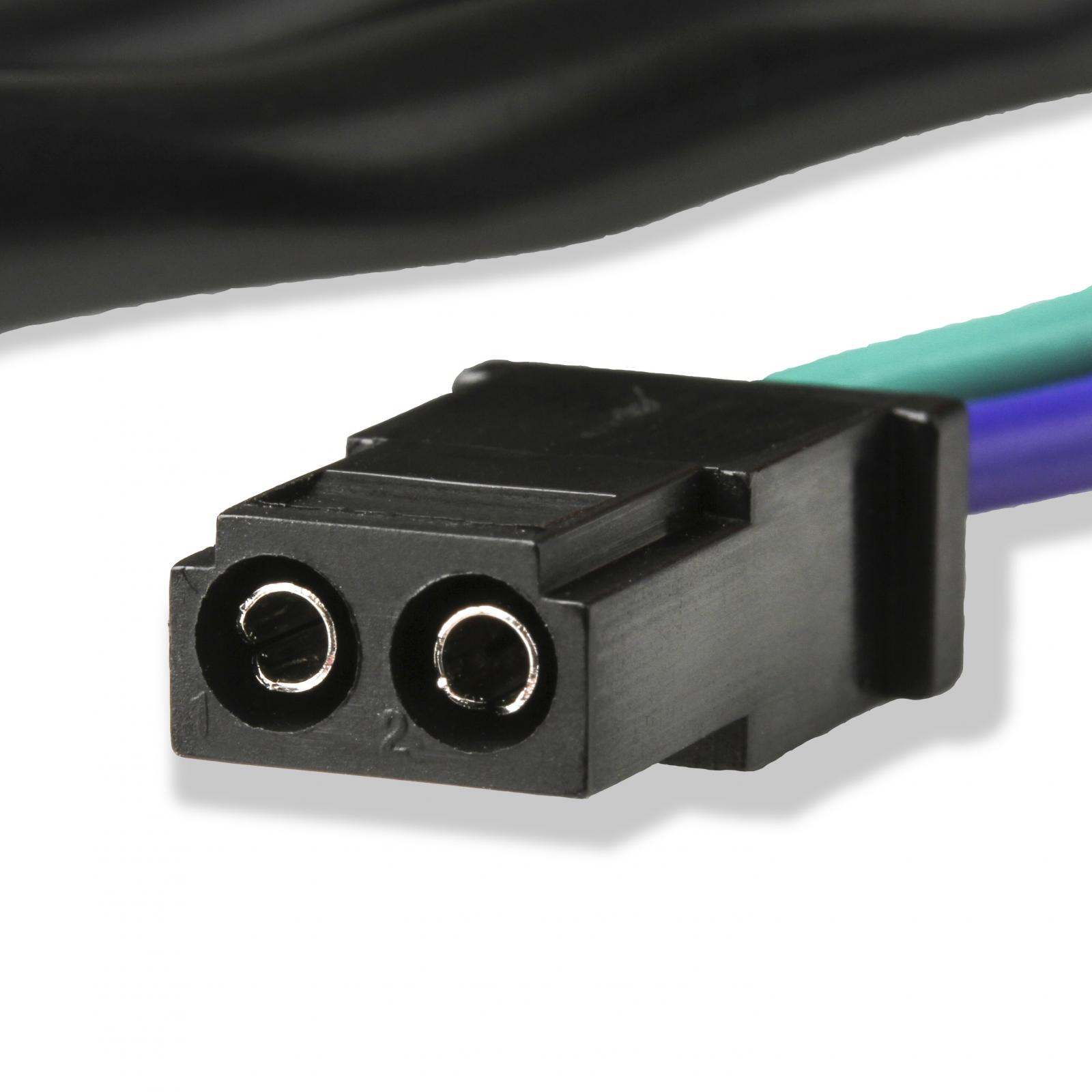

• Connector Gender: Male
• Connector Quantity: 1.0
• Current Draw: 1000
• Emission Code: 1
• Height: 2.0
• Ignition Type: Performance
• Length: 7
• Maximum Rpm: 12,500
• Mounting Hardware Included: Yes
• Mounting Type: Surface Mount
• Primary Voltage: 535
• Spark Energy Mj Per Spark: 135
• Terminal Gender: Male Female
• Terminal Quantity: 5.0
• Warranty: Manufacturer's Limited 1 Year Warranty
