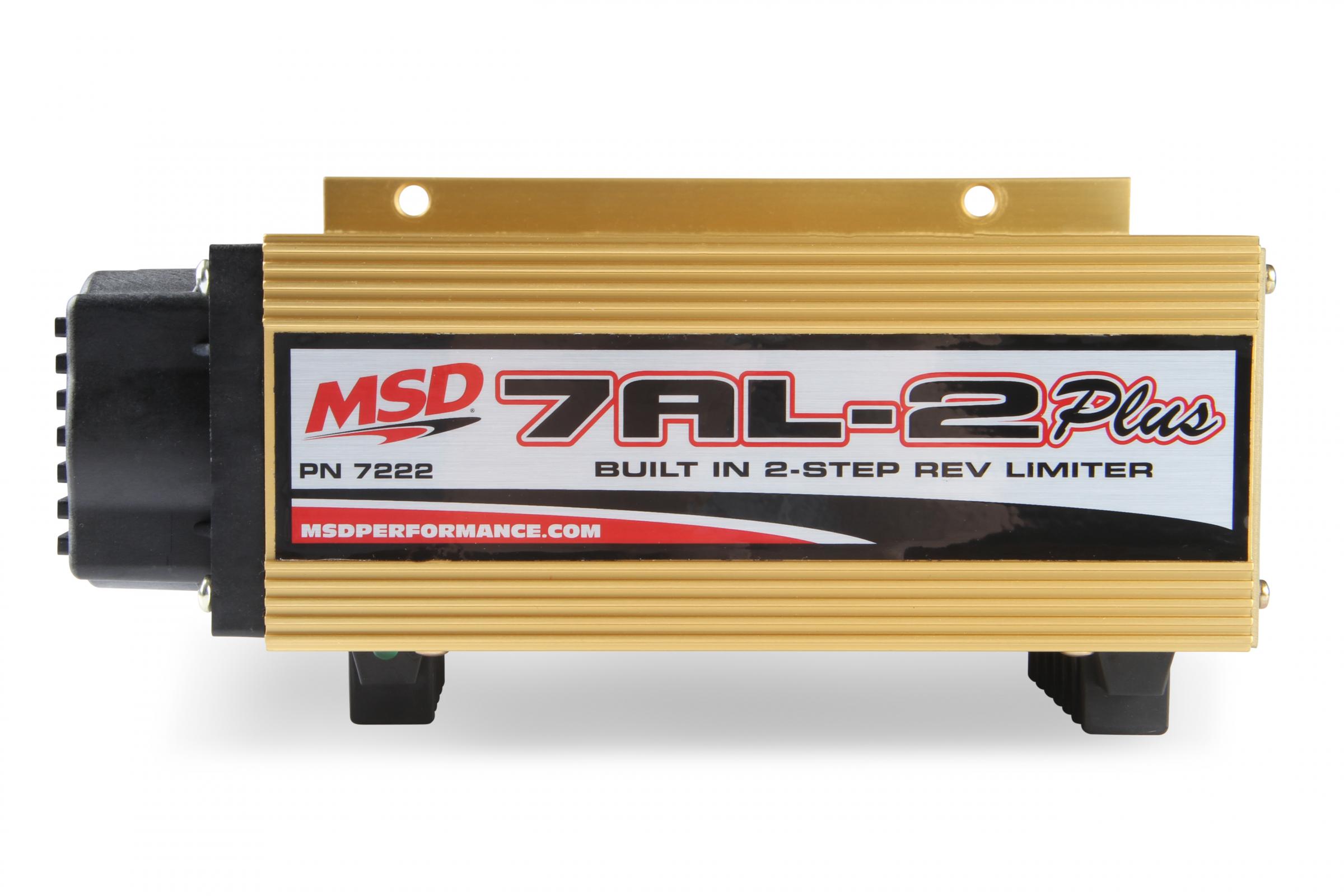

You'll recognize the 7AL-2 Plus Ignition Control, as its predecessor is the most popular ignition control used in drag racing. The Plus model updates the original 7AL-2 with improved internal components plus our engineers added a 2-Step Rev Control and a useful diagnostic LED.

• Racers will be happy to see that the updated components up the voltage output and spark energy! Over 40% more spark energy in fact!

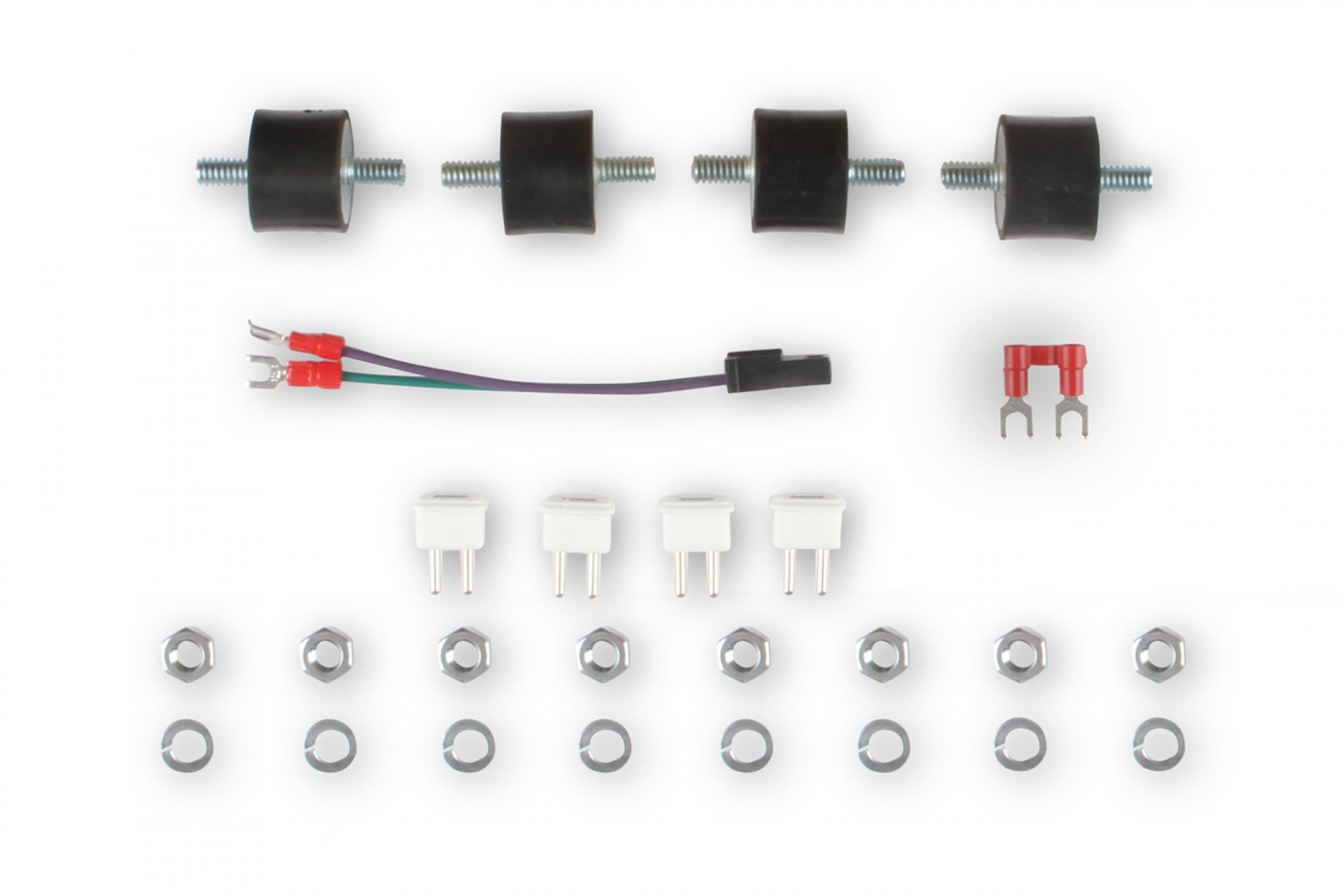

• Visually, you'll notice the two terminal strips that allow for easier wiring in your race car. The LED over the power connections will come in handy for troubleshooting as it flashes only when the coil fires. That way you know that the coil, the trigger source and ignition are all functioning properly. The mounting pattern is the same as the 7AL-2 and is supplied with vibration mounts and a few rpm modules.
• 14,000 RPM with 14.4 Volts
• Built-in 2-Step rev control
• Operates on 4, 6 or 8-cylinder engines
• Supplied with 3000, 7000, 8000, 9000 RPM Chips
• Diagnostic Troubleshooting LED
• 12-18 Volts, Negative Ground
• Terminal strips for convenient hookup
• 6 Amps Per 6,000 RPM
• 12 Amps at 12,000 RPM

Details:

• Connector Gender: Terminal Strip
• Connector Quantity: 2.0
• Current Draw: 6000
• Emission Code: 4
• Height: 5.75
• Ignition Type: Performance
• Length: 8.25
• Maximum Rpm: 14,000
• Mounting Hardware Included: Yes
• Mounting Type: Surface Mount
• Primary Voltage: 570
• Spark Energy Mj Per Spark: 160
• Terminal Gender: Terminal Strip
• Terminal Quantity: 10.0
• Warranty: Manufacturer's Limited 1 Year Warranty
