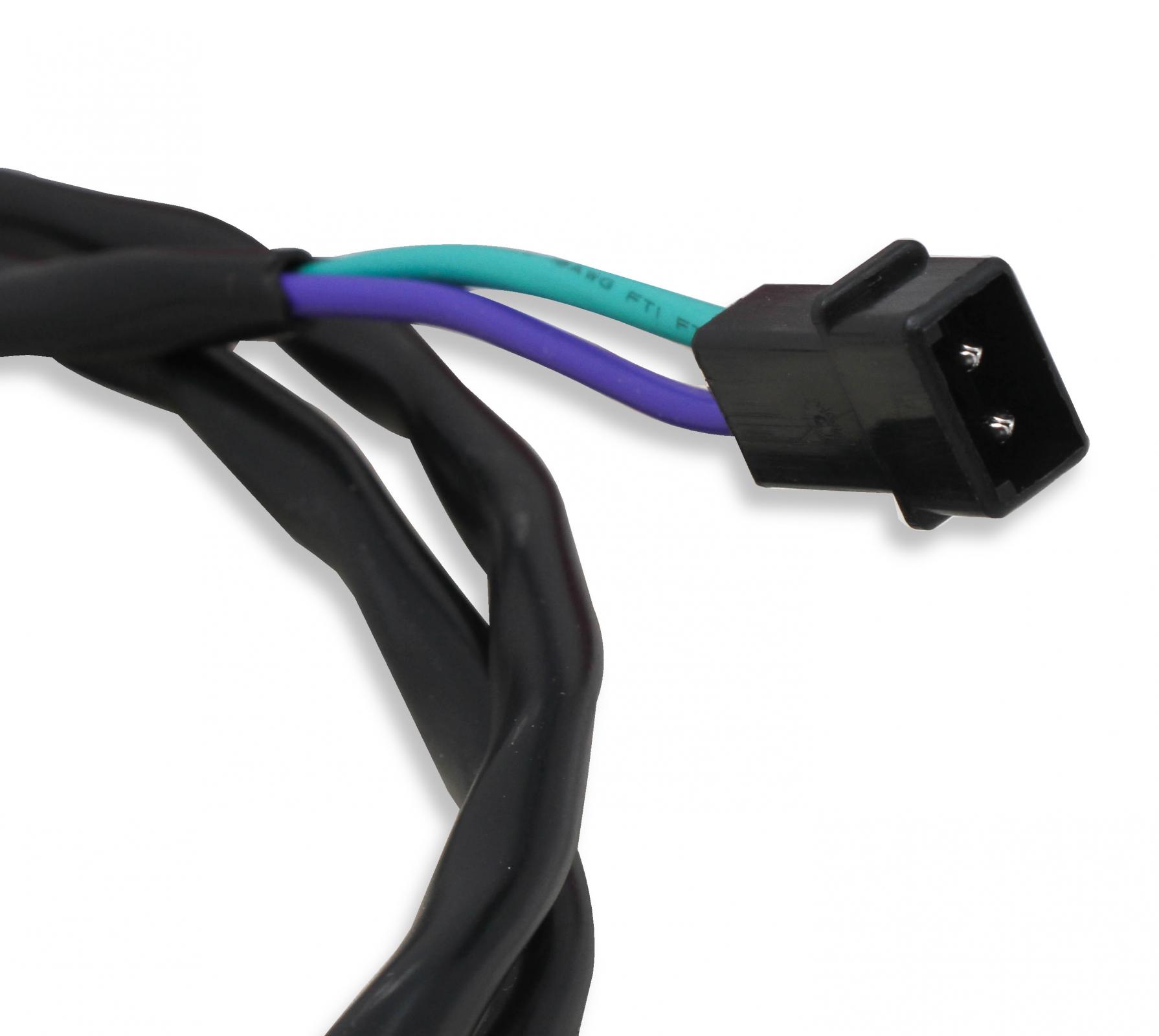

A sealed, locking connector keeps the minimal wiring of the 6A tidy for a clean installation in all applications. It can be run on 4, 6 and 8 cylinder engines with a 12 volt negative ground electrical system and can be triggered with breaker points, an electronic amplifier or magnetic pickups.

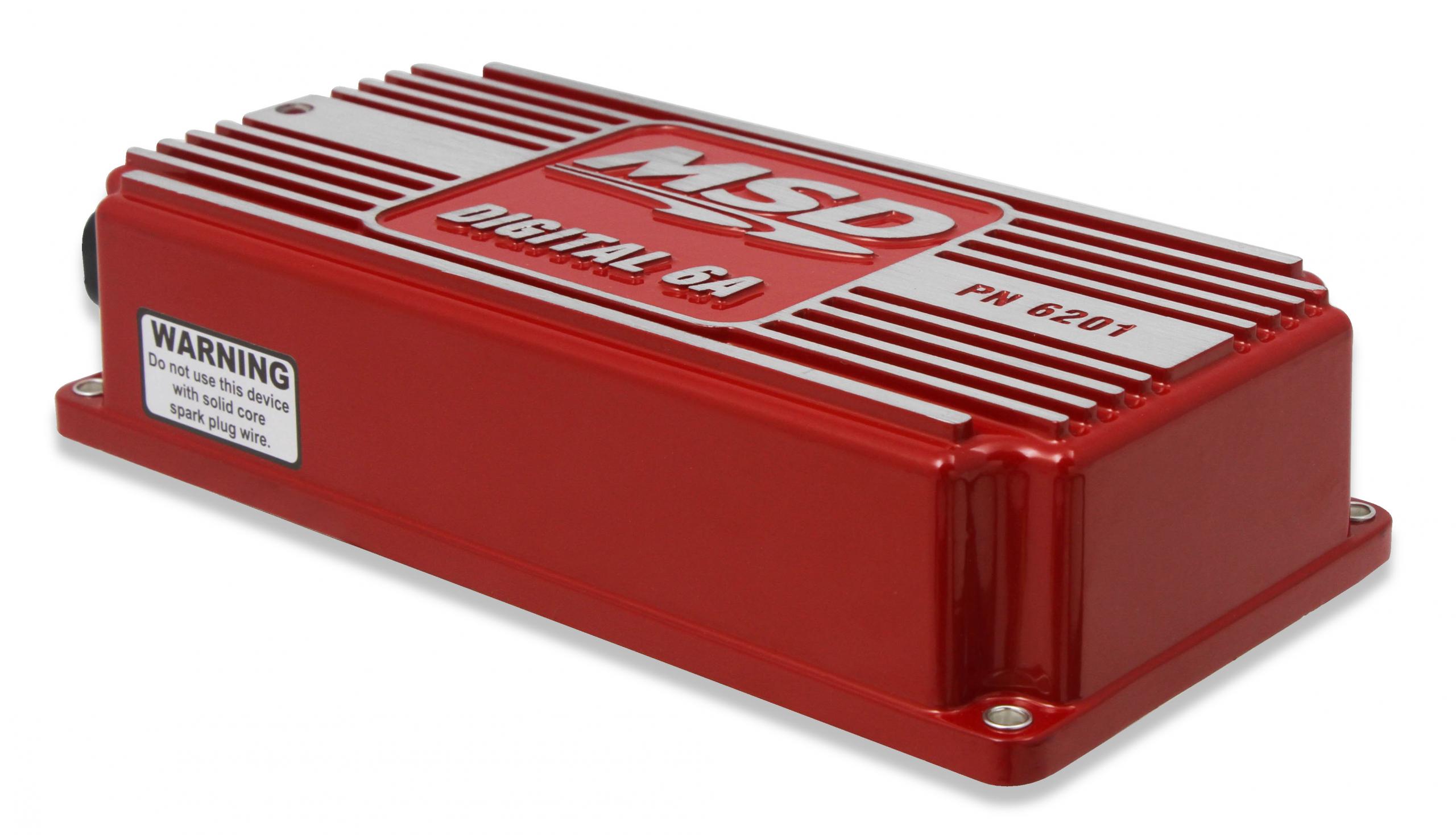

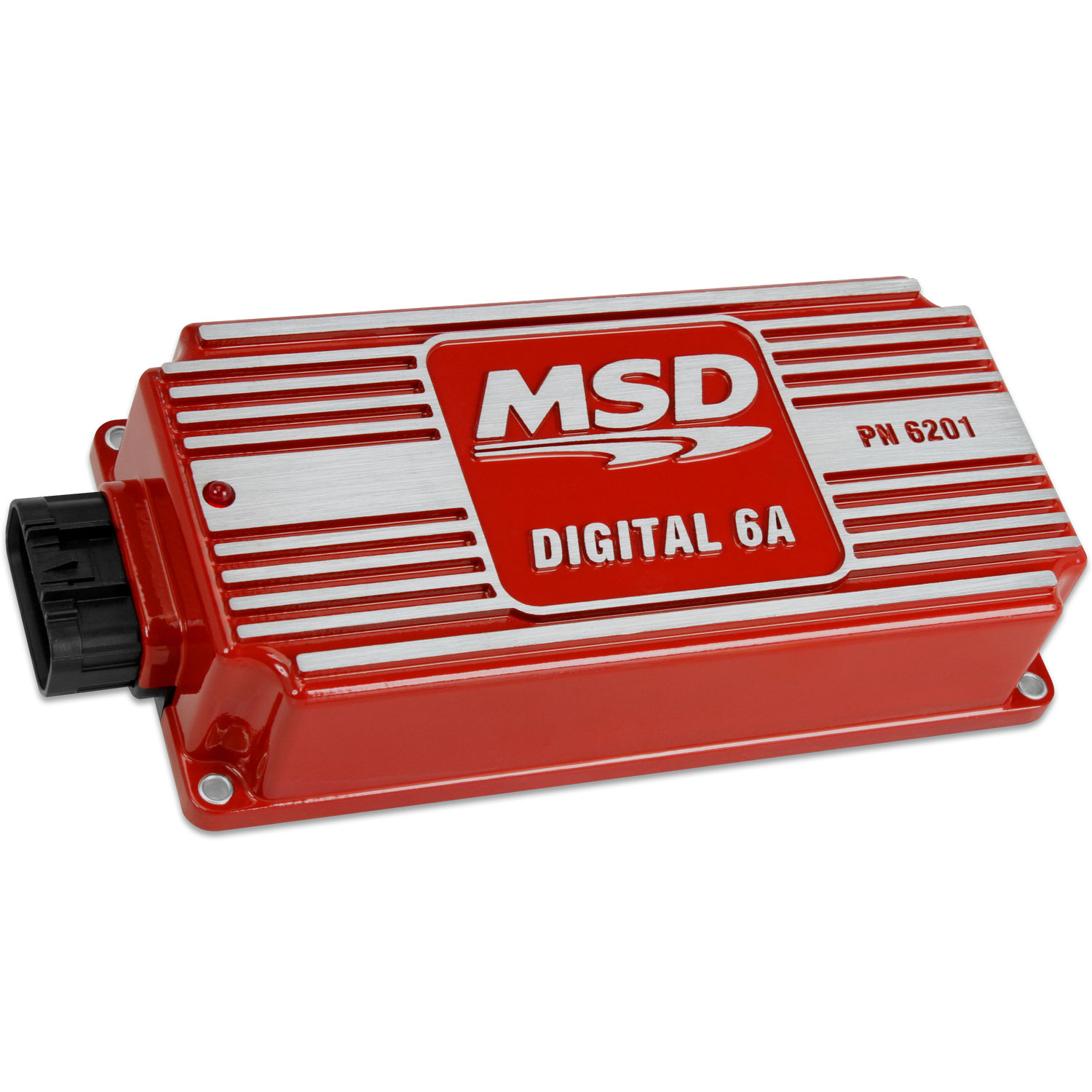

• The Digital 6A is a microprocessor controlled, capacitive discharge ignition that multi sparks up to 3,000 RPM providing easy starts, a clean, smooth idle and quick throttle response by optimizing your engines efficiency. Above 3,000 RPM, a single spark stays lit for up to 200 of crankshaft rotation ensuring a complete burn of the air / fuel mixture in every cylinder.
• If you're looking to improve the performance of your modified mill, we have the answer. Whether you've done a cam swap, or bolted on a carb, intake and headers.

  . the 6A is a surefire way to harness all the ponies under your hood.

• Built-in LED for system checks
• Smooth Idle
• Sealed, locking connector
• Full, capacitive discharge ignition power throughout the RPM range
• Easy Starts
• Tach output wire
• .7 Amp per 1,000 RPM
• Compatible with 4, 6 or 8 - cylinder engines
• Quick throttle response
• 12-15 Volts, 7 Volt Start
• 15,000 RPM with 14.4 Volts

Details:

• Connector Gender: Female
• Connector Quantity: 1.0
• Current Draw: 1000
• Emission Code: 1
• Height: 1.825
• Ignition Type: Performance
• Length: 8
• Maximum Rpm: 15,000

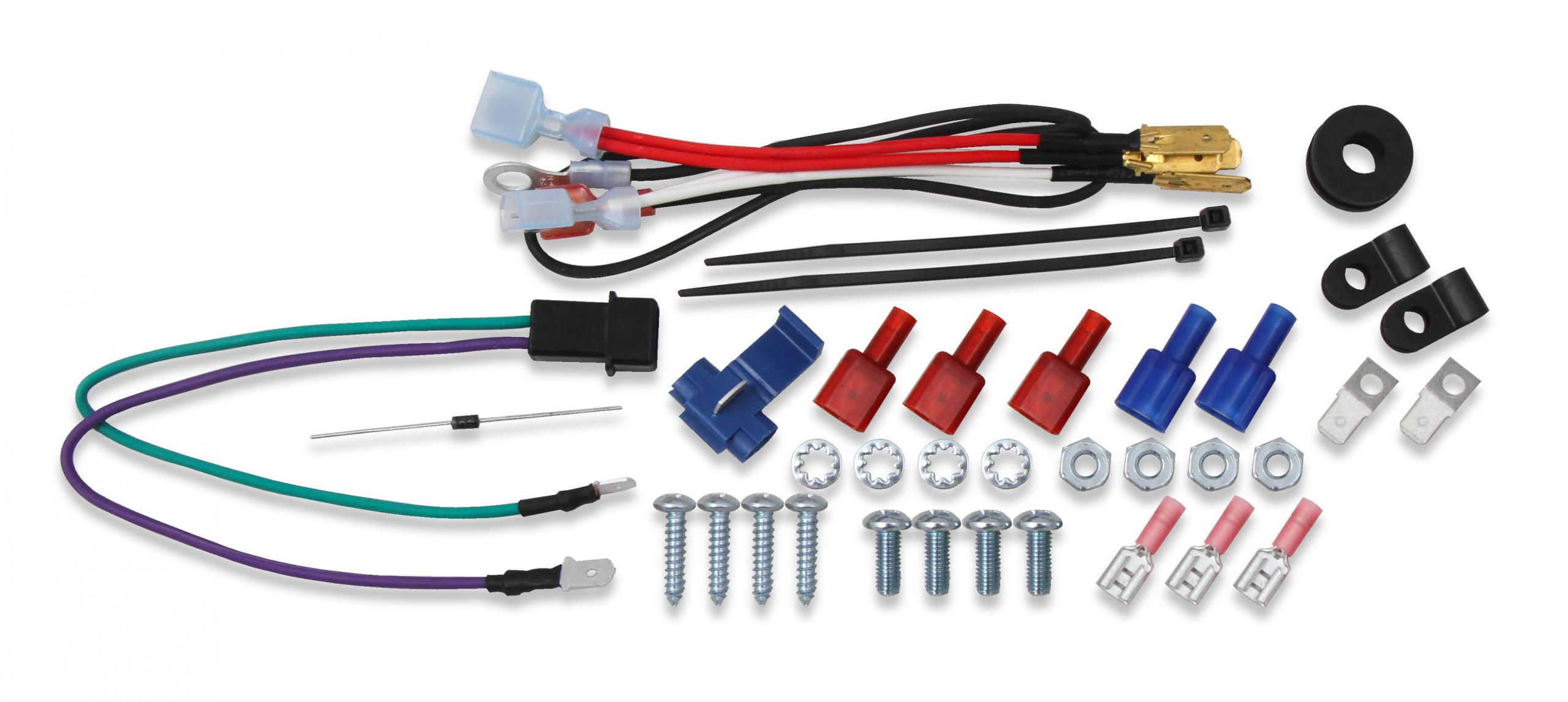

• Mounting Hardware Included: Yes
• Mounting Type: Surface Mount
• Primary Voltage: 520-540
• Spark Energy Mj Per Spark: 135-145
• Terminal Gender: Male
• Terminal Quantity: 12.0
• Warranty: Manufacturer's Limited 1 Year Warranty
