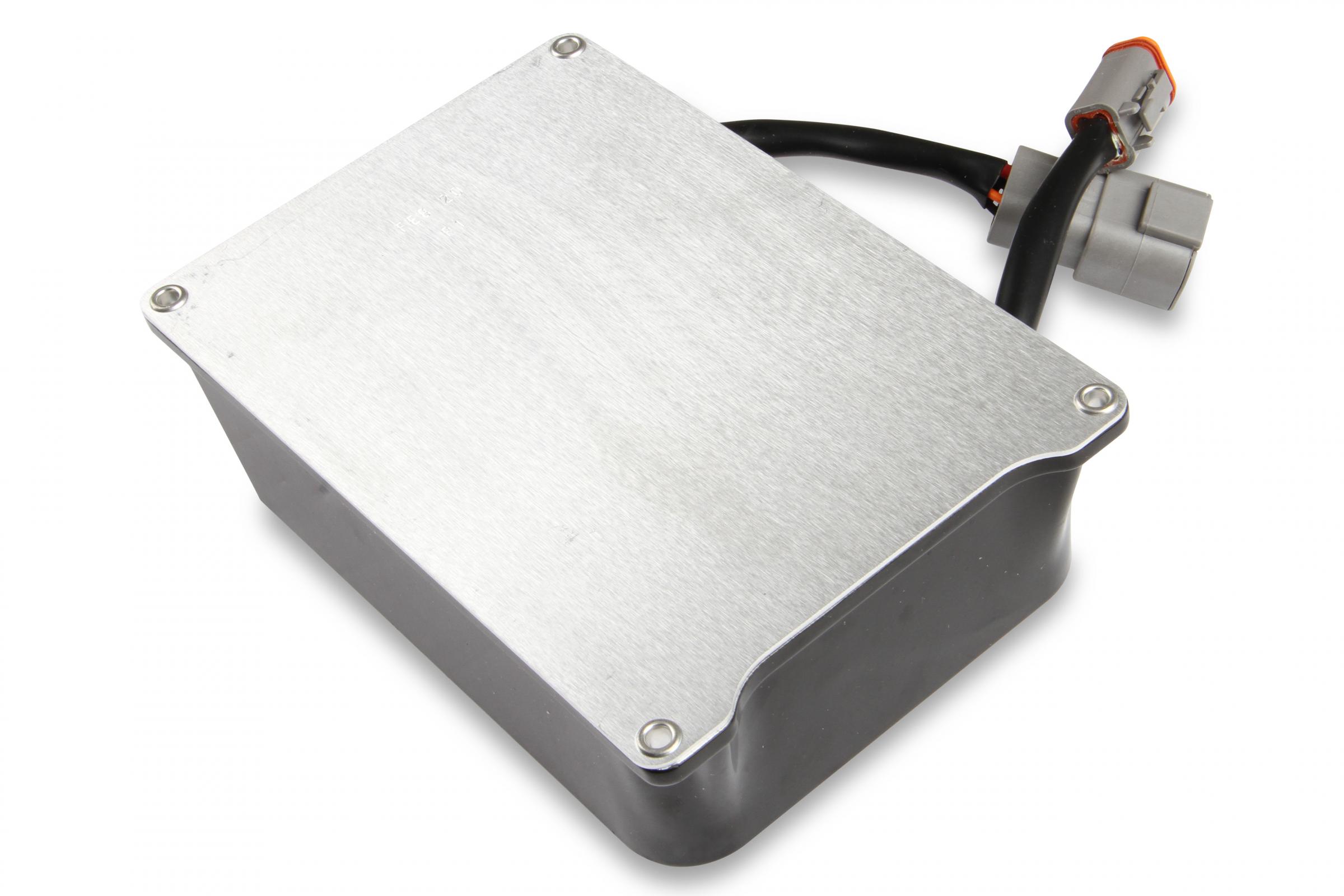

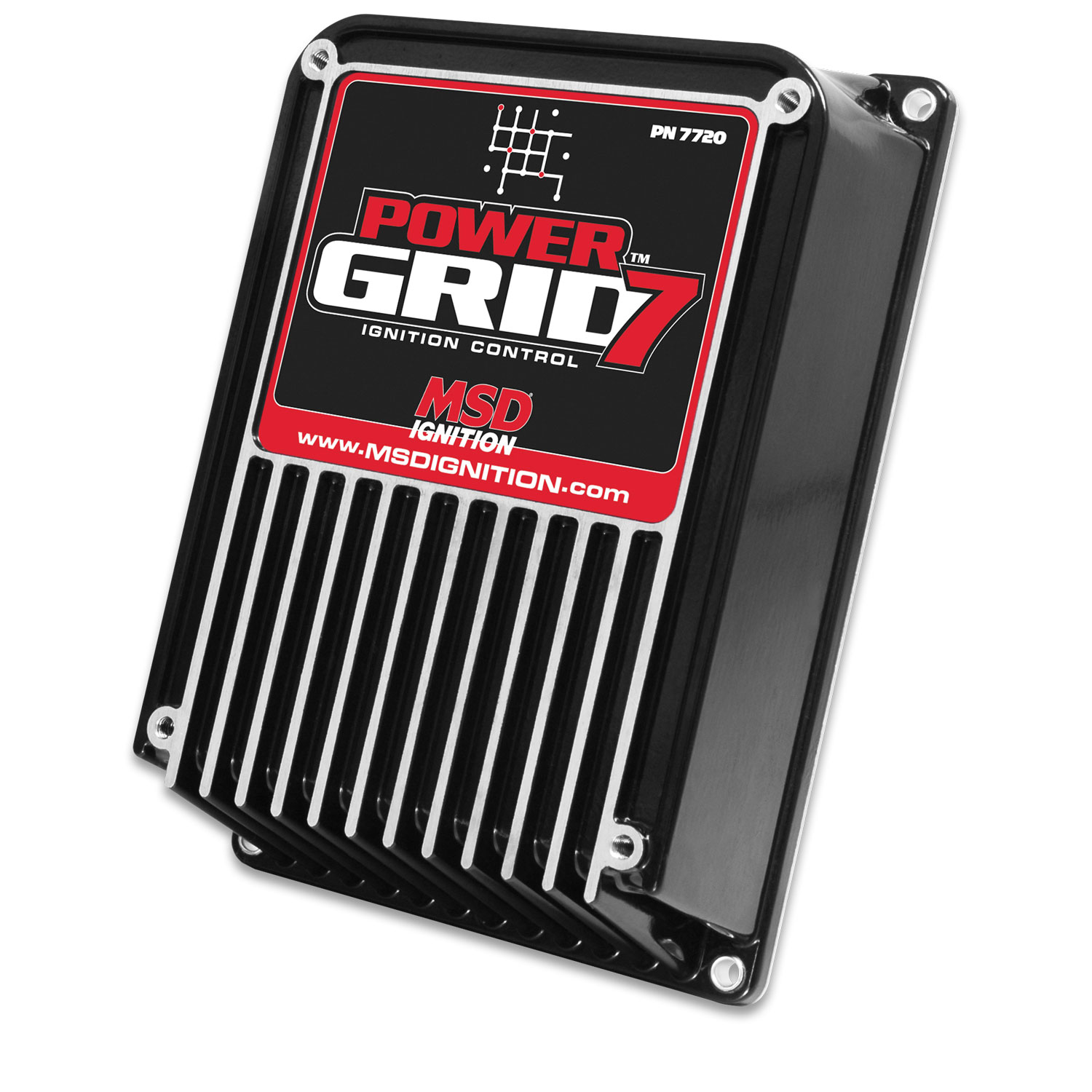

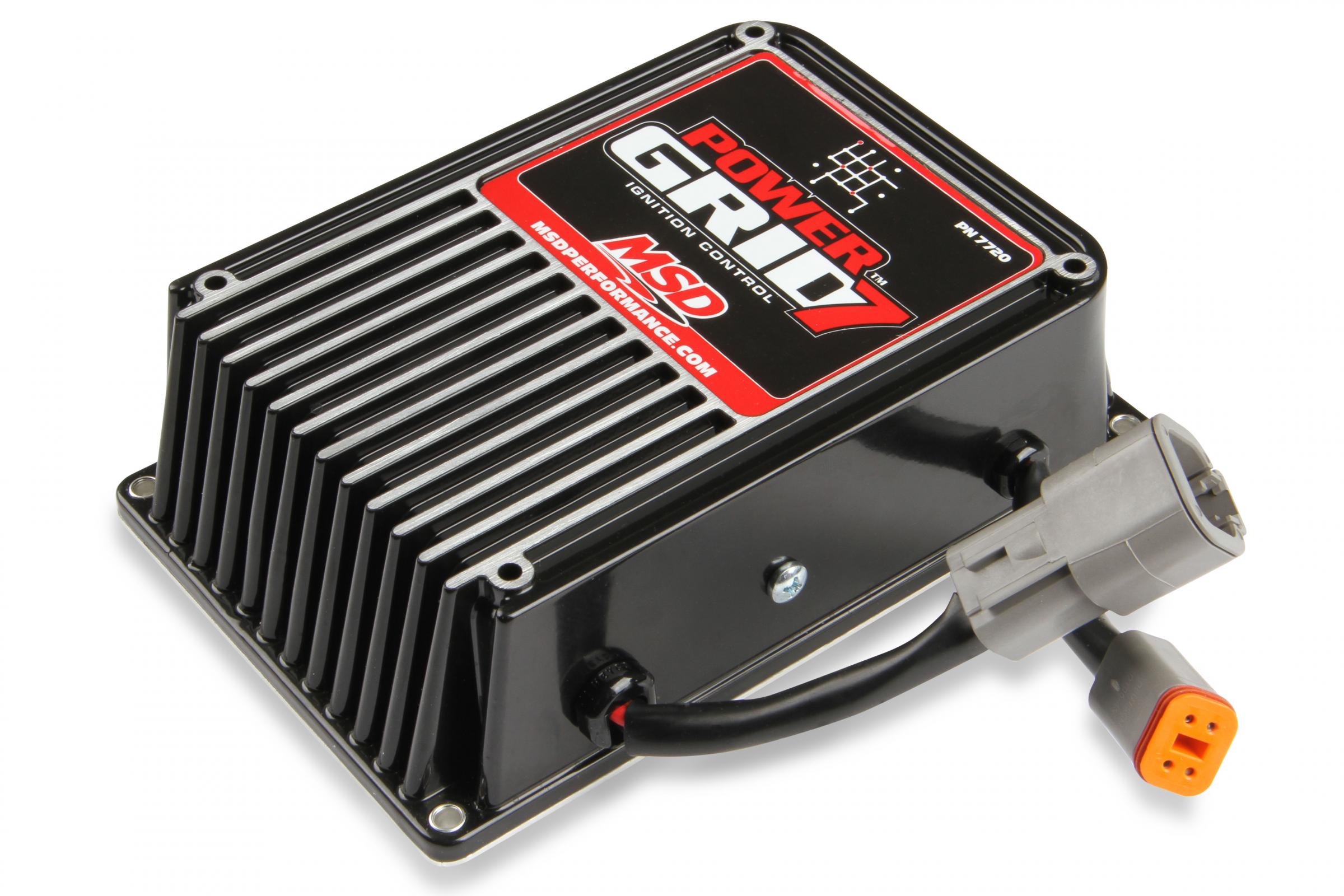

The Power Grid Ignition Control has been specially designed to mount to the Power Grid System Controller box, PN 7730/77303. This Ignition output only controller packs higher output than the current programmable units.

• For use with Power Grid Controller only (PN 7730 or PN 77303).
• For use with Power Grid PN 7730 or PN 77303 only
• 12-18 Volts, Negative Ground
• 15,000 RPM with 14.4 Volts
• 1.3 Amp per 1,000 RPM
• Power Grid PN 7730/77303 mounts directly on top
• High output spark for Power Grid System

Details:

• Connector Gender: Male Female
• Connector Quantity: 2.0
• Current Draw: 1000
• Emission Code: 4
• Height: 2.25
• Ignition Type: Performance
• Length: 7.5
• Maximum Rpm: 15,000
• Mounting Hardware Included: Yes
• Mounting Type: Surface Mount
• Primary Voltage: 545-570
• Spark Energy Mj Per Spark: 200-220
• Terminal Gender: Male Female
• Terminal Quantity: 8.0
• Warranty: Manufacturer's Limited 1 Year Warranty
