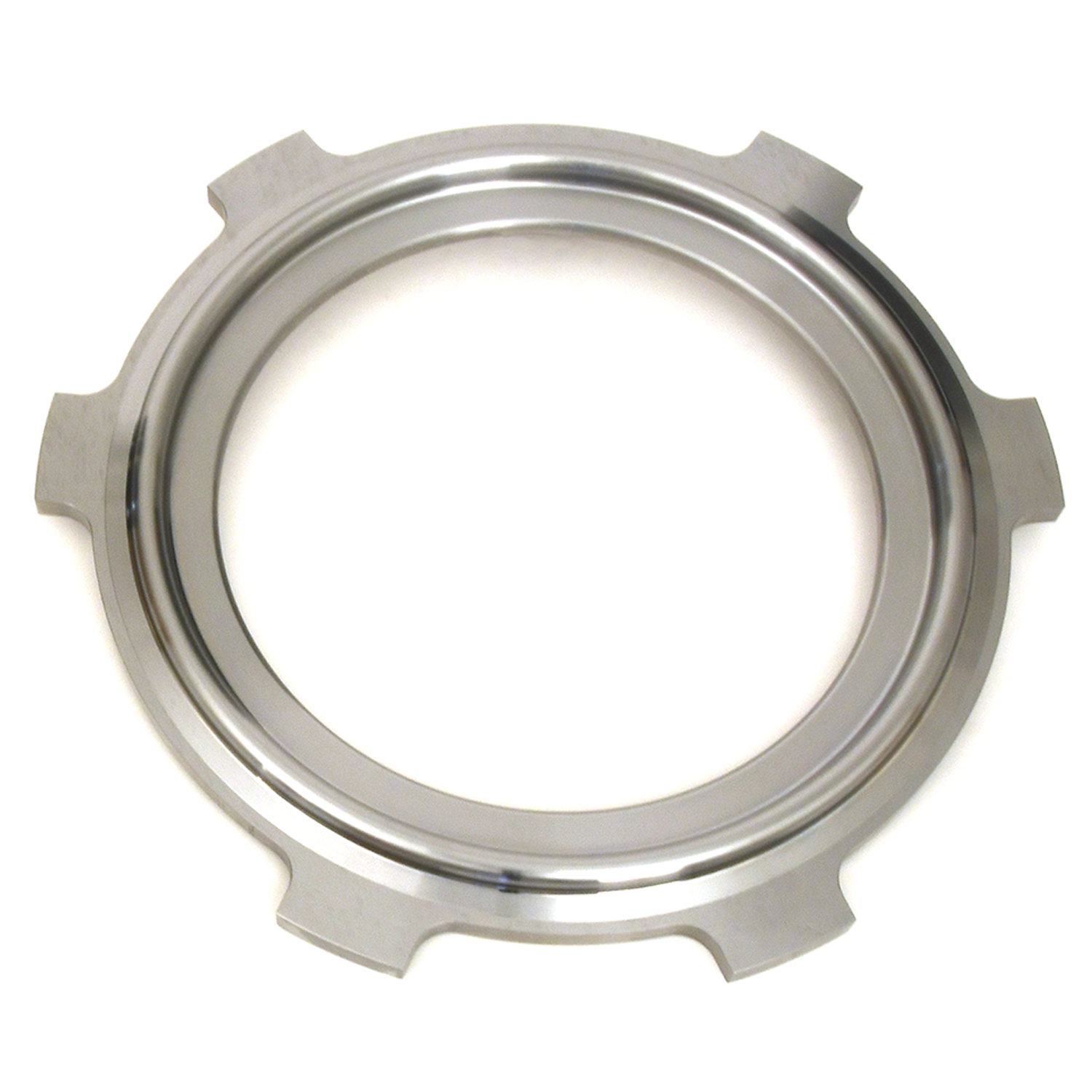

75 Inch twin disc clutch has been developed for vehicles requiring a holding capacity of 300 to 600 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort.

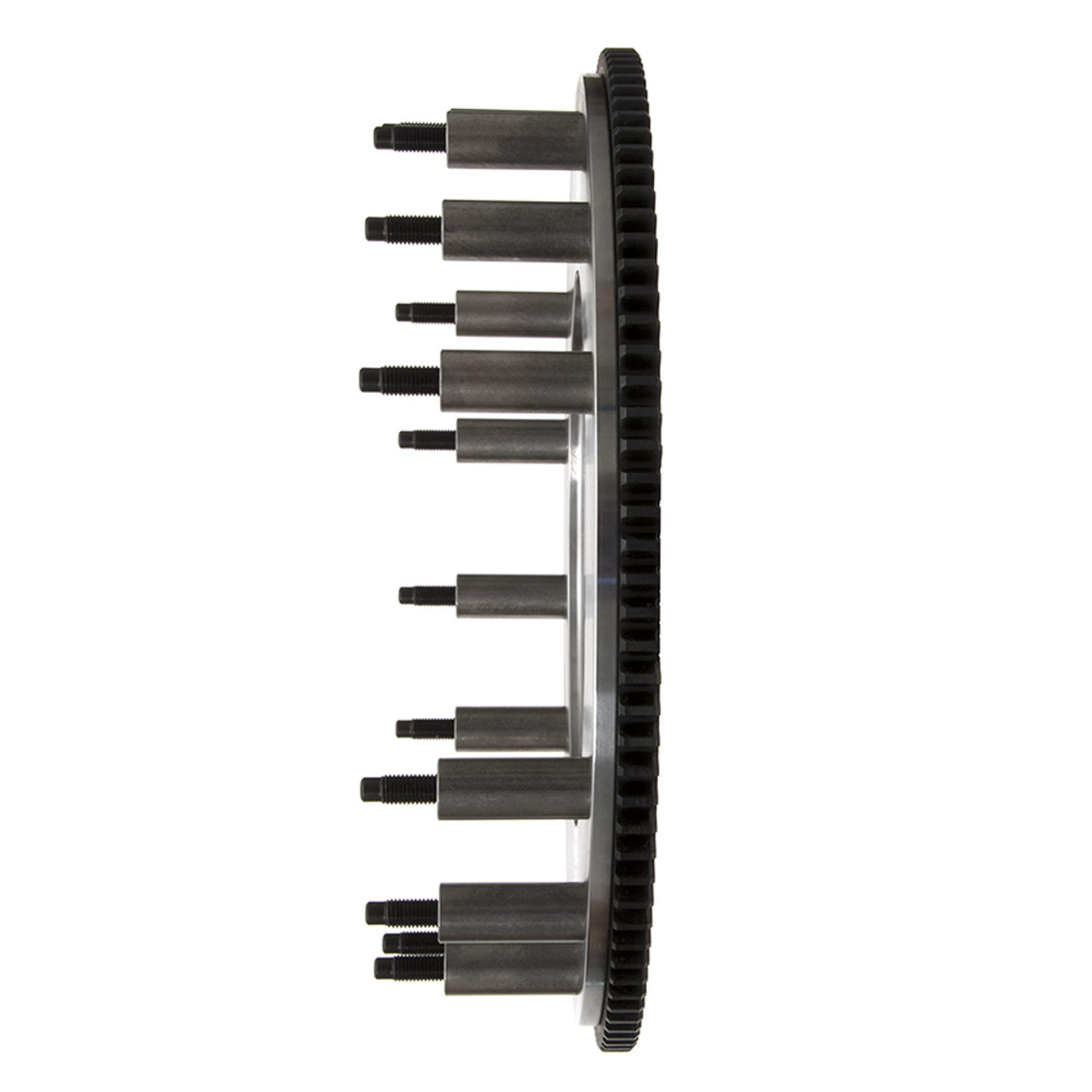

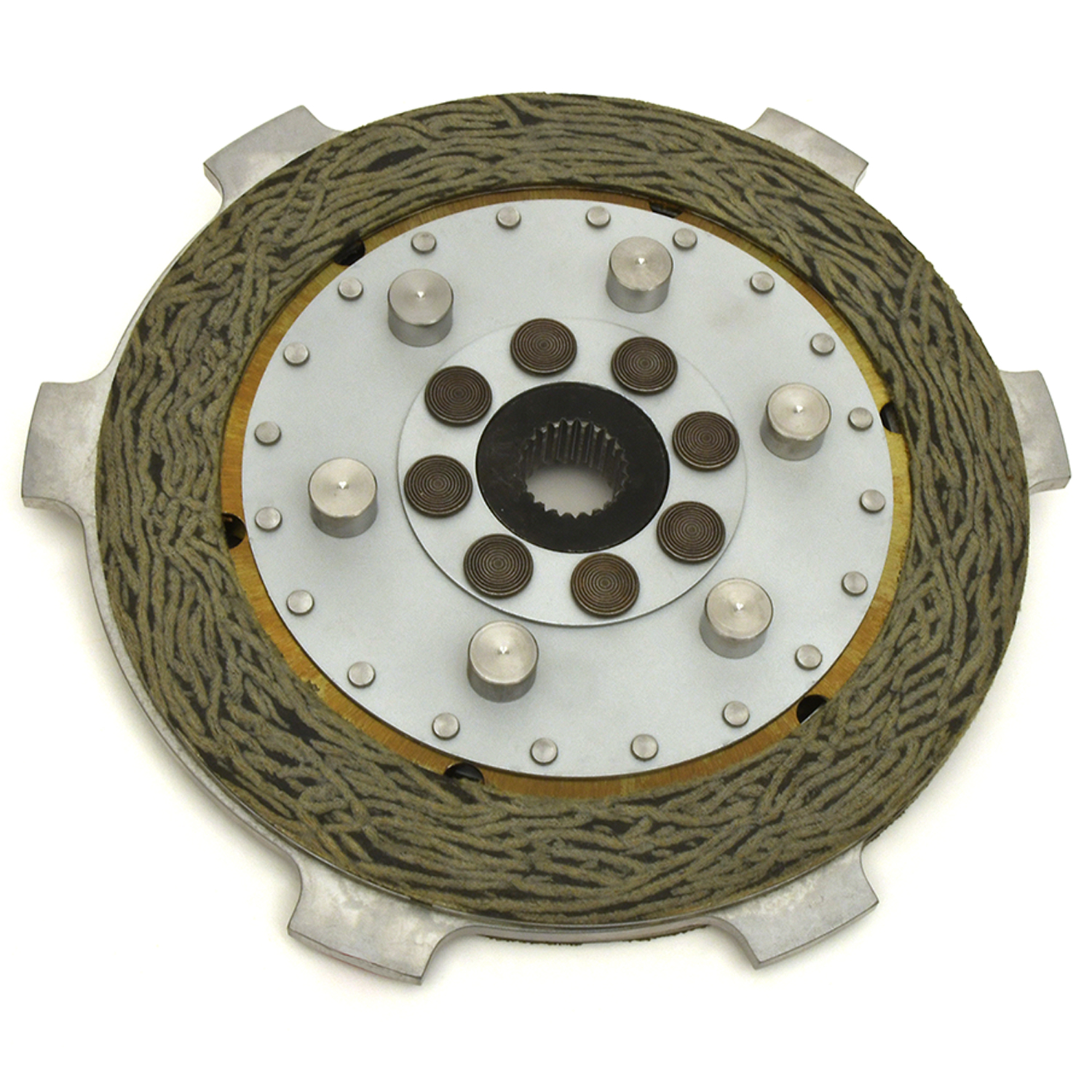

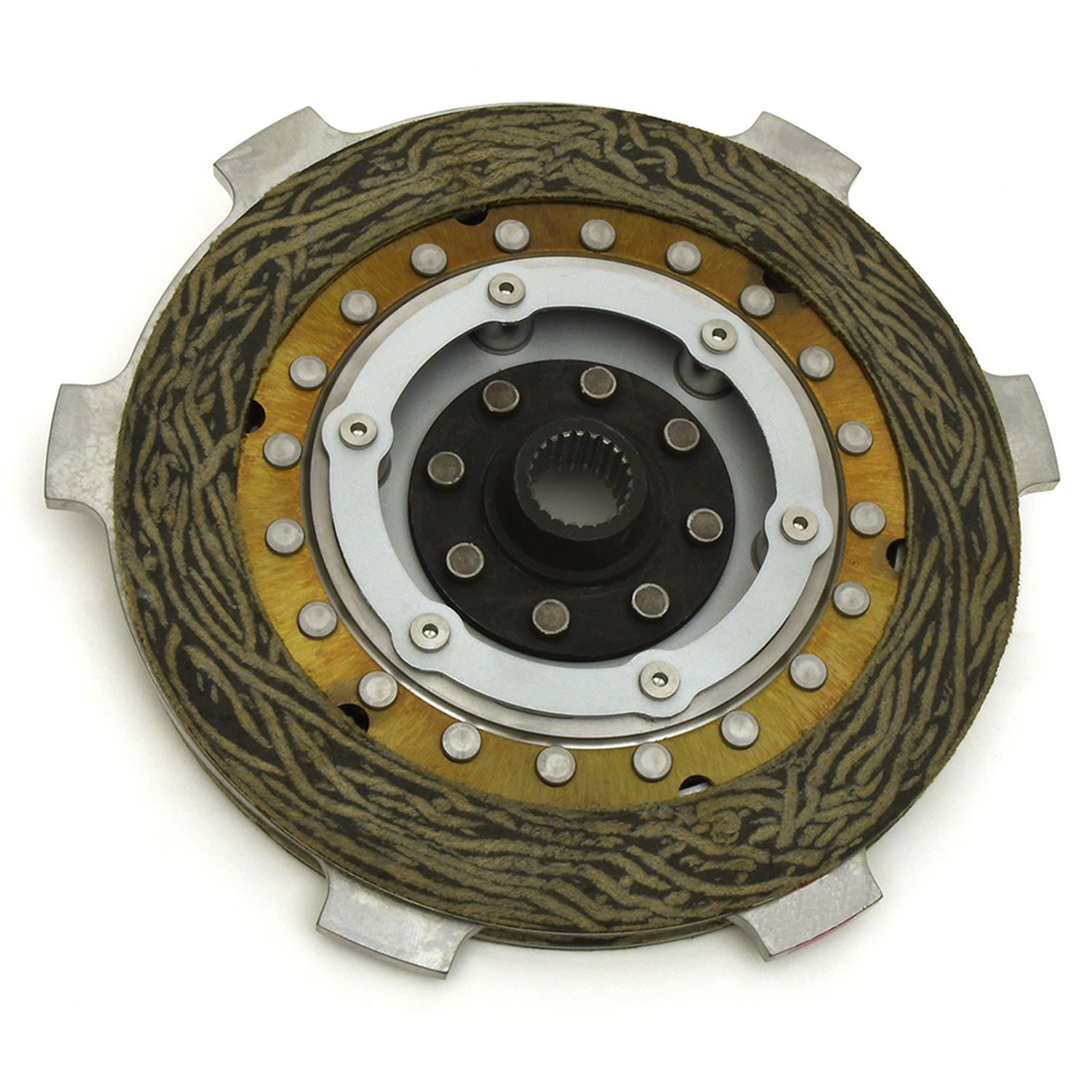

The discs pack is equipped with Kevlar full facing material providing increased holding capacity and is available in either sprung or solid hub (possible gear noise) depending on the application. DYAD DS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's.

Vehicles may experience some floater noise during operation. Components are designed, machined and assembled in the USA.

DYAD DS clutches are match balanced and ready for installation using the included ARP fasteners.

Application Details:

• Liter: 2
• Cylinders: 4
• BlockType: L
• Fuel Delivery Type: FI
• Fuel Type: Gas
• Engine Destination: 4G63
• CC: 1997
• CID: 122
• Engine Bore Inches: 3.35
• Engine Bore Metric: 85
• Engine Stroke Inches: 3.46
• Engine Stroke Metric: 88
• Aspiration Name: Turbocharged
• Cylinder Head Type: DOHC
• Transmission Control Type: Manual

Details:

• Clutch Disc Diameter: 222.3
• Counterweight Assist: No
• Crankshaft Bolt Hole Quantity: 7
• Disc Material: Organic/Kevlar
• Disc Type: Full face
• Disc Type (Sprung/Solid): Solid
• Flywheel Crank Bolt Size: M12 x 1.50 x 15
• Input Shaft Diameter: 1
• Input Spline Quantity: 23
• Material: Organic
• Mounting Hardware Included: Yes
• Out of Package Weight: 32.4
• Ring Gear Outside Diameter: 11.513
• Tooth Quantity: 114
• Torque Capacity: 300-600 Torque Capacity
• Made in the USA: Assembled

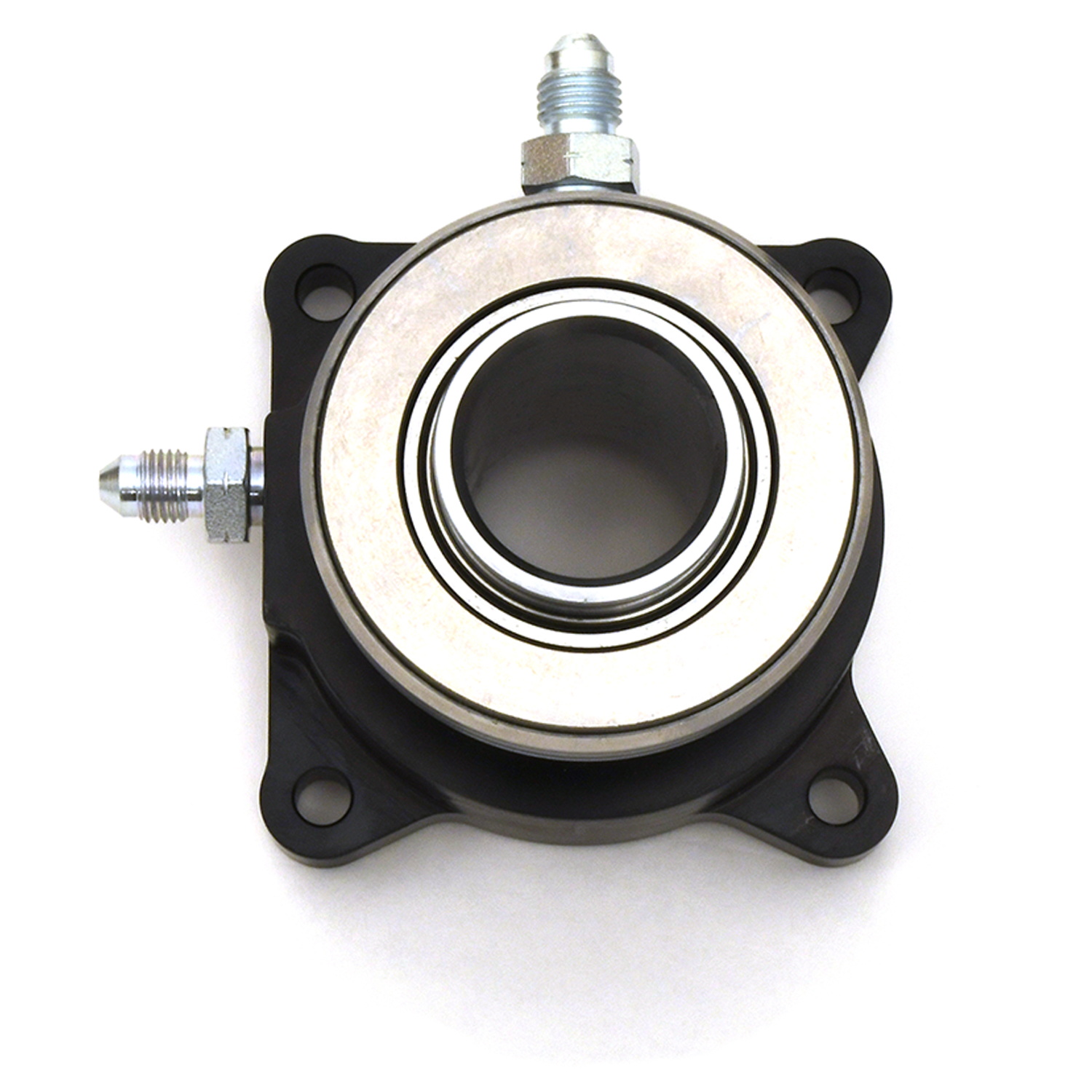

Fits EVO IV, V, VI, VII, VIII and IX, Push Conversion, Steel Flywheel, Includes Slave
