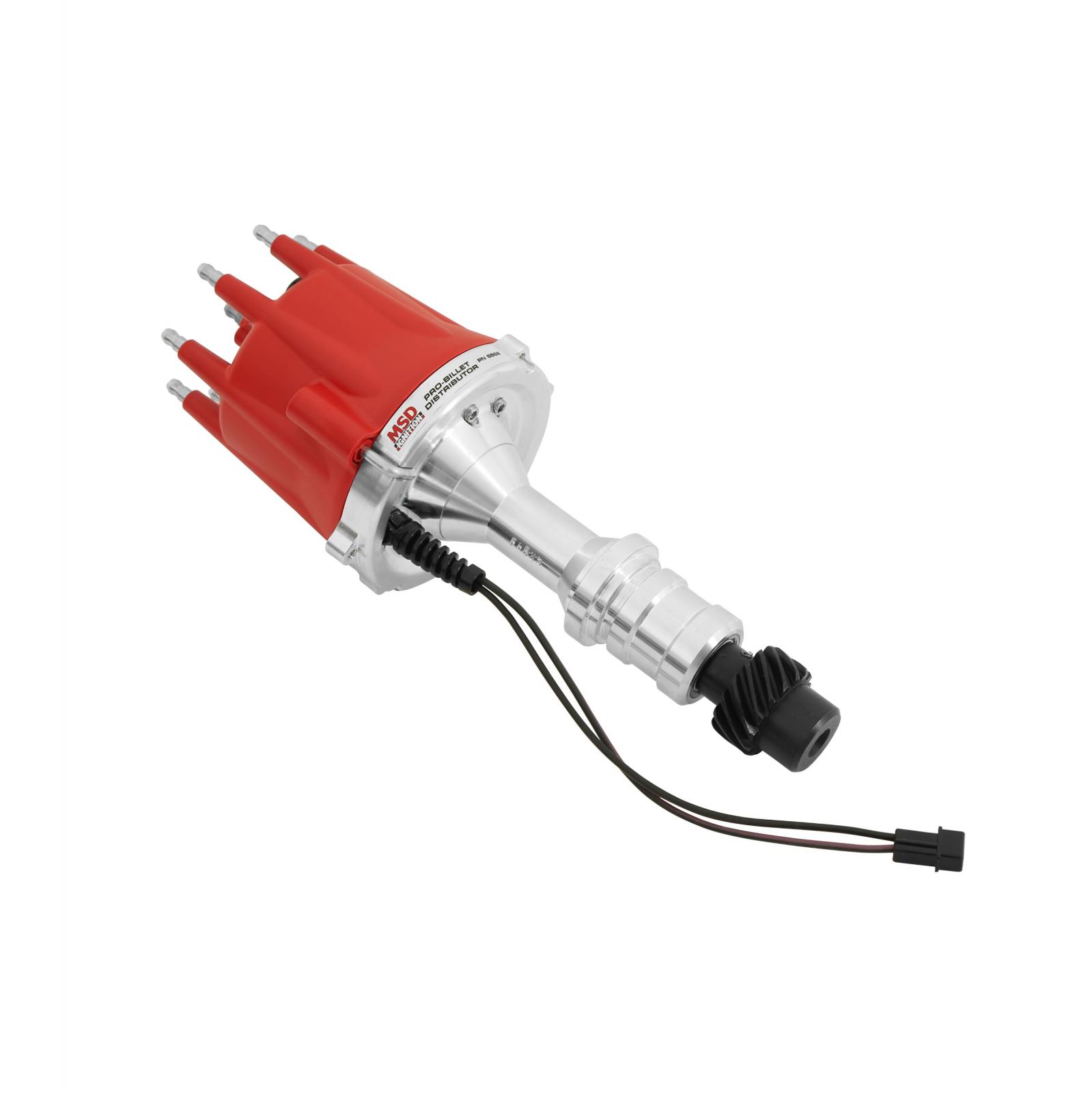

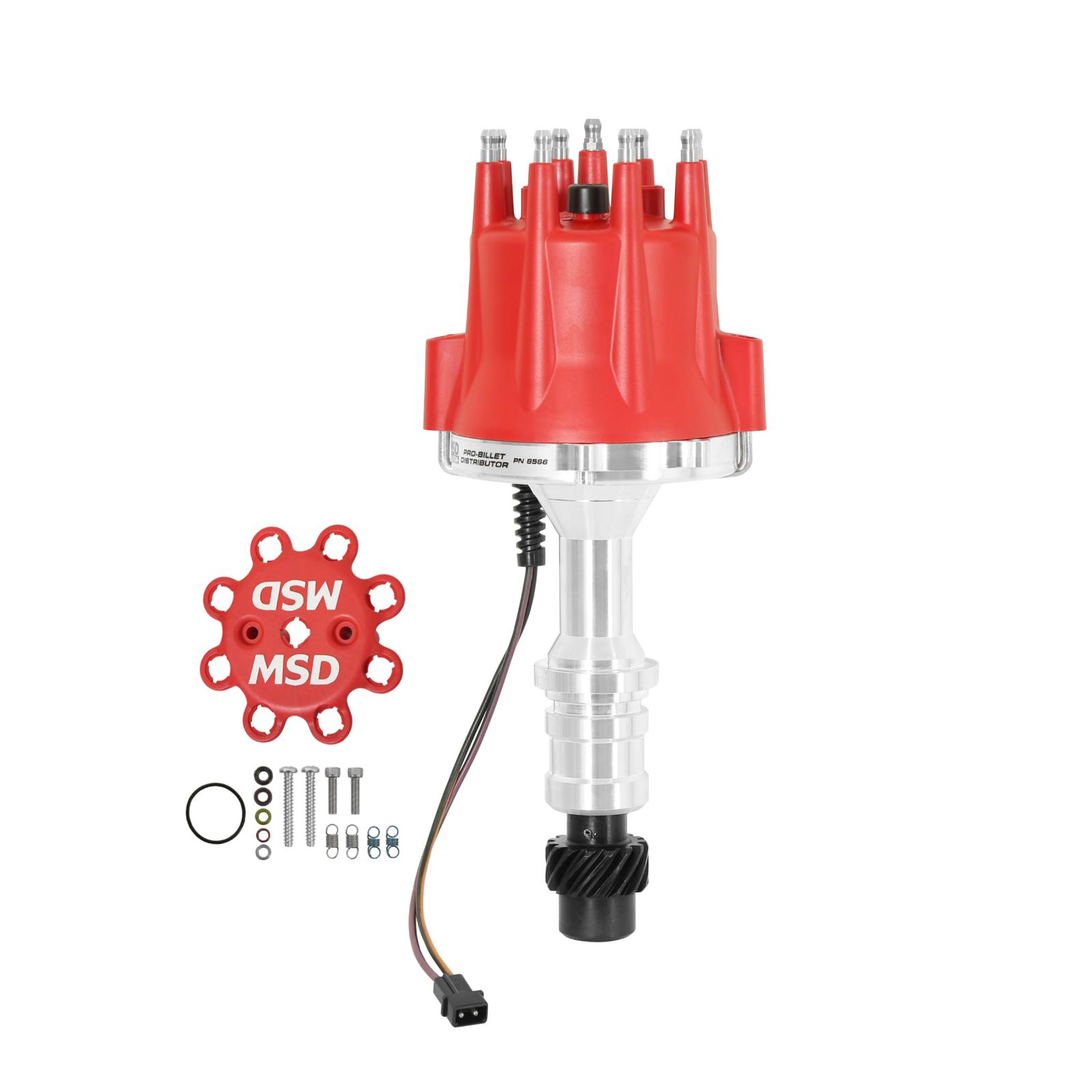

TIG-welded on top of the polished steel shaft is MSD's adjustable mechanical advance assembly. To accurately trigger the ignition, a high-output magnetic pick-up is bolted to the base. This trigger pick-up produces a precise trigger signal. An MSD red cap with brass terminals and Race Rotor are supplied.

• Sharing the CNC machining techniques with the rest of the MSD Distributor line, the Olds housing is machined from high quality 6061-T6 aluminum. Adding to this strength are two sealed ball bearings that guide the 0.500 Inch shaft accurately through 10,000+ rpm.
• CNC machined billet aluminum housing and billet aluminum base
• Must be used with an MSD Ignition Control
• Advance weight pins are staked and tig welded to the plate
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Will not accept a vacuum advance canister
• Polished steel shaft is QPQ coated and guided by two sealed ball bearings
• Nylon pads ensure smooth operation of the advance weights
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• No CARB Exemption Order Number
• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems

Details:

• Distributor Cap Included: Yes
• Distributor Type: Magnetic Pickup
• Emission Code: 3

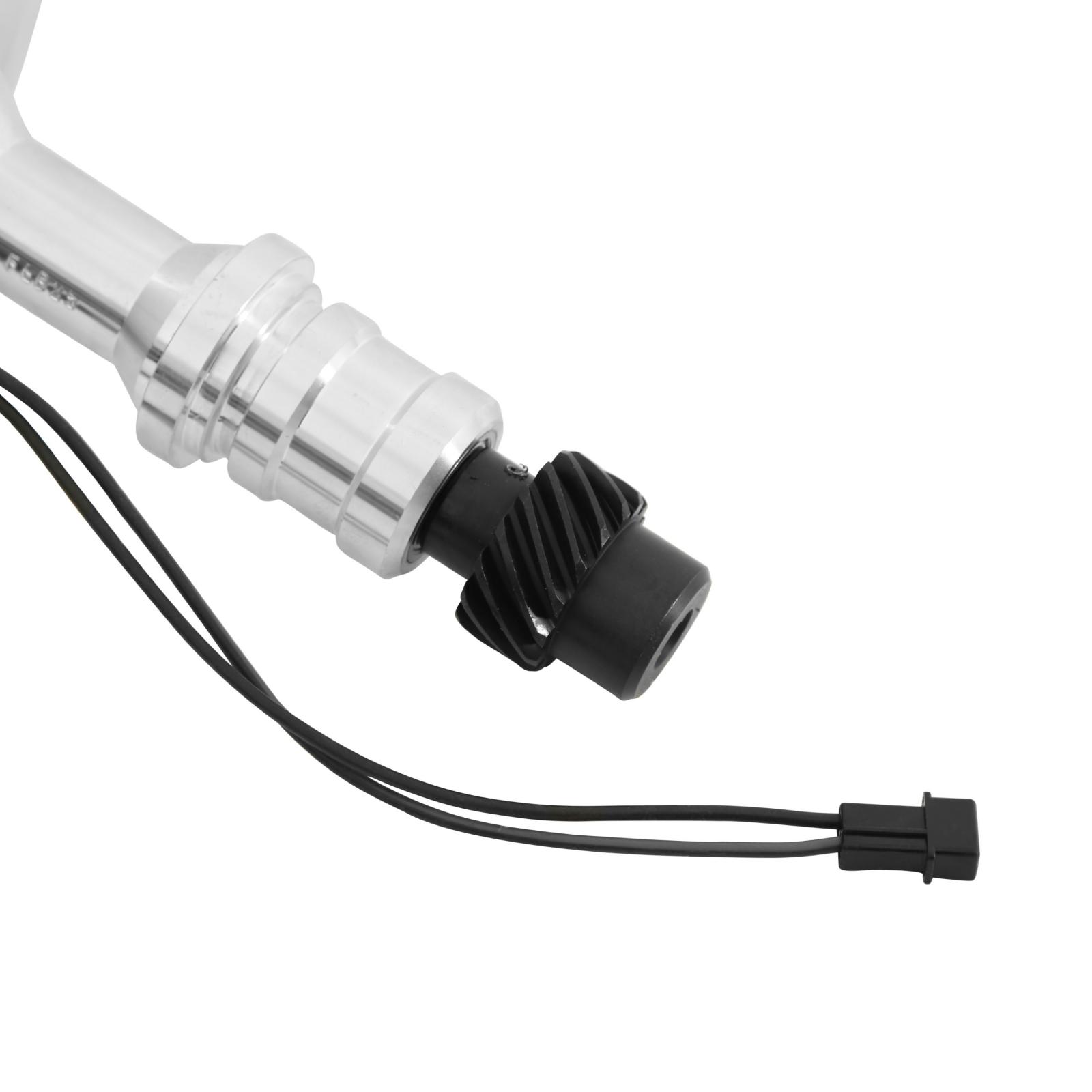

• Gear Material: Cast Iron Melonized QPQ Coated
• Ignition Box Required: Yes
• Ignition Coil Included: No
• Ignition Rotor Included: Yes
• Warranty: Manufacturer's Limited 1 Year Warranty
