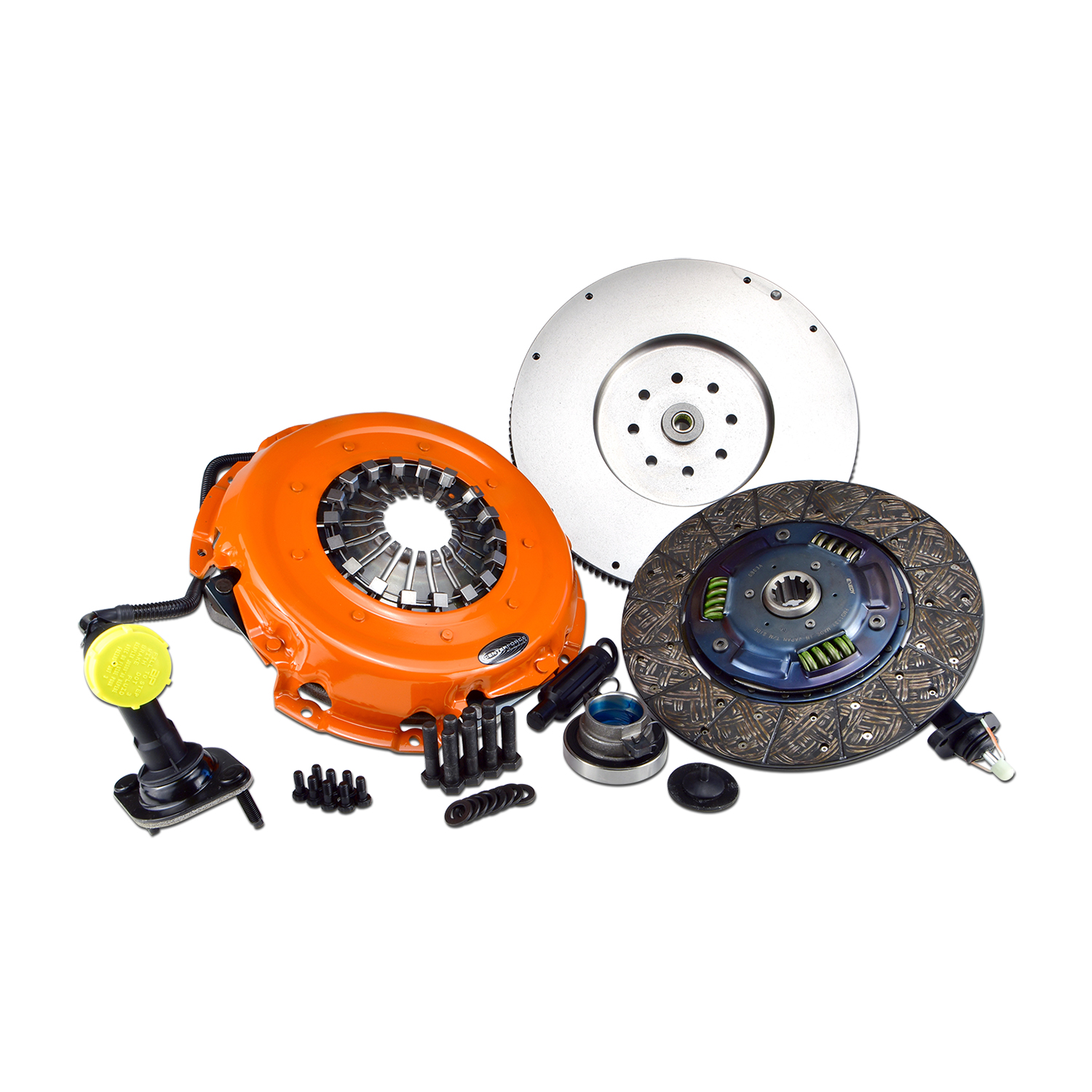

The Centerforce II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications.

Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Application Details:

• Liter: 6.7
• Cylinders: 6
• BlockType: L
• Fuel Delivery Type: FI
• Fuel Type: DIESEL
• CID: 408
• Engine Bore Inches: 4.2126
• Engine Bore Metric: 107
• Engine Stroke Inches: 4.8819
• Engine Stroke Metric: 124
• Aspiration Name: Turbocharged
• Engine Manufactuer: Cummins
• Transmission Speeds: 6
• Transmission Control Type: Manual

Details:

• Alignment Tool Included: Yes
• Clutch Bolt Pattern: 23
• Clutch Disc Diameter: 330.2
• Counterweight Assist: Yes
• Crankshaft Bolt Hole Quantity: 8
• Disc Material: Organic
• Disc Quantity: 1
• Disc Type: Full Face
• Disc Type (Sprung/Solid): Sprung
• Flywheel Counter Balance Weight: 0
• Flywheel Crank Bolt Size: 12
• Input Shaft Diameter: 39450
• Input Spline Quantity: 10
• Material: Cast Iron Pressure Plate / Organic Friction
• Mounting Hardware Included: Yes
• Pilot Bushing Included: Yes
• Release Bearing Included: Yes
• Ring Gear Outside Diameter: 15.625
• Tooth Quantity: 152
• Torque Capacity: 800
• Made in the USA: Assembled

G56 - Single Mass Flywheel Conversion, May Cause Drivetrain Noise
