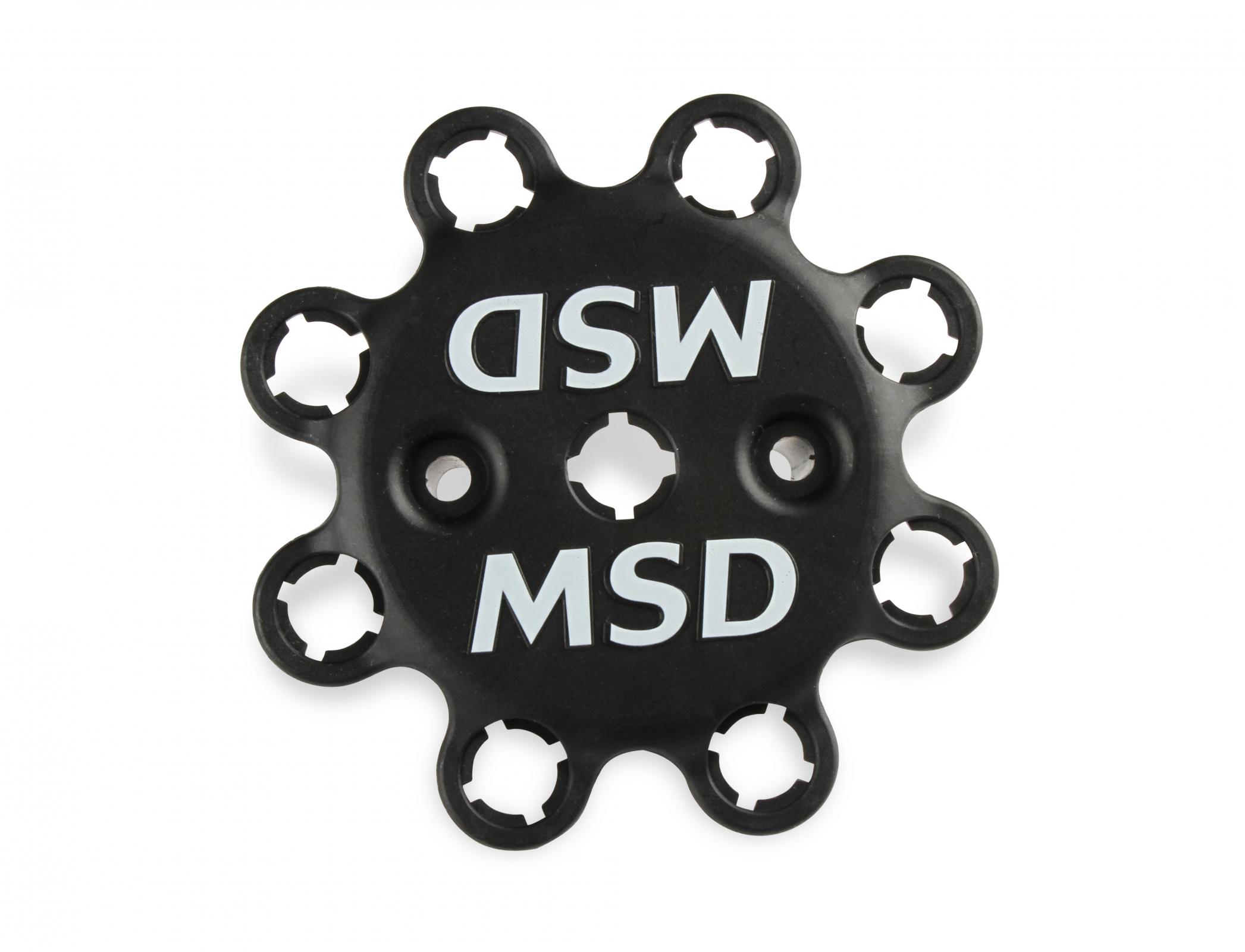

Each distributor is CNC-machined from billet aluminum creating a strong foundation. The caps are MSD designed and molded from Dupont Rynite TM material for great strength and resistance to spark scatter. A great new feature is the two piece adjustable rotor that is supplied. This assists in setting up the proper rotor phasing for accurate timing and spark control.

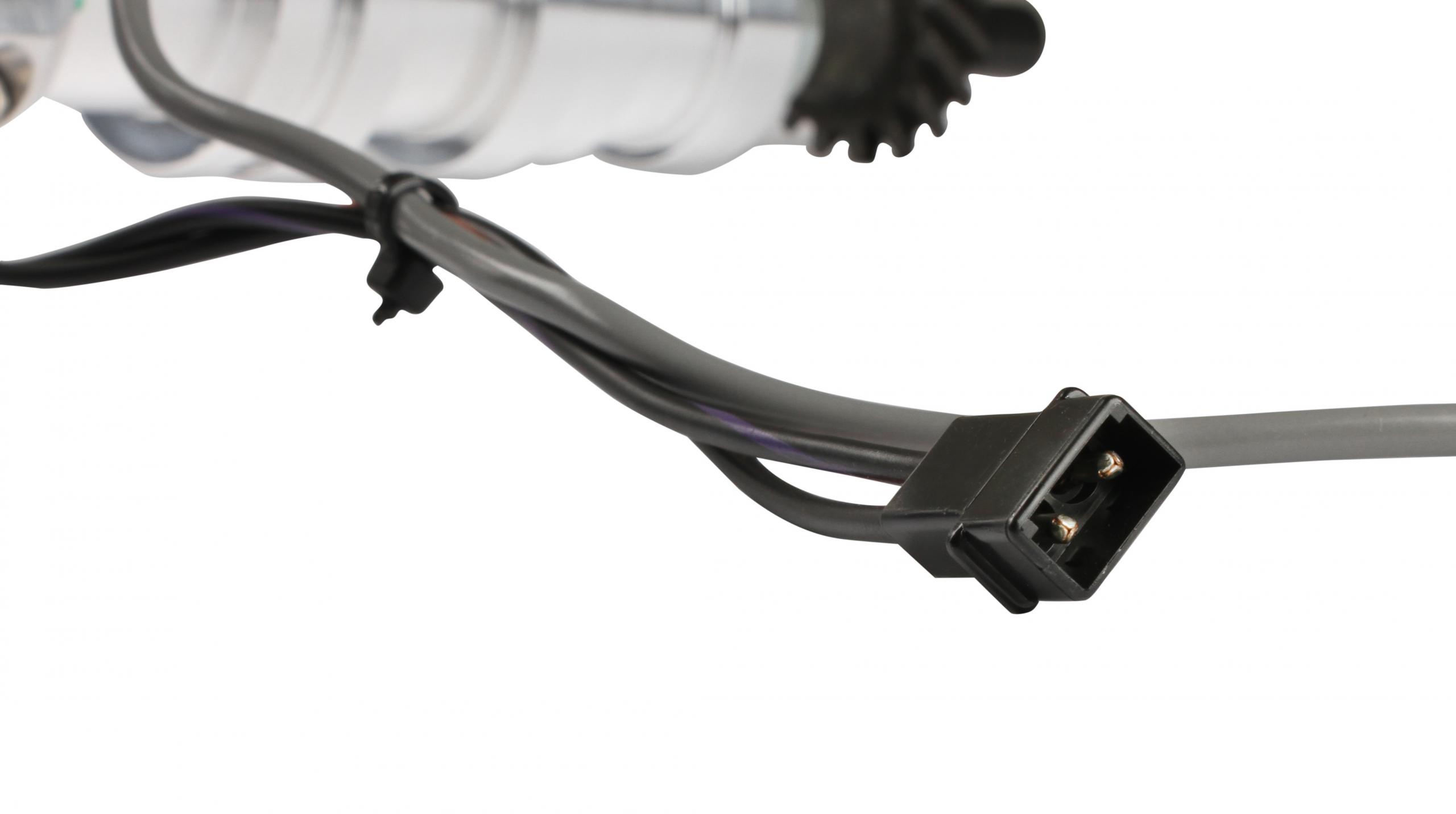

• This Pro-Billet Distributor from MSD features an adjustable cam sync pickup as well as a magnetic pickup inside the distributor to trigger the ignition control. The Hall-effect sync pickup is adjustable up to 60 Degree BTDC to meet the needs of most aftermarket ECUs and even is crimped with a 2-pin Weathertight connector.
• If you plan on using an aftermarket EFI system that fires sequentially, you'll need to provide the ECU with a cam synchronization signal. The ECU requires to know when cylinder number one is firing (or preparing to fire) so it knows the sequence of the injectors coming next.
• Supplied with Steel Gear
• Adjustable cam sync pickup
• Must be used with an MSD 6, 7 or 8-Series Ignition.

Details:

• Distributor Cap Included: Yes
• Distributor Type: Cam Sync
• Emission Code: 4
• Engine: Ford FE Block
• Gear: Steel
• Gear Material: Steel Melonized QPQ Coated
• Ignition Box Required: Yes
• Ignition Coil Included: No
• Ignition Rotor Included: Yes
• Warranty: Manufacturer's Limited 1 Year Warranty
