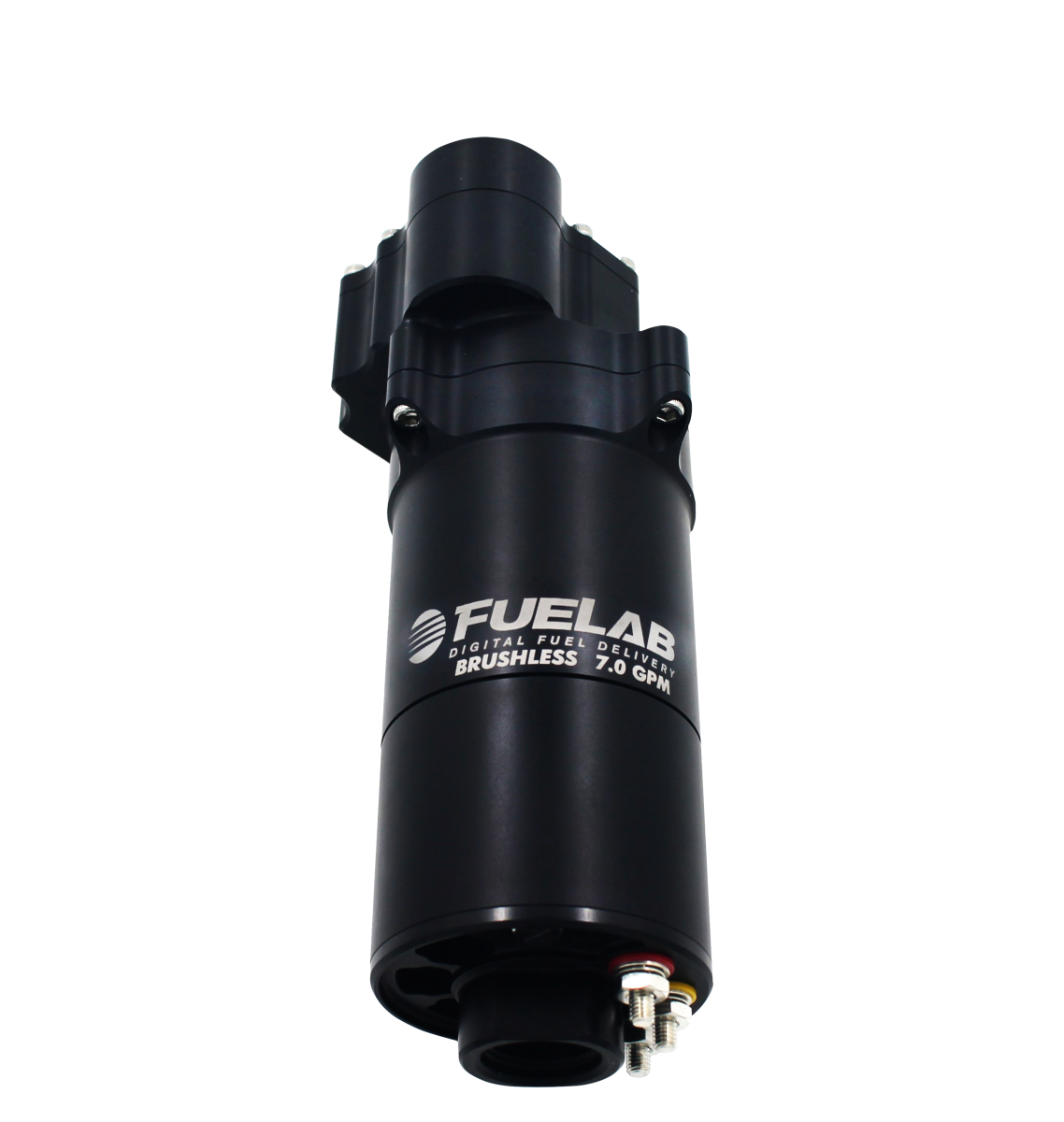

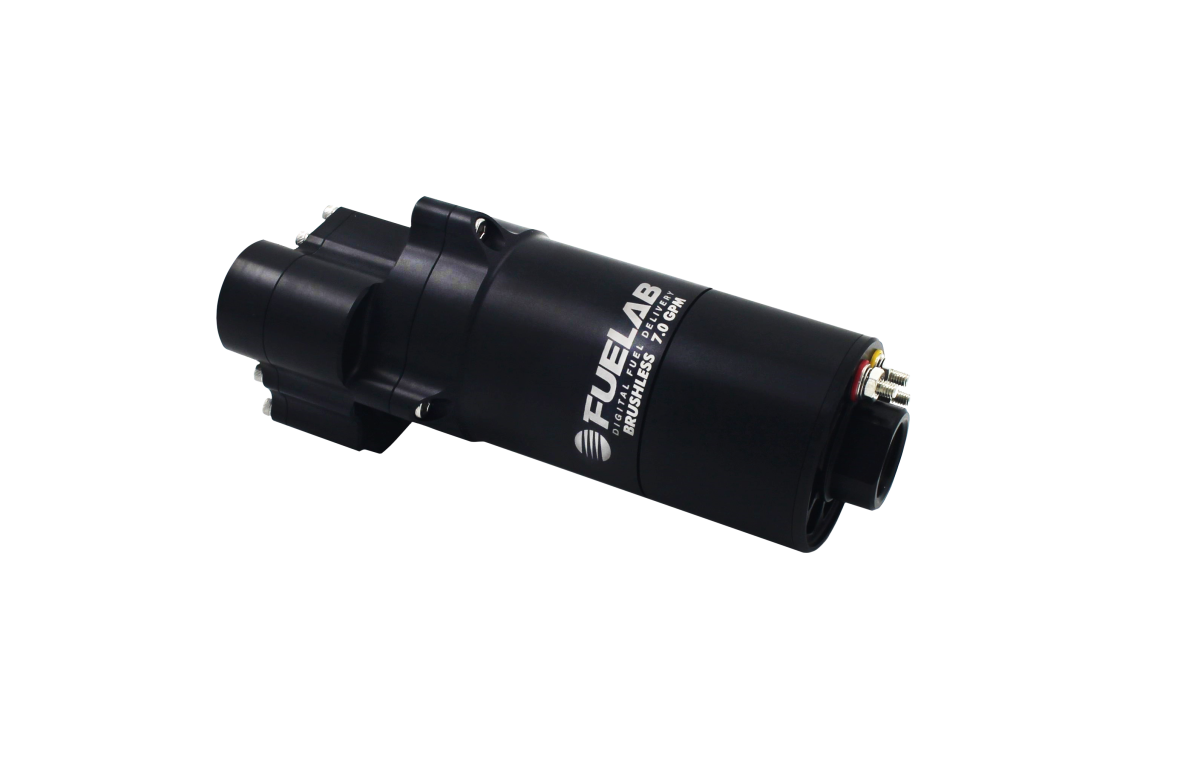

PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump, 7 GPM Spur Gear. 7.0 GPM at 45PSI, 100 PSI MAX - Rated up to 4800 Plus HP - Power and efficiency at it's best!

Attention: The 40502 Pro Series Fuel Pumps Must Be Used With Regulators With A Return Capacity Of 10 Gal/Min Or More !!! Fuelab 565Xx Series Recommended.

Pump Features:

• Compatible with gasoline, diesel, ethanol and methanol
• High precision spur gear pumping mechanism
• -12AN Inlet and -10AN outlet Ports
• Backed by a limited lifetime warranty

Motor Features:

• Lightweight super-efficient DC brushless motor reduces current draw
• Low mass rotor for high speed reaction to changes in speed and flow
• Powerful high flux Neodymium rare earth magnets
• No motor brushes to wear out or corrode (low-Sulfur diesel, no problem)
• Wet motor design, no dynamic shaft seals that can wear out

Electronic Features:

• Internal Speed Controller for Variable flow operation
• 12 to 24 volt vehicle electrical system compatibility
• Accepts PWM input for speed control
• No expensive add-on voltage regulators or pump controllers required!
• Continuous duty - motor speed can be adjusted to meet fuel demand

Construction Features:

• Compact, powerful and lightweight - 3.5lbs, overall length 7.7 inch, diameter 3.31 inch
• Billet Aluminum construction with Anodize per MIL-A-8625, Type II
• High quality T-Style Mounting Brackets included
• Long Life multi-fuel compatible Fluorosilicone static seals
