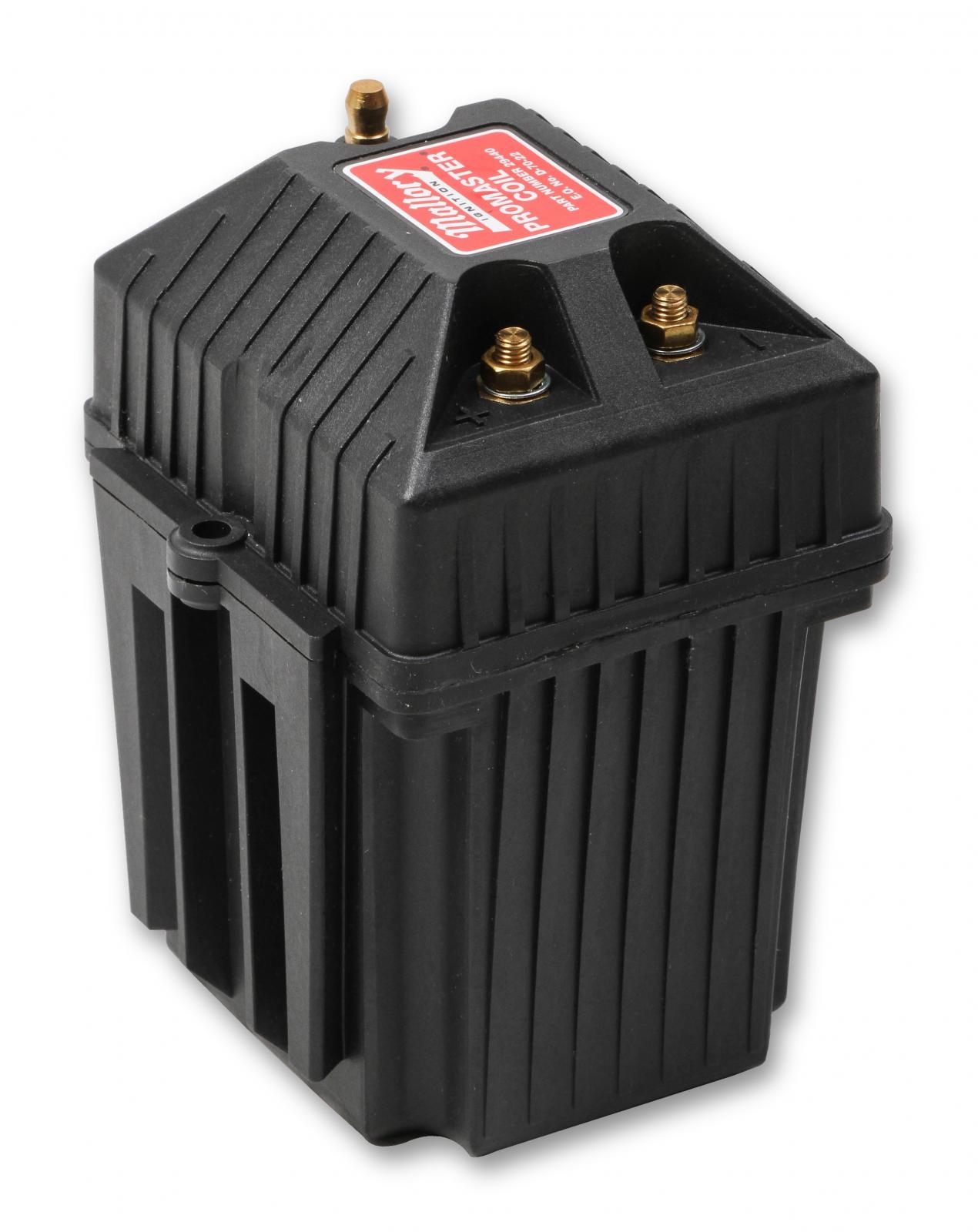

The Mallory Promaster Classic series ignition coil is designed to meet today's specialized ignition requirements. This coil features a faster rise time and increased spark duration (compared to stock) to increase performance. It has a glass-filled polyester case and oil-filled construction to ensure a long life and no energy loss from arcing.

This coil also offers excellent wire retention with a spark plug type secondary post, and brass contact terminals.

Features and Benefits:

• Classic good looks
• High current / voltage output
• Spark plug style terminal for excellent coil wire retention
• Brass contact terminals

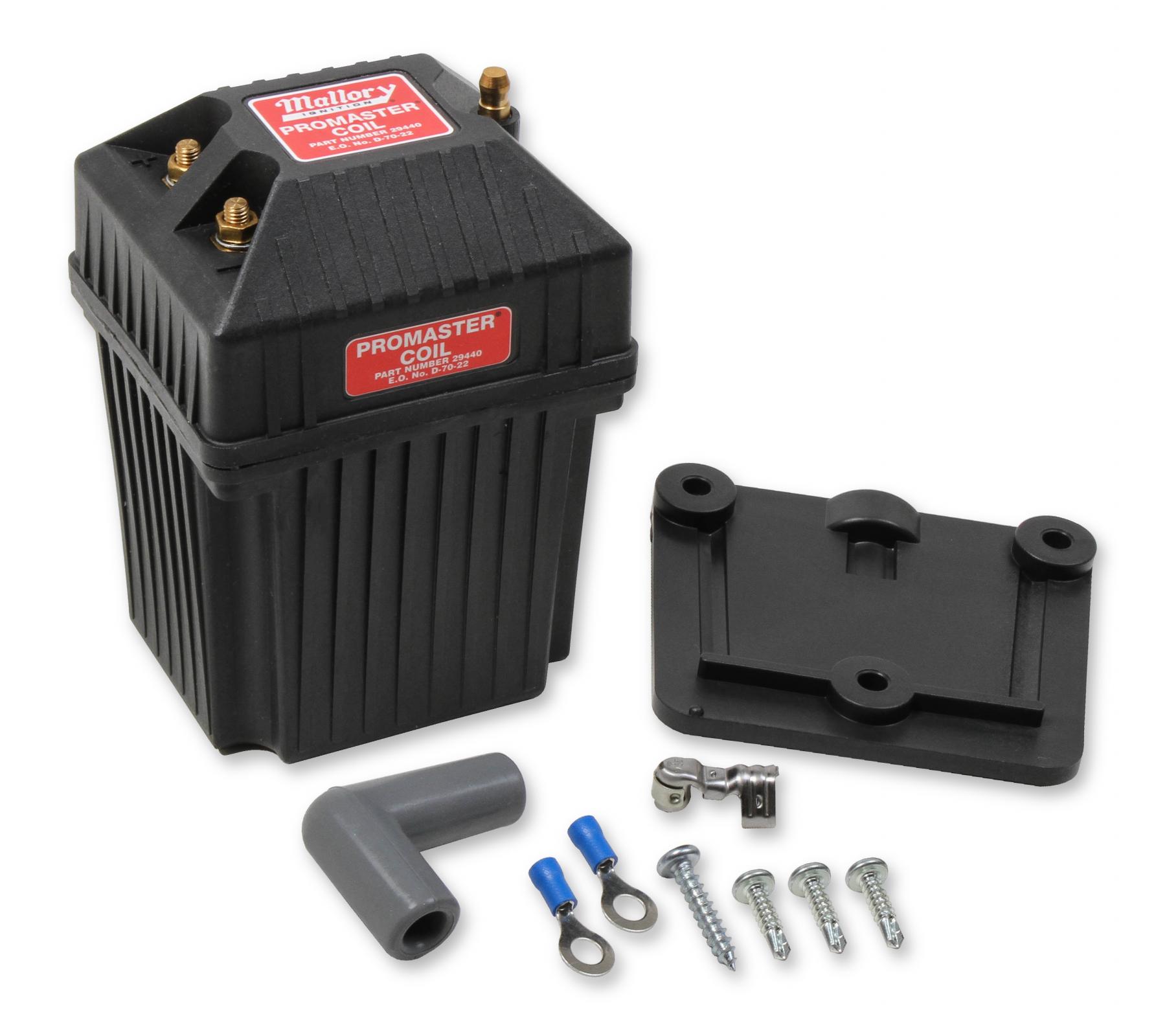

• Mounting bracket included
• Can be used on inductive and CD ignitions

Details:

• C.A.R.B. EO: D-70-22
• Emission Code: 1
• Inductance: 7.5 mH
• Maximum Voltage: 49,000 volts
• Peak Current: 66 mA
• Primary Resistance: .6 ohms
• Secondary Resistance: 11.3K Ohms
• Spark Duration: 3,600 uS
• Turns Ratio: 3.91736111111111

Associated Comments:

• Mounting bracket included
• Carb E.O. # D-70-22
