A Proportioning valve is recommended on 4 wheel disc brake applictions without ABS. This valve allows you to adjust the increase rate of the line pressure to the rear wheels for optimum overall braking performance with a trun of the knob.

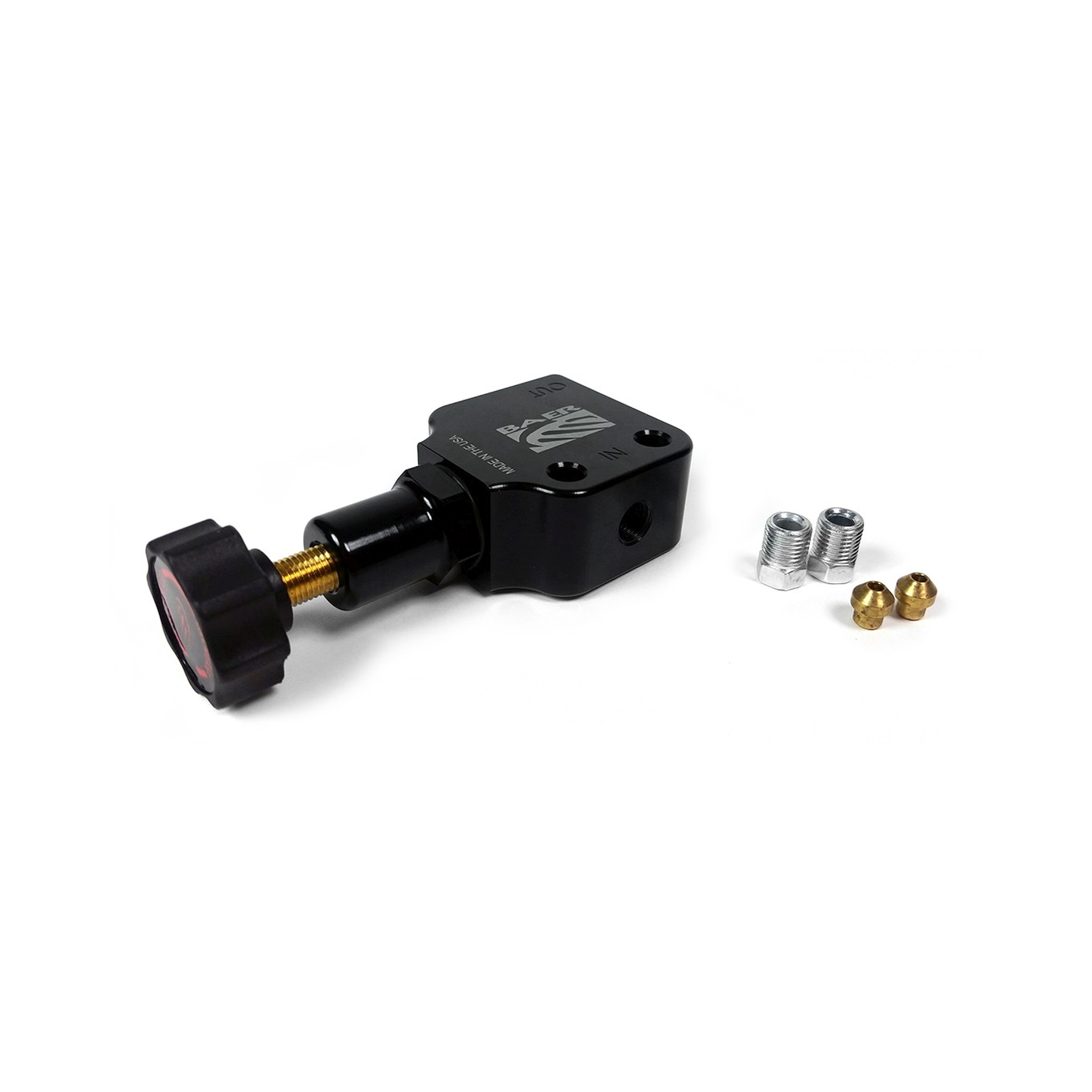

Featuring removable brass seats that when installed create a 3/16 inch inverted flare seat or when removed can accept banjo or straight 3/8-24 fittings. The valve includes 2) brass seats and 2) 3/8 inch x 24 tube nuts.

Features and Benefits:

• Includes tube nuts and brass seats
• 3/8-24 Thread, Iff w/included seats, Straight (Banjo) w/o seats
• Compatible with most brake systems
• Made in the USA
• Laser etched body
• Sold Individually

Details:

• Adjustment Style: Knob
• Box Count: 1
• Color: Black
• Connector For Warning Light: No
• Emission Code: 6
• Export Description: Brake Components
• Finish: Black anodized
• Fittings Included: Yes
• Grade Type: Premium
• Includes: 1x Proportioning Valve, 2x Brass Seats, 2x Tube Nuts
• Inlet Fitting: 3/16 Inch Inverted Flare and Tube Nuts w/ Brass Seat, Banjo w/o Brass Seat
• Inlet Port Inside Diameter: 3/8-24 Inch
• Inlet Port Quantity: 1
• Material: Aluminum
• Mounting Bracket Included: No
• Mounting Hardware Included: No
• Mounting Hole Quantity: 2
• Outlet Fitting: 3/16 Inch Inverted Flare and Tube Nuts w/ Brass Seat, Banjo w/o Brass Seat
• Outlet Port Inside Diameter: 0.375, 3/8
• Outlet Port Quantity: 1
• Outlet Port Size: 3/8-24 Inch
• Port Exit: In-line
• Quantity: Sold Individually
• Removable Seats: Yes
• Series: Remaster
• Valve Type: Adjustable
