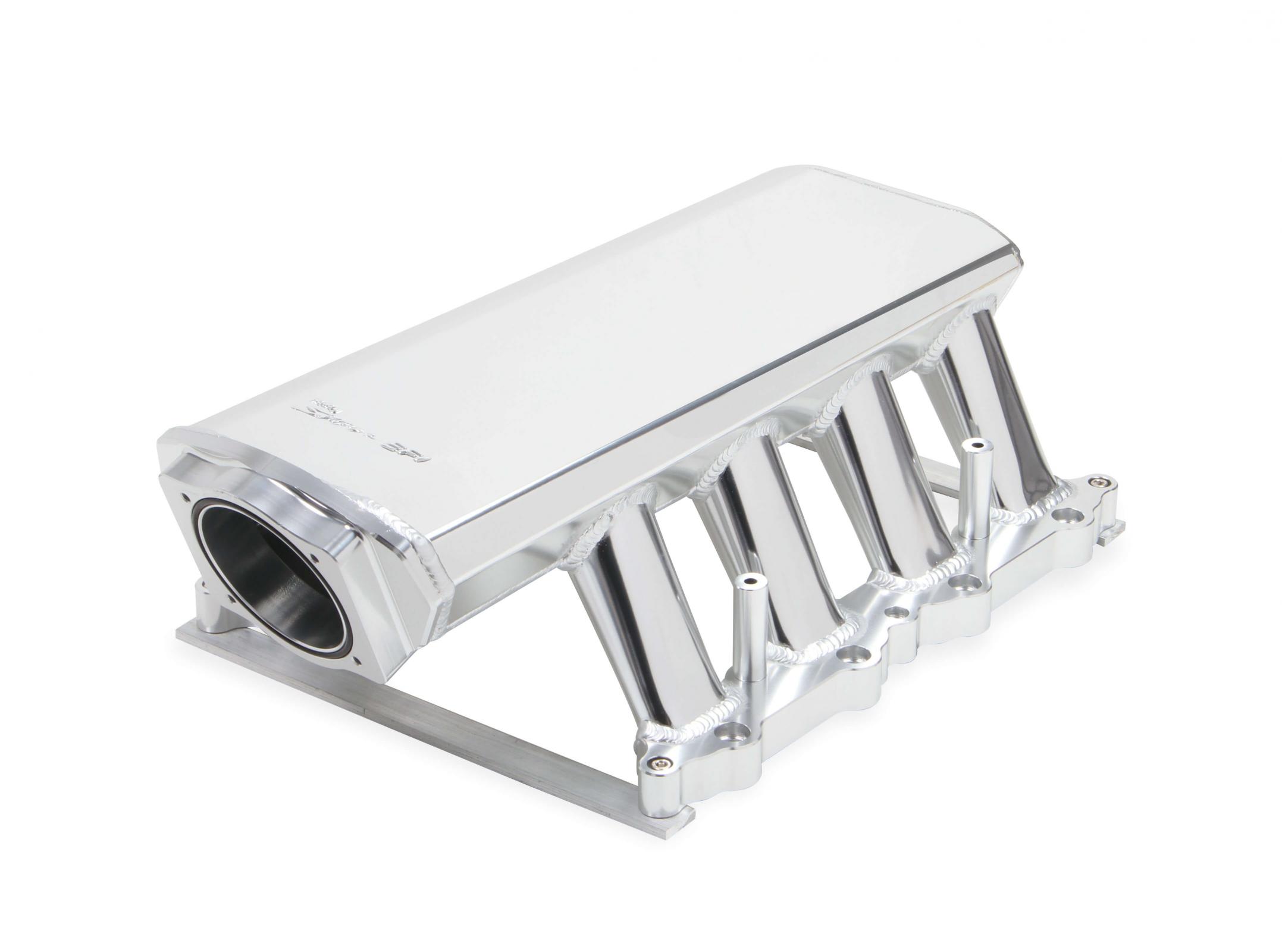

Holley continues to expand its offering of Sheet Metal Fabricated Intake Manifolds to now cover 2015-2017 Ford Coyote 5.0L V8 engines.

• Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response.
• Silver finish creates high impact under-hood styling.
• Product includes all gaskets and hardware for a hassle-free installation.
• 90mm throttle bore opening for increased air flow.
• Includes 3/8 inch Fuel rail kits (Sniper logo laser engraved).
• 100 percent TIG welded for strength and durability.
• 3mm (1/8 inch) thick T6061 sheet aluminum construction for maximum durability.

Details:

• Basic Operating RPM Range: 2200-6800 RPM
• Carburetor Studs Included: No
• CNC Ported: No
• Color: Silver
• Construction: Fabricated

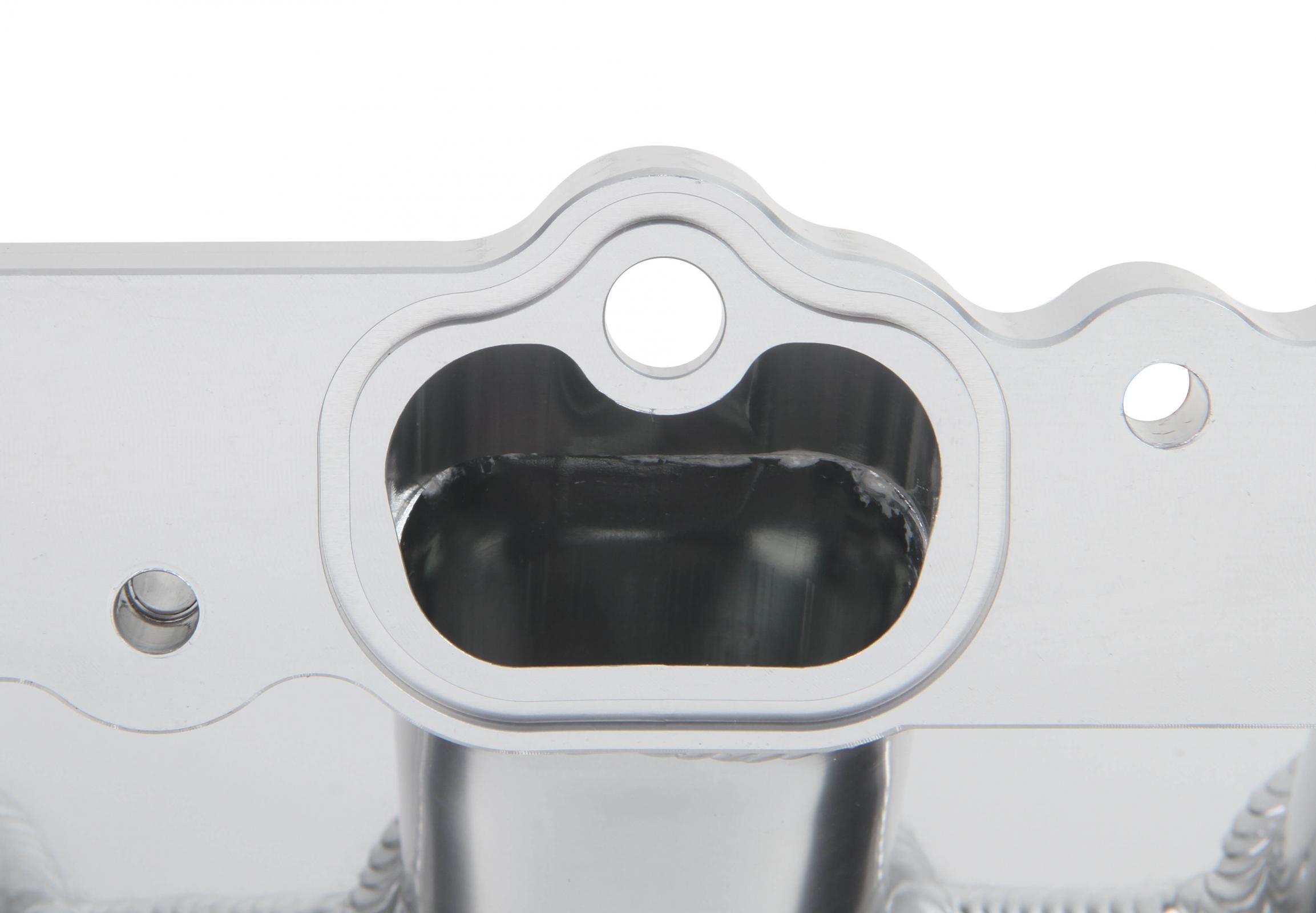

• Cylinder Head Port Shape: Oval with dimple
• Deck Height: 8.937 Inch
• EGR Port: No
• Emission Code: 4
• Engine: Ford Coyote
• Front Maximum Height: 7.165 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: Yes
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Injector Style Provision: EV6 USCAR
• Intake Port Gasket(s) Included: Yes
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Silver
• Rear Maximum Height: 6.574 Inch
• Removable Runners: No
• Removable Top/Lid: No
• Runner Length: 5.709 inch (145mm)
• Single Or Dual Plane Type: Single
• Style: EFI
• Throttle Body Bore Diameter: 90 Millimeter
• Throttle Body Gasket Included: Yes
• Throttle Body Included: No
• Throttle Bore: 90mm
• Vacuum Ports: (3) 1/8 inch-28BSPT & (1) 1/4 inch-19BSPT
• Warranty: Manufacturer's Limited 90 Day Warranty
