SKU
300-261-BBVL
List price
$480.95
Price
$383.95

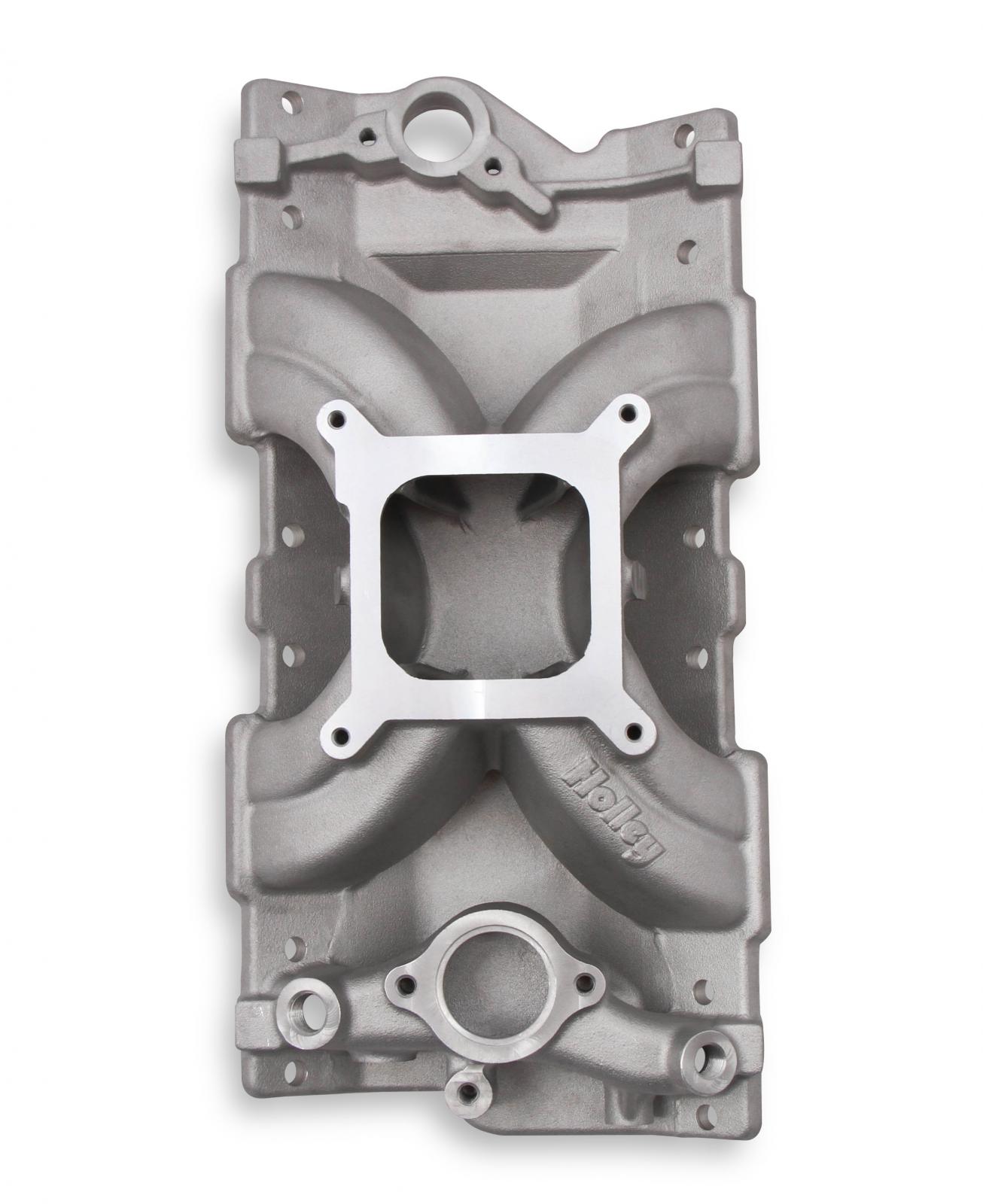

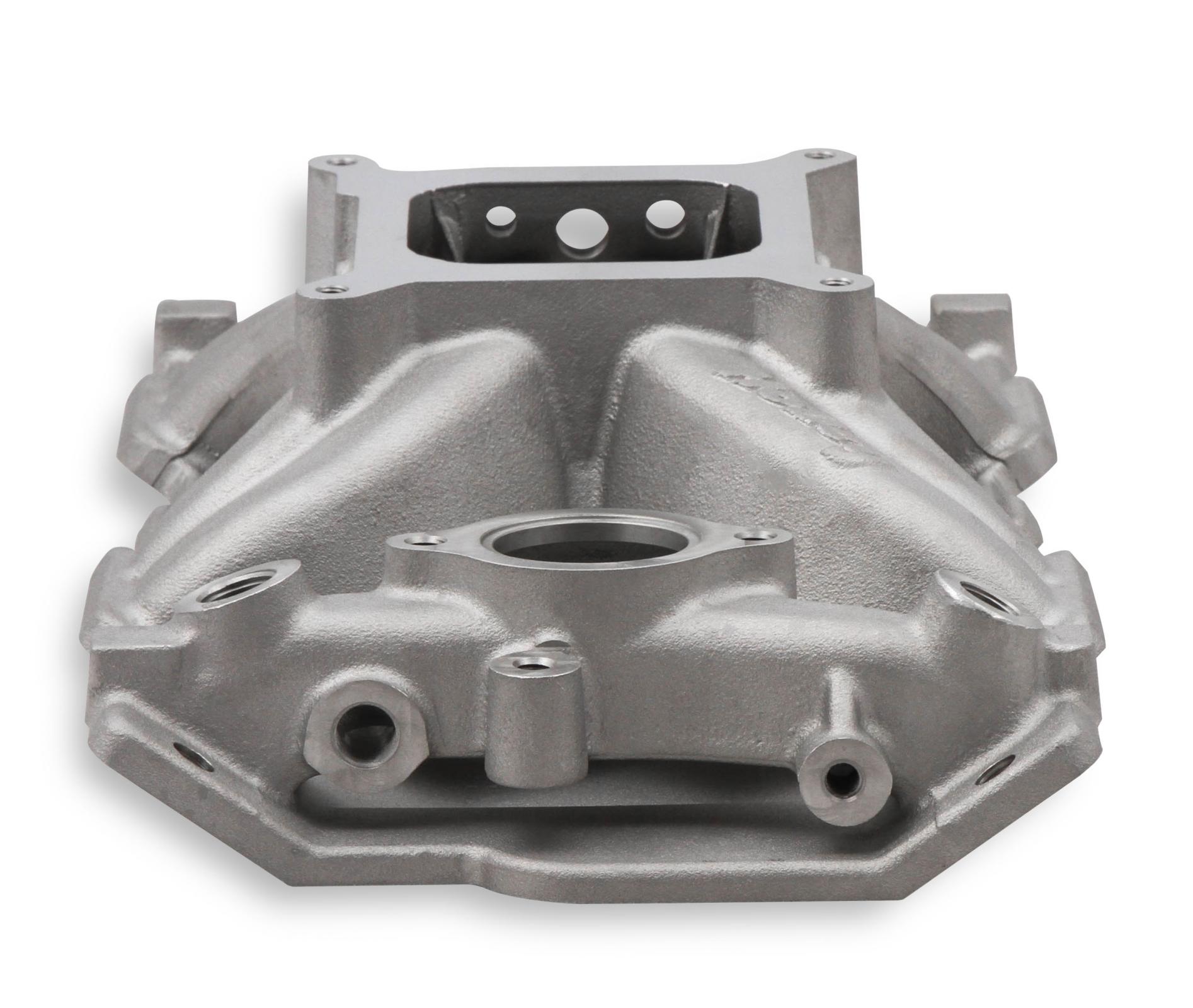

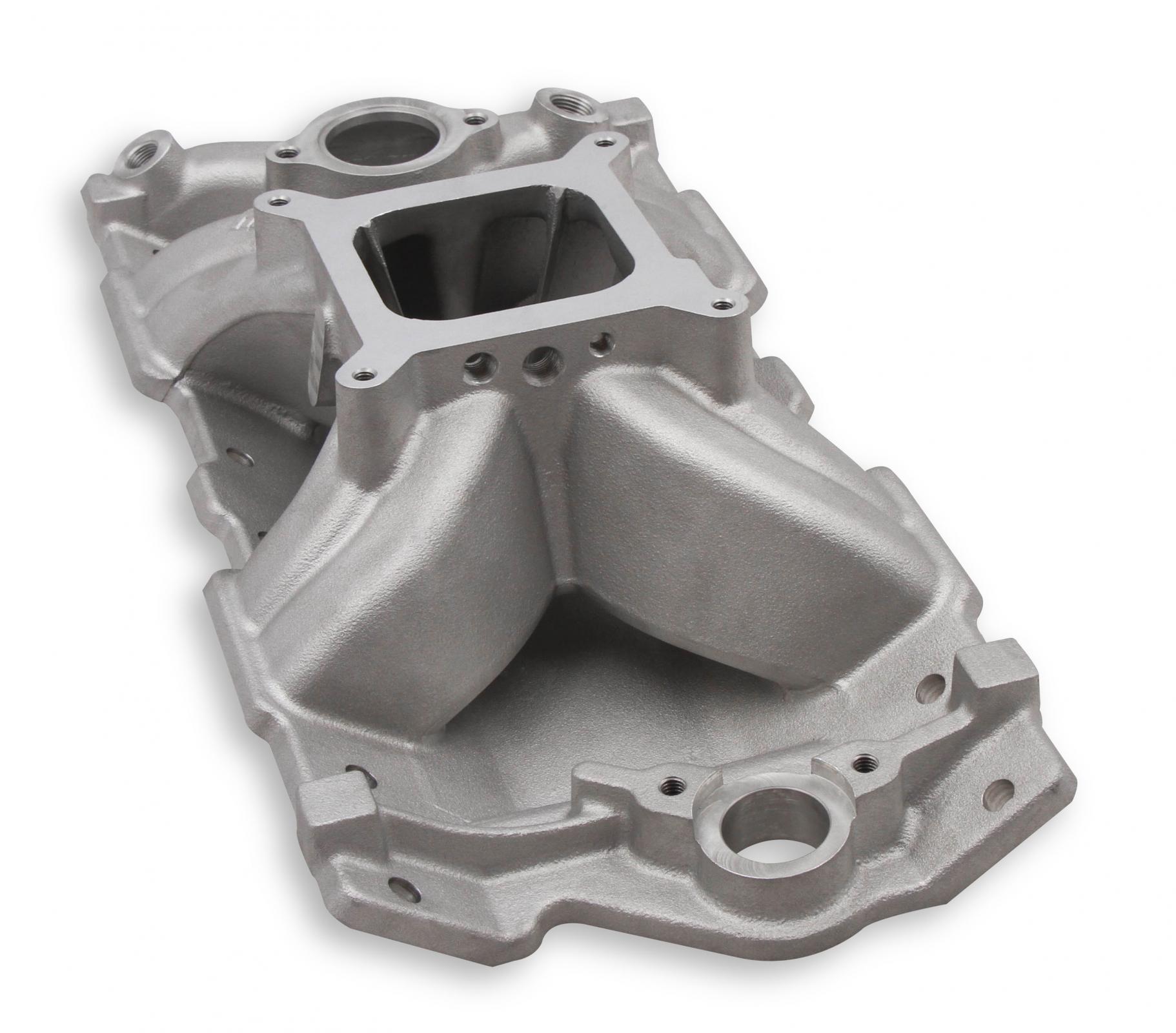

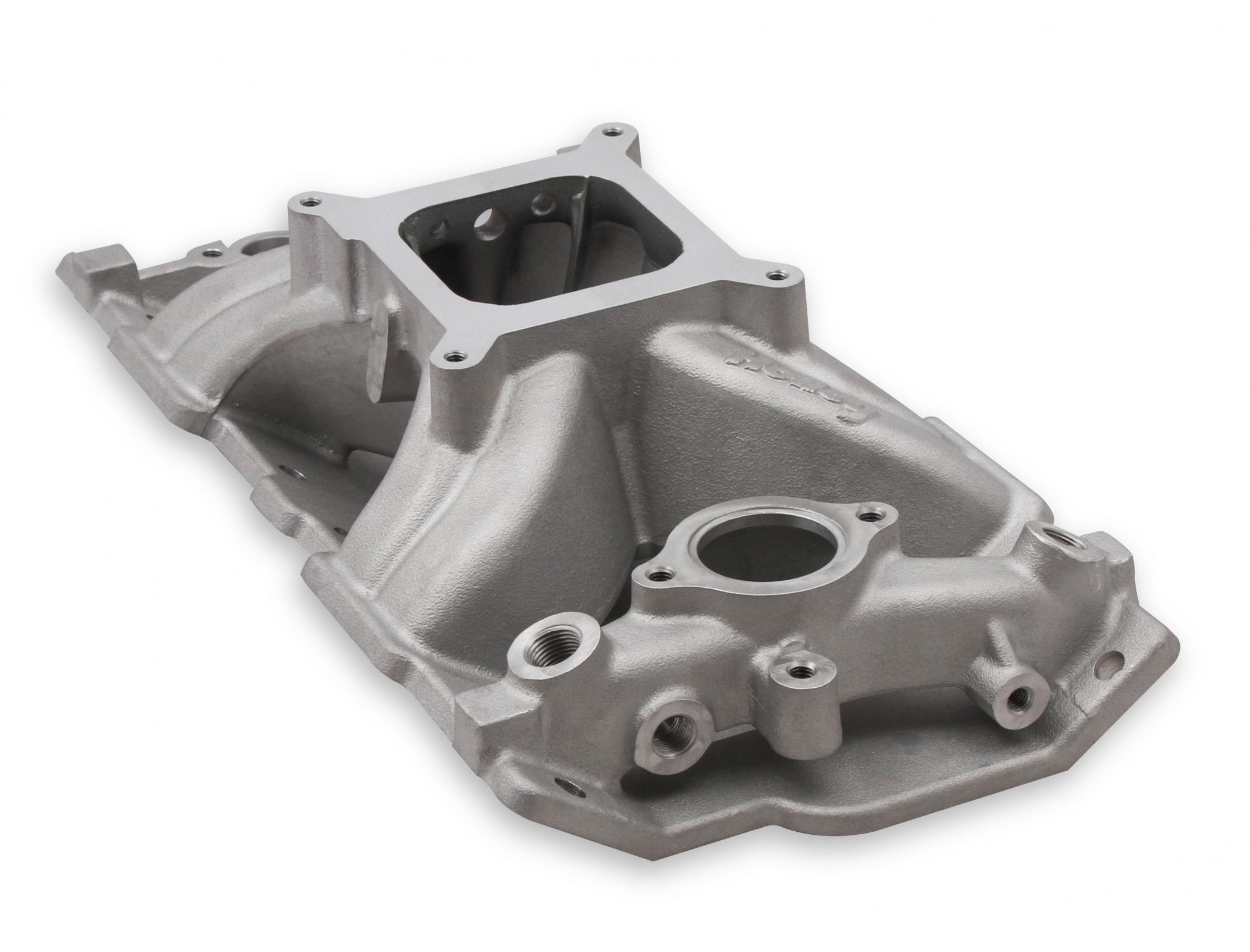

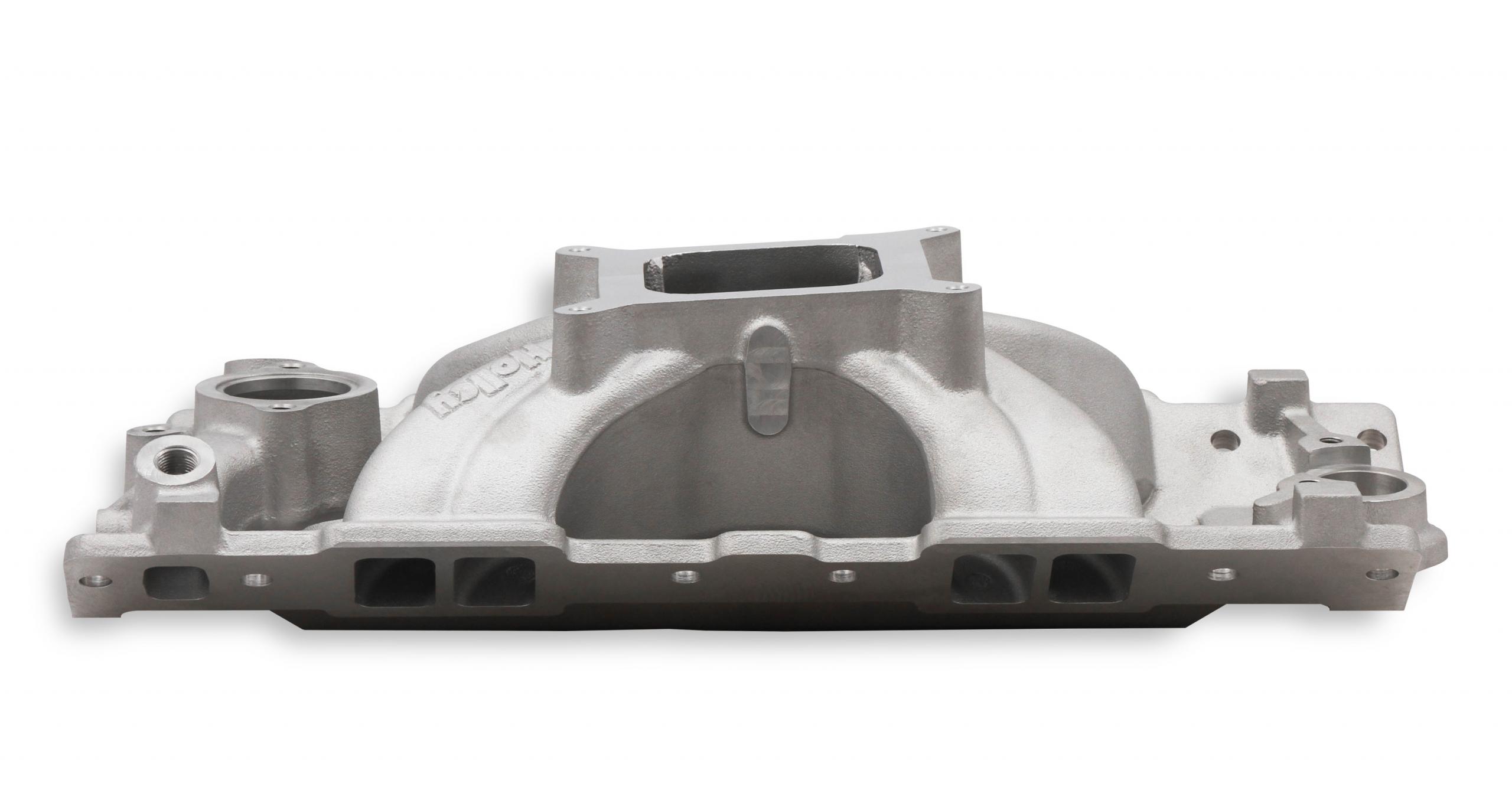

The 300-261 intake manifolds are designed for square-bore carburetor applications on 1957-86 262-400cid Small Block Chevrolet engines and Sbc engines equipped with 1987-91 L98 aluminum Corvette cylinder heads (non-Egr applications). Also, these manifolds will work with any Sbc engine equipped with aftermarket cylinder heads, as long as they have a standard port flange opening and mounting bolt locations.

The new single plane intake manifold is designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carburetor-mounting pad is designed to accept all stock or aftermarket square-bore carburetors with manual or electric chokes.

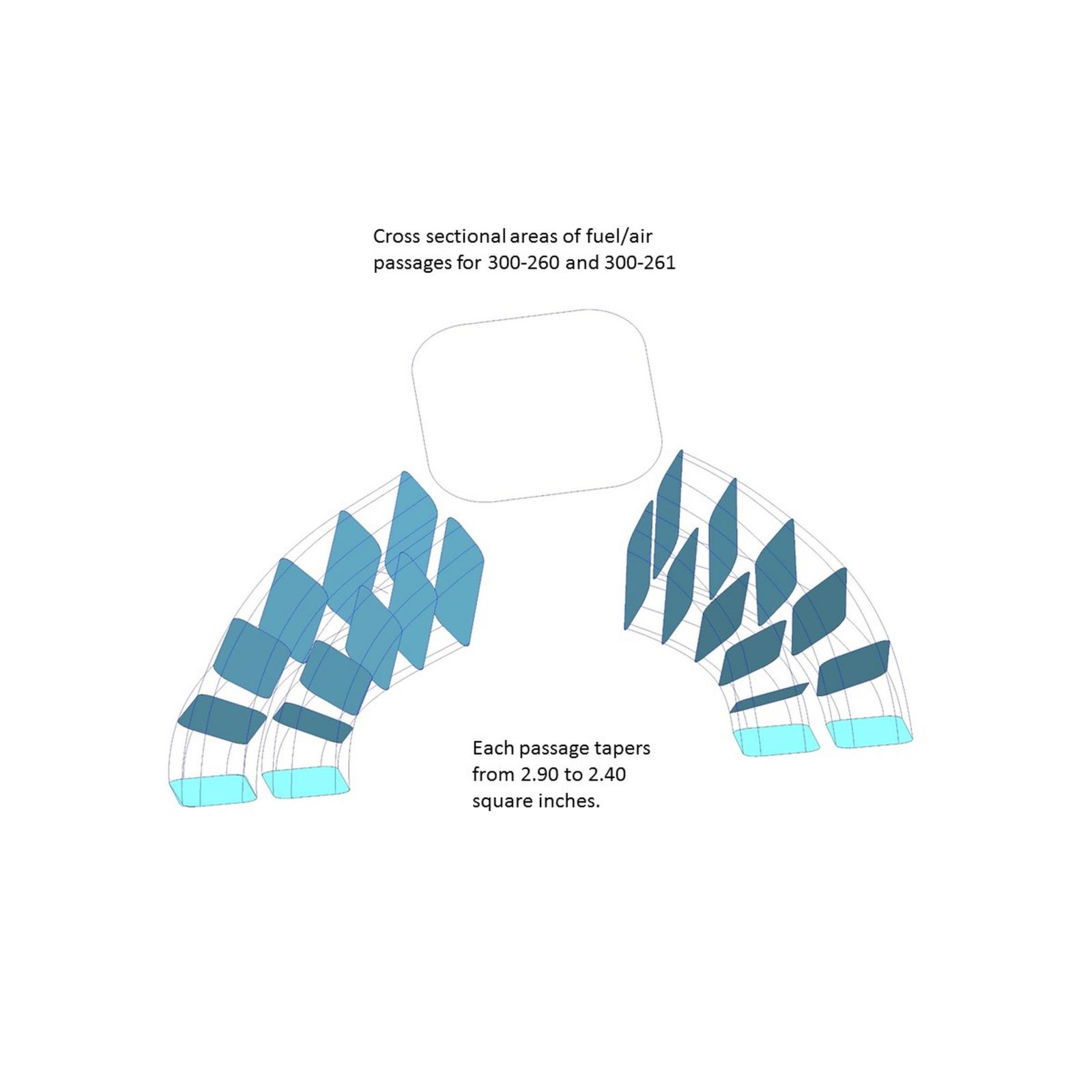

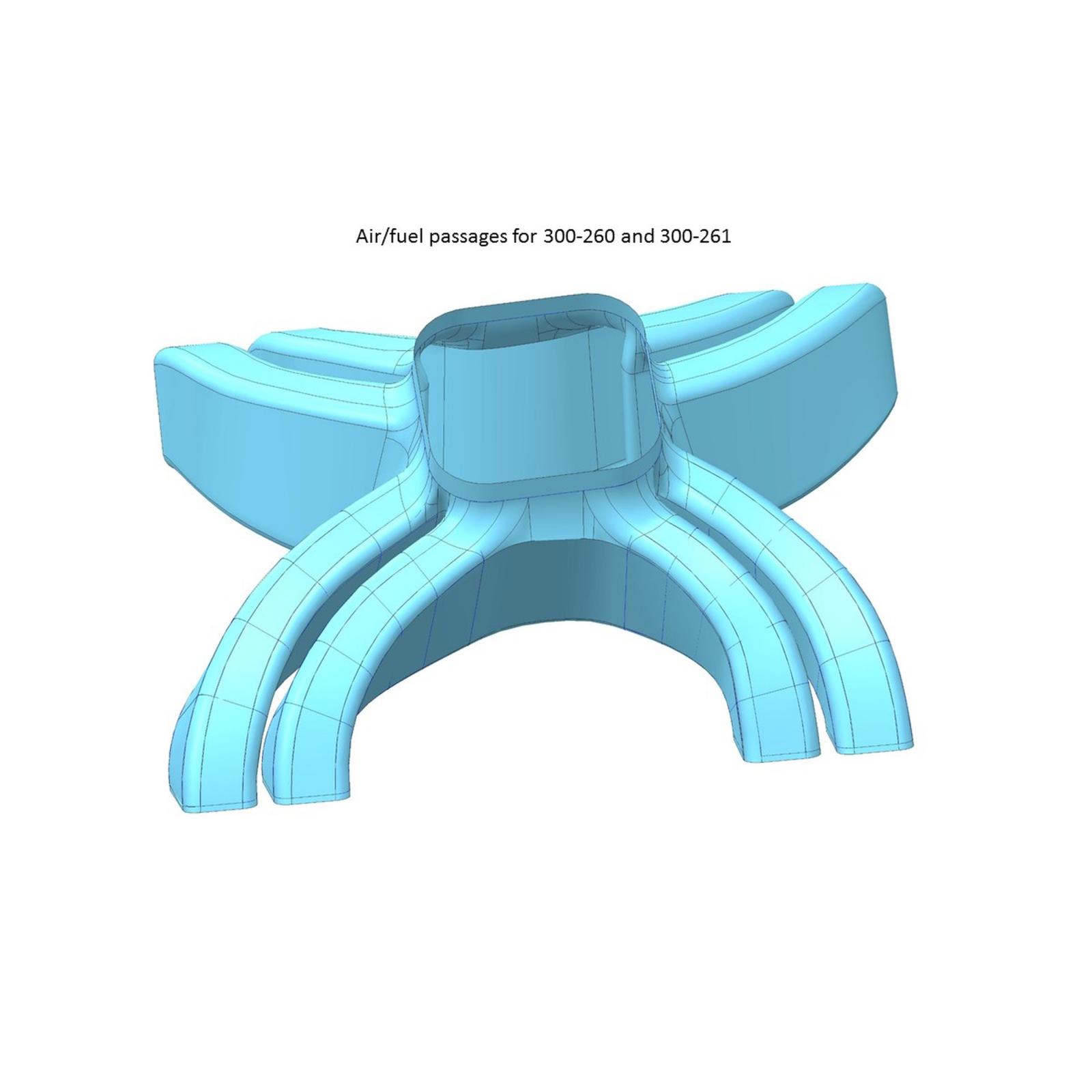

These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features, like an updated plenum divider area, a 1 inch shorter height than the 300-25 manifold, and a choice of two distributor clamp locations. The isolated design of the air/fuel passages helps to increase charge air density and performance.

Features and Benefits:

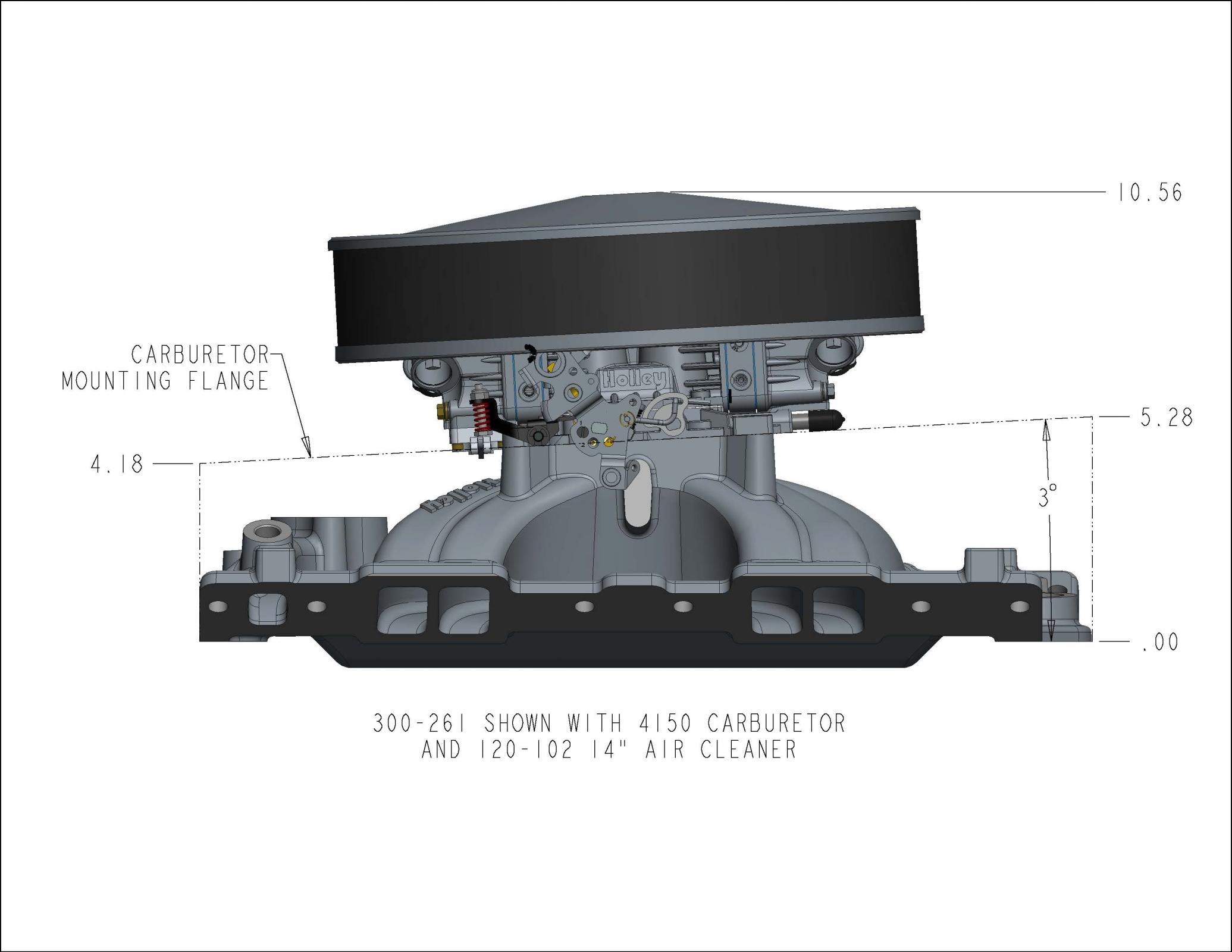

  • Power band: 2500-7500 RPM Square Bore Carburetor Mounting Flange Isolated Water cross-over Port Size: 1.92 inch height 1.20 inch width Height: Front 4.18 inch, Rear 5.28 inch Single Plane with Isolated Plenum

Associated Comments:

  • Modification to the valve covers may be required when this manifold is used with some types of cylinder heads.

Details:

  • Barrel Quantity: 4.0
  • Basic Operating RPM Range: 2500-7500 RPM
  • Cnc Ported: No
  • Carburetor Flange: 4150 Square Bore
  • Carburetor Quantity: 1.0
  • Carburetor Studs Included: No
  • Color: Natural
  • Construction: Cast
  • Cylinder Head Port Shape: Rectangle
  • Deck Height: 9.025 Inch
  • Egr Port: No
  • Engine: Chevrolet Small Block - 87+ Aluminum Heads
  • Flange Style: 4150 Square Bore
  • Front Maximum Height: 4.18 Inch
  • Fuel Injectors Included: No
  • Fuel Rail(s) Included: No
  • Fuel System Type: Carb
  • Gasket Or Seal Included: No
  • Grade Type: Performance
  • Intake Port Gasket(s) Included: No
  • Manifold Type: High Rise
  • Material: Aluminum
  • Nitrous Bung(s) Included: No
  • Plenum Finish: Natural
  • Rear Maximum Height: 5.28 Inch
  • Removable Runners: No
  • Removable Top/Lid: No
  • Single Or Dual Plane Type: Single Plane
  • Throttle Body Bore Diameter: 3.6
  • Throttle Body Gasket Included: No
  • Throttle Body Included: No
  • Vacuum Ports: Yes
  • Warranty: Manufacturer's Limited 90 Day Warranty
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation Instructions
693676d6046eb105af16190a22dc3f54.pdf (226.55 KB)
Brand
Holley
Category
Performance
Engine and Components
Engine
Engine Intake Manifold
Color
Natural
Material
Aluminum
Specs
Country of Origin: USA
Sold As: Each
UPC: 90127052136
Availability: Available
Universal: No
Vehicle Type
Car
Core Charge
$0.00
