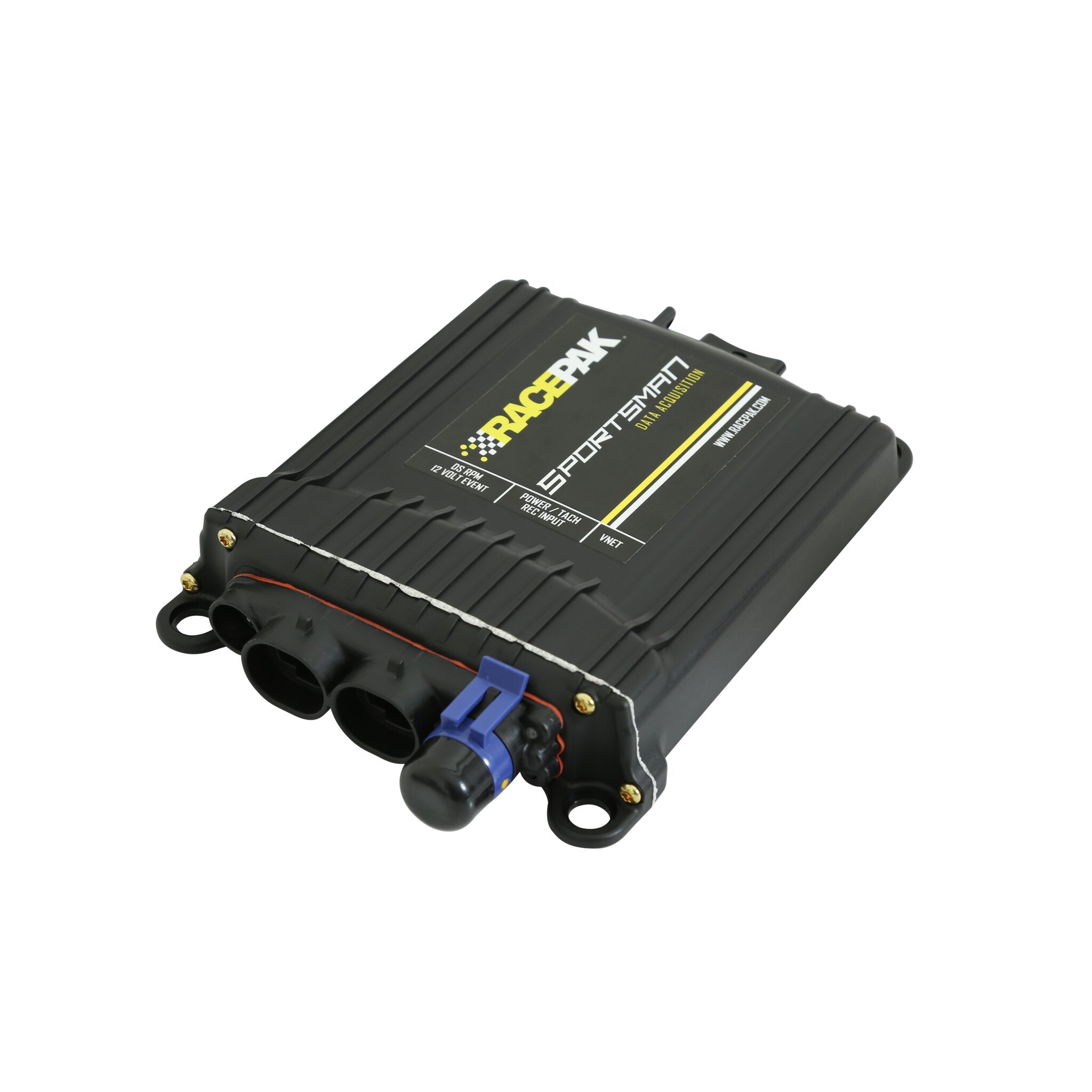

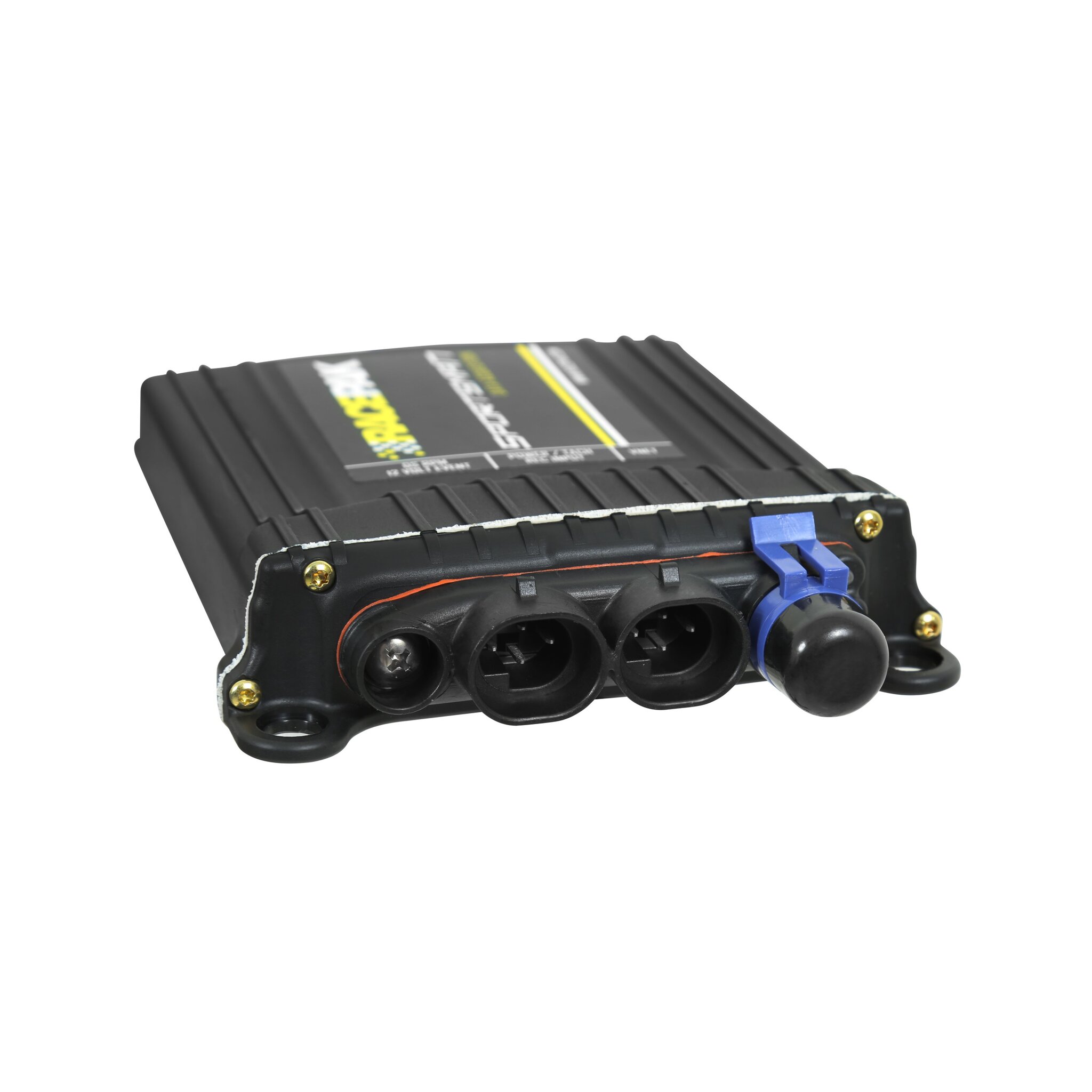

The Racepak Sportsman data acquisition system is designed to meet the needs of the sportsman drag racer, including their budget. Containing the same hardware and software as Racepak's professional series recorders, this compact unit provides up to 25 channels of data and includes DataLink software.

Out of the box, the Sportsman logs engine RPM, driveshaft RPM, two-channel G-meter, and battery voltage. Additional V-Net sensors can be added to expand the system as your needs grow.

Features & Benefits:

• Channels: 25 Total - 7 Internal - 8 EGT channels (Sensors sold separate), and 4 shock channels (Sensors sold separate). 6 V-Net (Expandable)
• Sample Rate: up to 100 frames per second, to capture every channel for in-depth analysis.
• Memory: included SD Card, for quick and easy file transfer to a computer.
• Internal Sensors: Engine RPM, Driveshaft RPM, Battery Voltage, Start Record Button, 2 Axis G Meter, 12 Volt Event
• Weight:.65 lbs

Sportsman loggers DO NOT INCLUDE a drive shaft collar.

Details:

• Application: Drag Racing
• Model: 610-KT-SPRTMN
• Operating Voltage: 12-18 volts
• Start Record Method: Momentary Button
• Emission Code: 5
