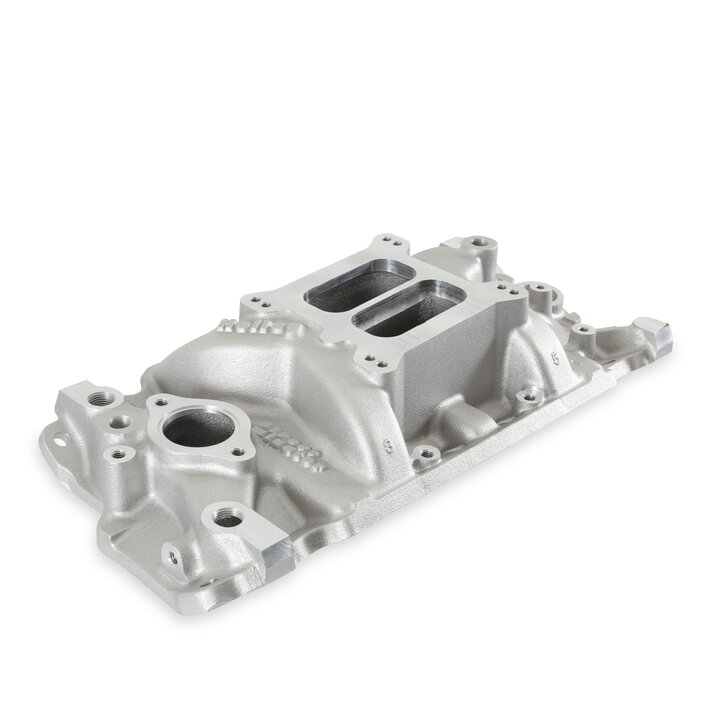

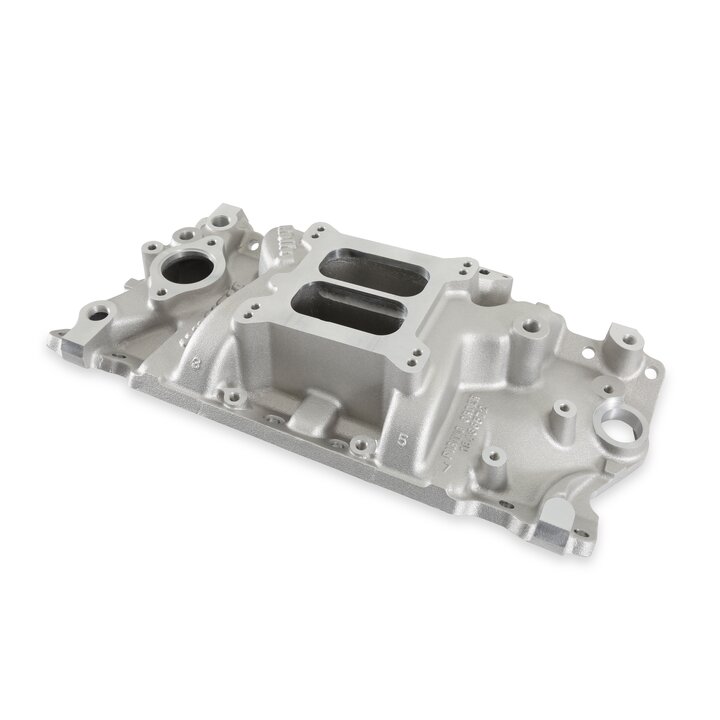

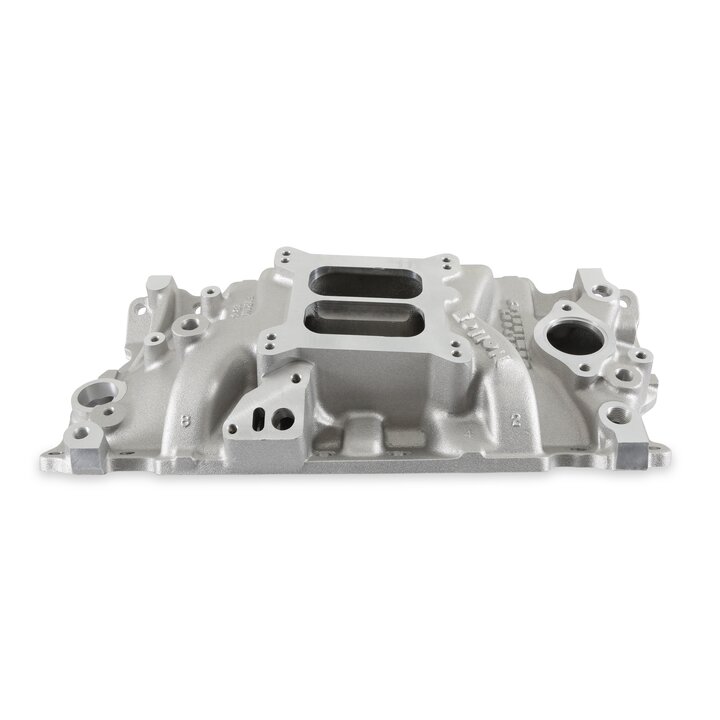

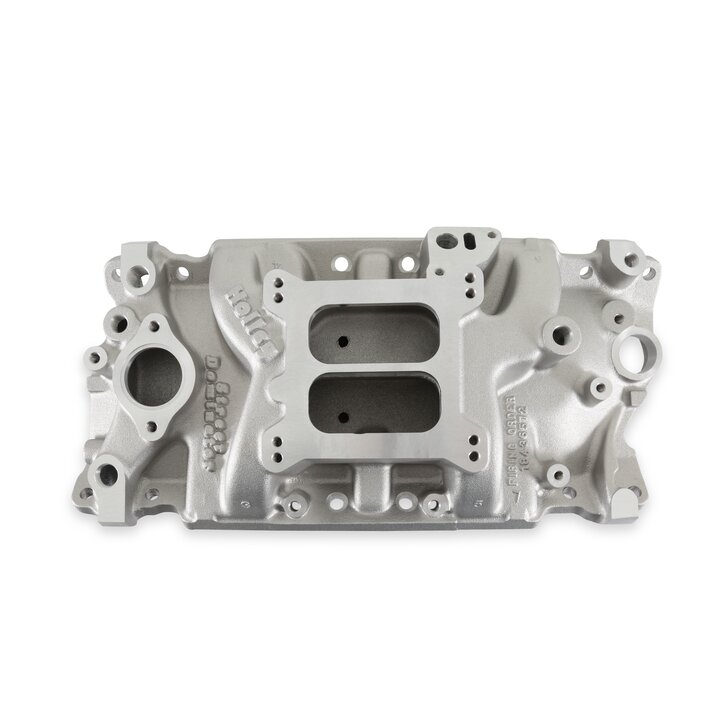

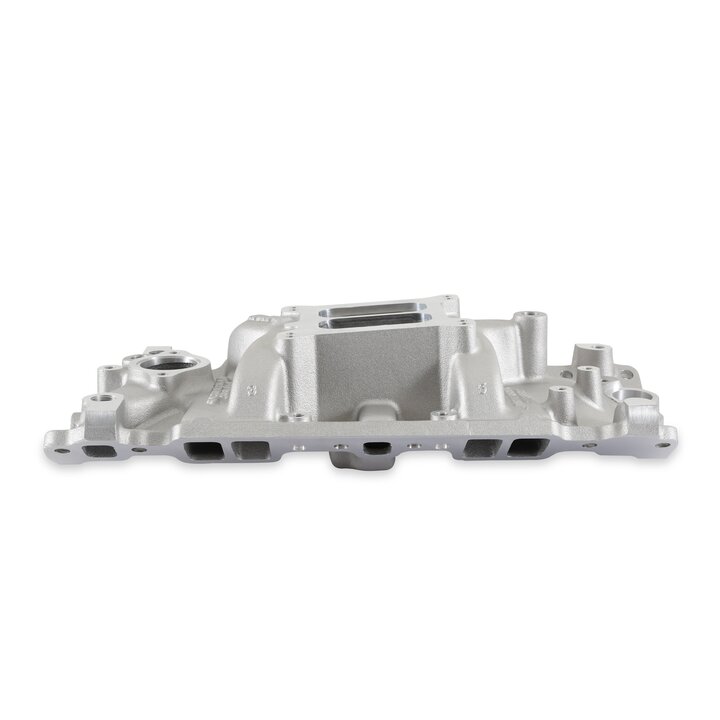

Street Dominator Intake Manifold w/Egr 1987-Later with Cast Iron Head

Features and Benefits:

• Square Carburetor Mounting Flange Egr Provisions Height: Front 3.68 inch, Rear 5.02 inch Port Size: 1.90 inch height 1.16 inch width High Rise Dual Plane Design Power band: Idle-6000 RPM

Associated Comments:

• Utilizes late model alternator and A/C bracket mounting provisions. Has vacuum taps off manifold runners.
• Extra installation hardware included. Water port sizes- 2 are 1/2 inch NPT and 1 is 3/8 inch NPT

Details:

• Basic Operating RPM Range: Idle-6000 RPM
• Cnc Ported: No
• Carburetor Flange: 4150 Square Bore
• Carburetor Quantity: 1.0
• Carburetor Studs Included: No
• Color: Natural
• Construction: Cast
• Cylinder Head Port Shape: Rectangle
• Deck Height: 9.025 Inch
• Egr Port: No
• Engine: Chevrolet Small Block Gen I
• Flange Style: 4150 Square Bore
• Front Maximum Height: 3.668 Inch
• Fuel Injectors Included: No
• Fuel Rail(s) Included: No
• Fuel System Type: Carb
• Gasket Or Seal Included: No
• Grade Type: Performance
• Intake Port Gasket(s) Included: No
• Manifold Type: Low Rise
• Material: Aluminum
• Nitrous Bung(s) Included: No
• Plenum Finish: Natural
• Rear Maximum Height: 5.02 Inch
• Removable Runners: No
• Removable Top/Lid: No
• Single Or Dual Plane Type: Single Plane
• Throttle Body Bore Diameter: 3.6
• Throttle Body Gasket Included: No
• Throttle Body Included: No
• Vacuum Ports: No
• Warranty: Manufacturer's Limited 90 Day Warranty
