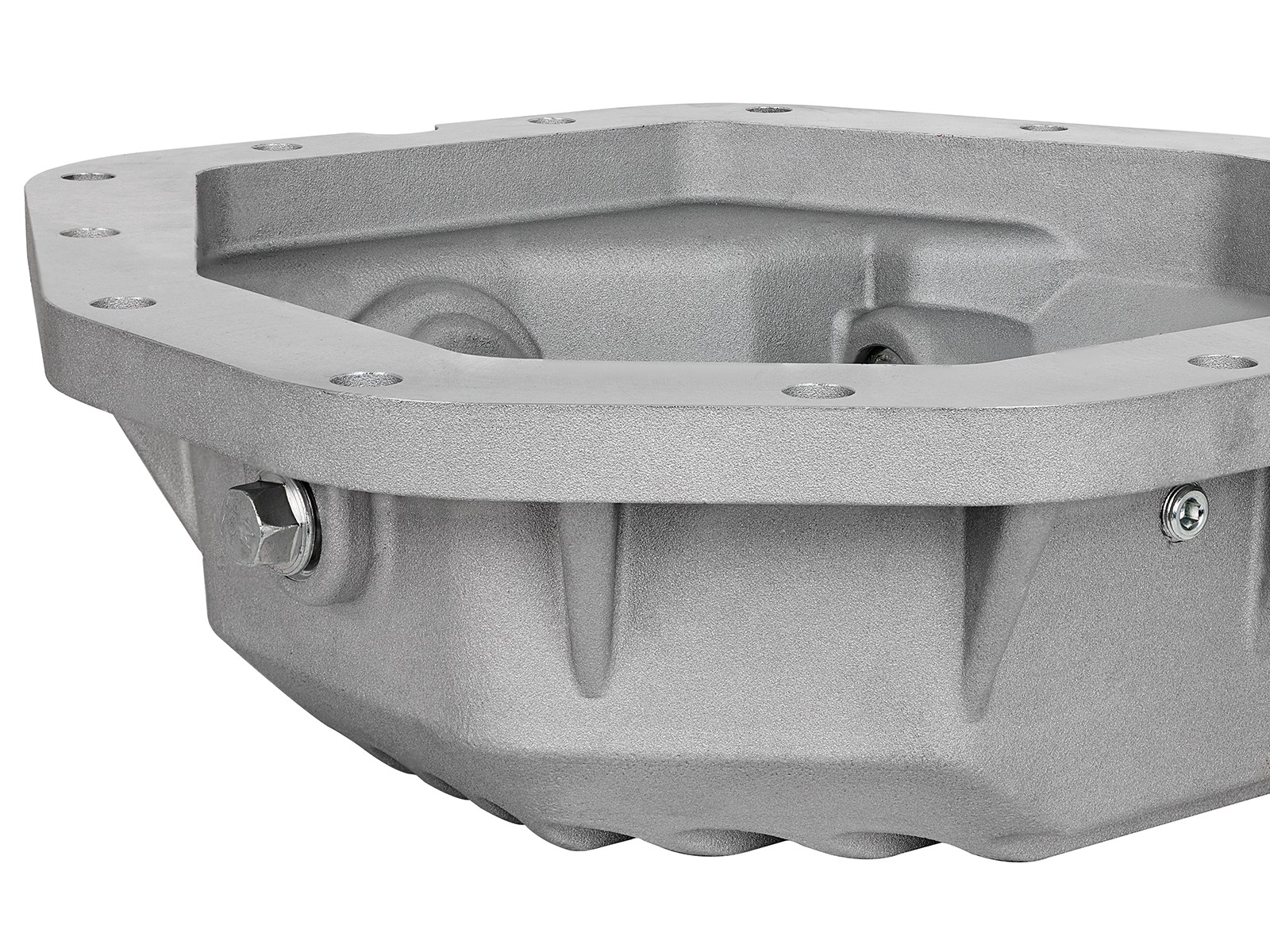

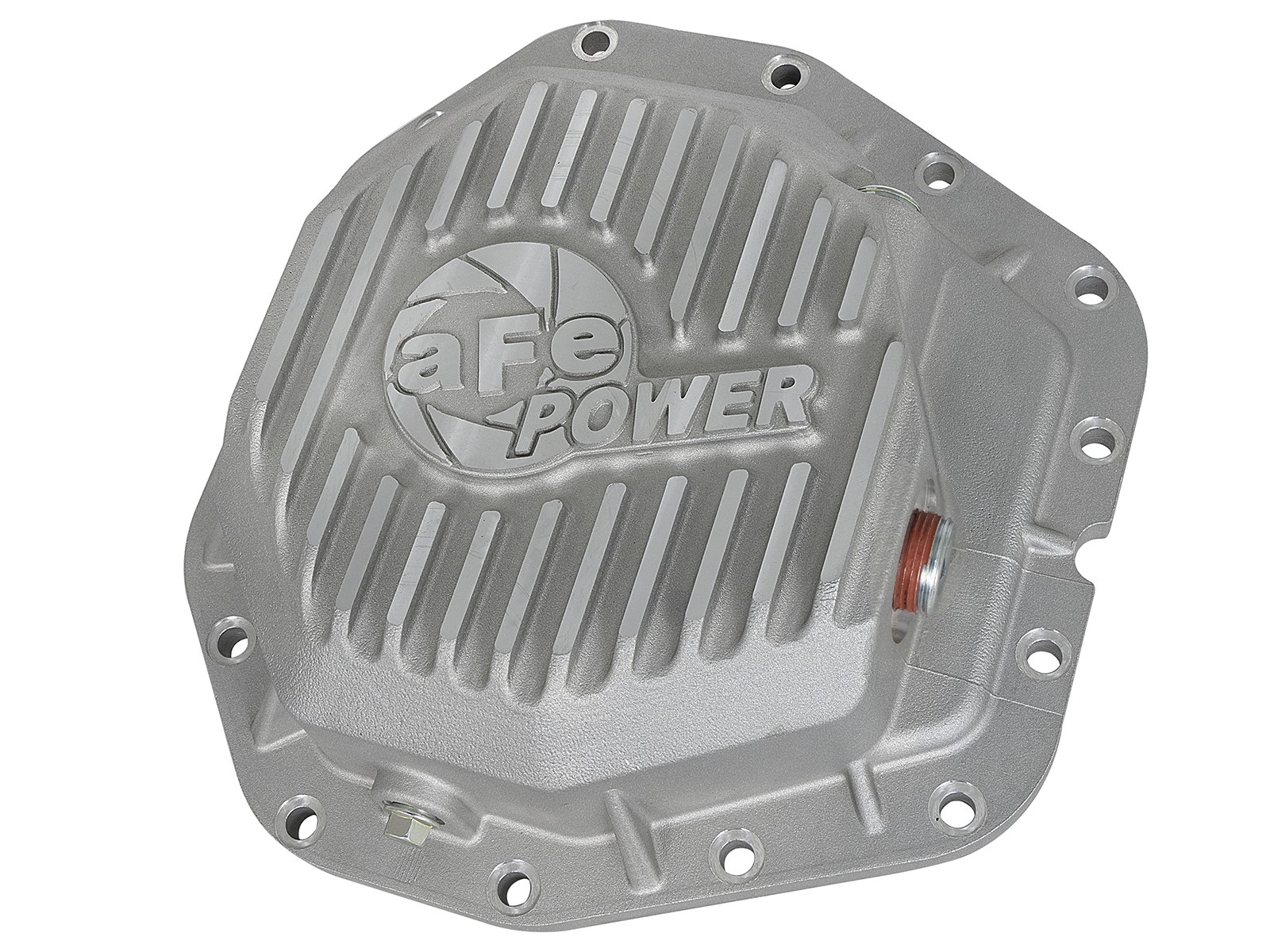

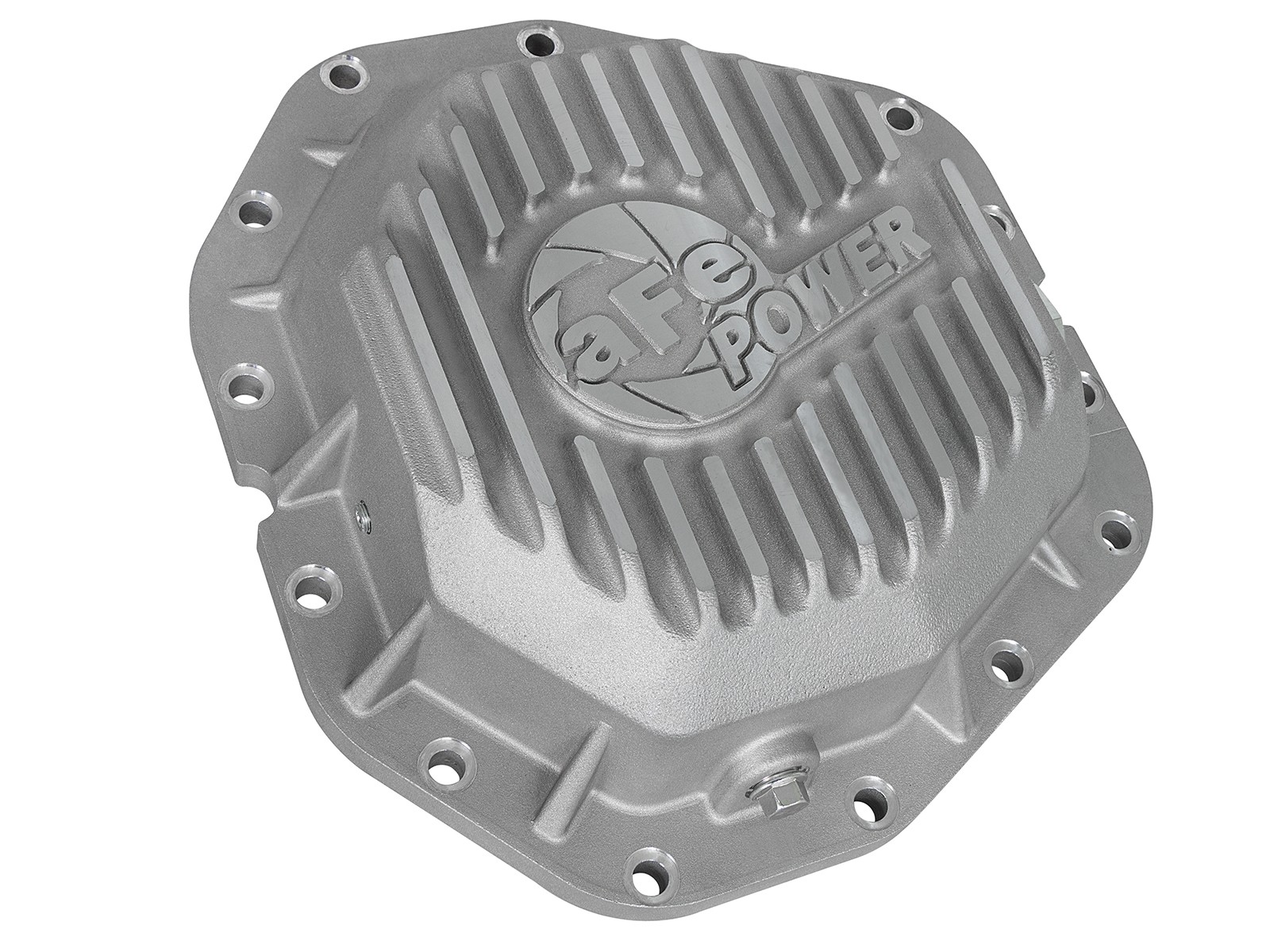

aFe Power's new rear differential cover brings performance engineering to the protection of your axle's differential. This differential cover is constructed out of durable A356-T6 cast aluminum with reinforcing ribs for maximum strength. Mounting hardware is included for a hassle-free installation.

A calibration plug set to the factory level prevents overfilling of the differential. A magnetic drain plug and a deep reach magnetic fill plug are provided for maximum protection. This cover has a raw finish with machined fins for a distinctive look.

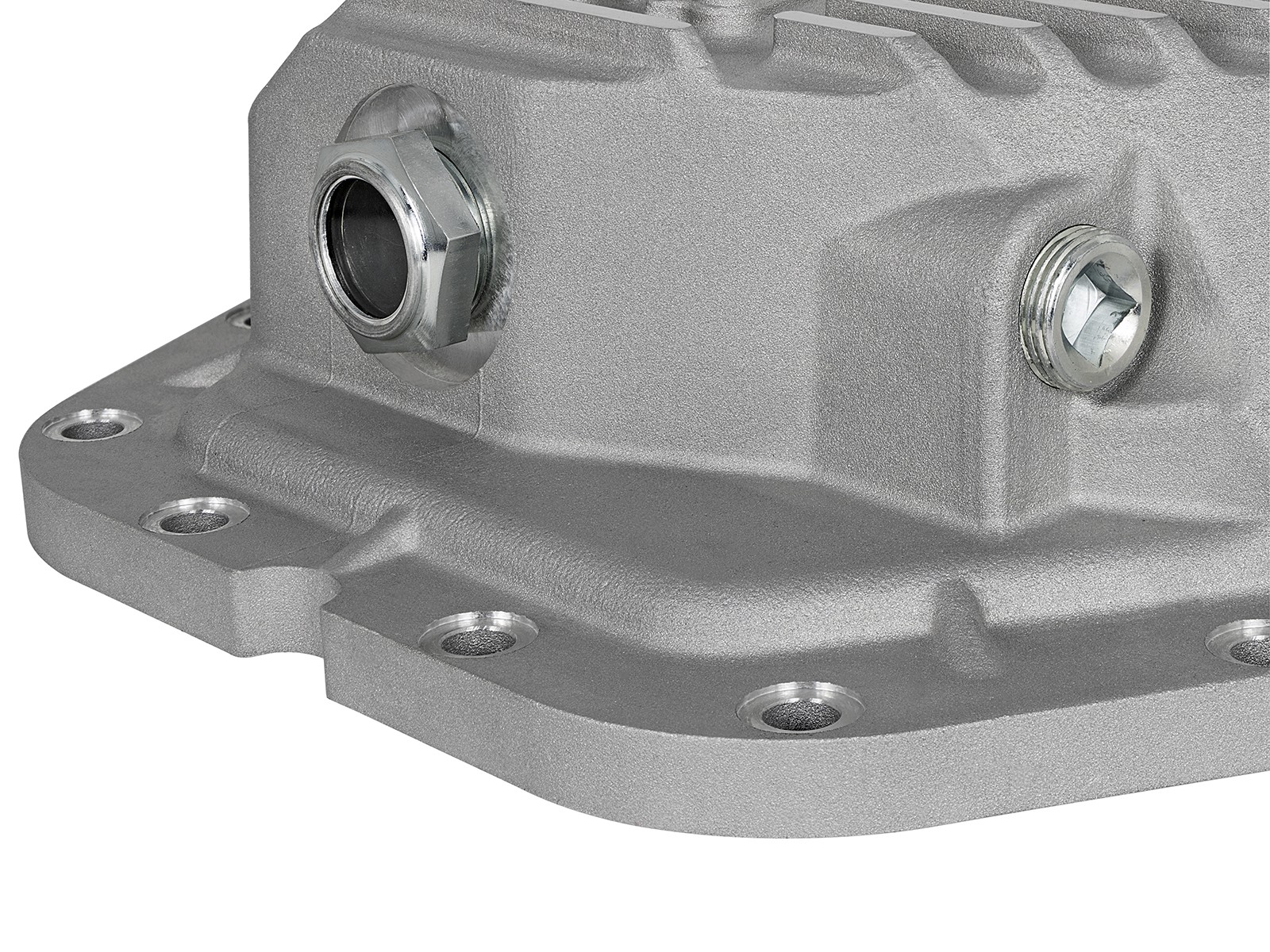

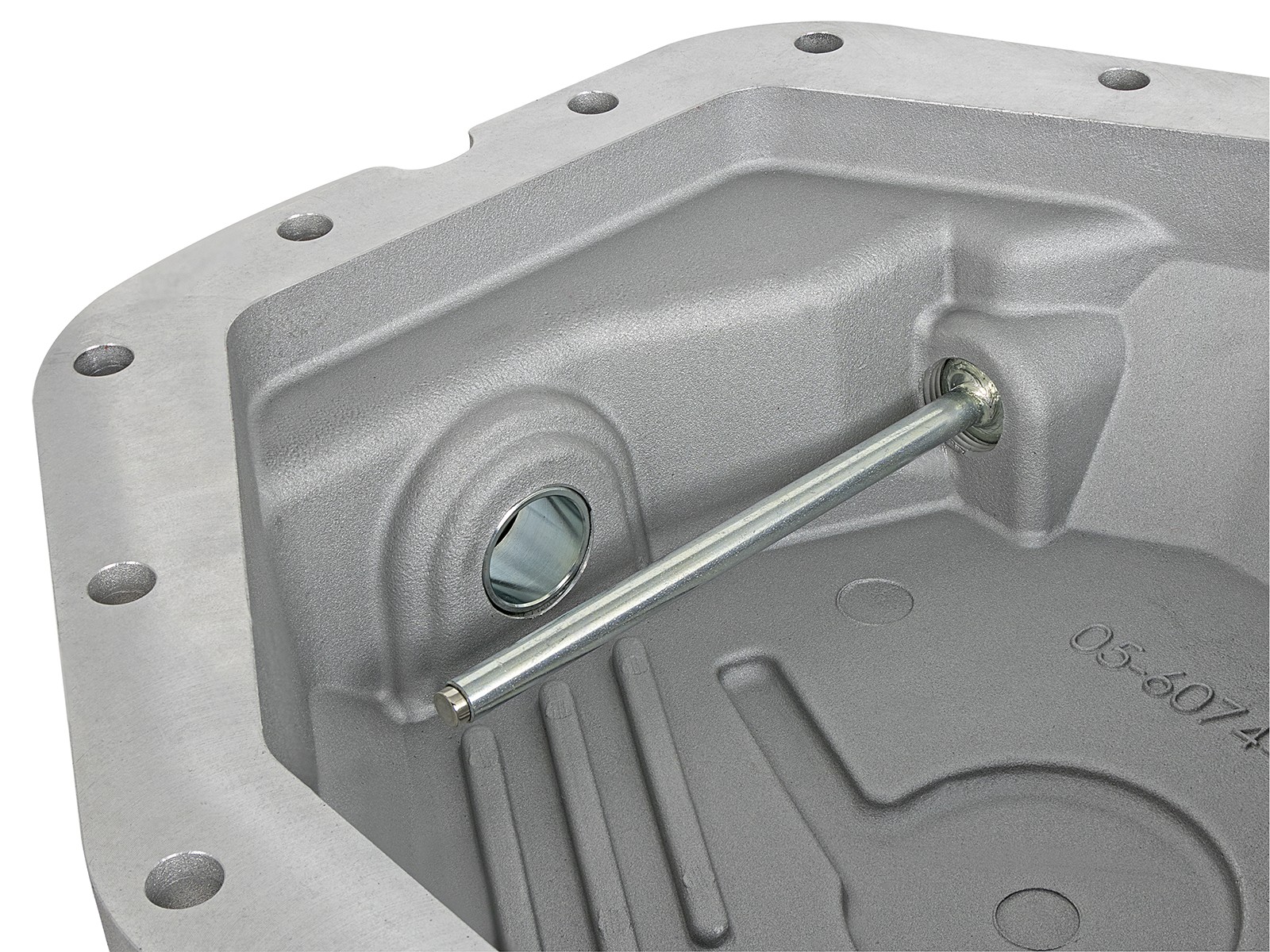

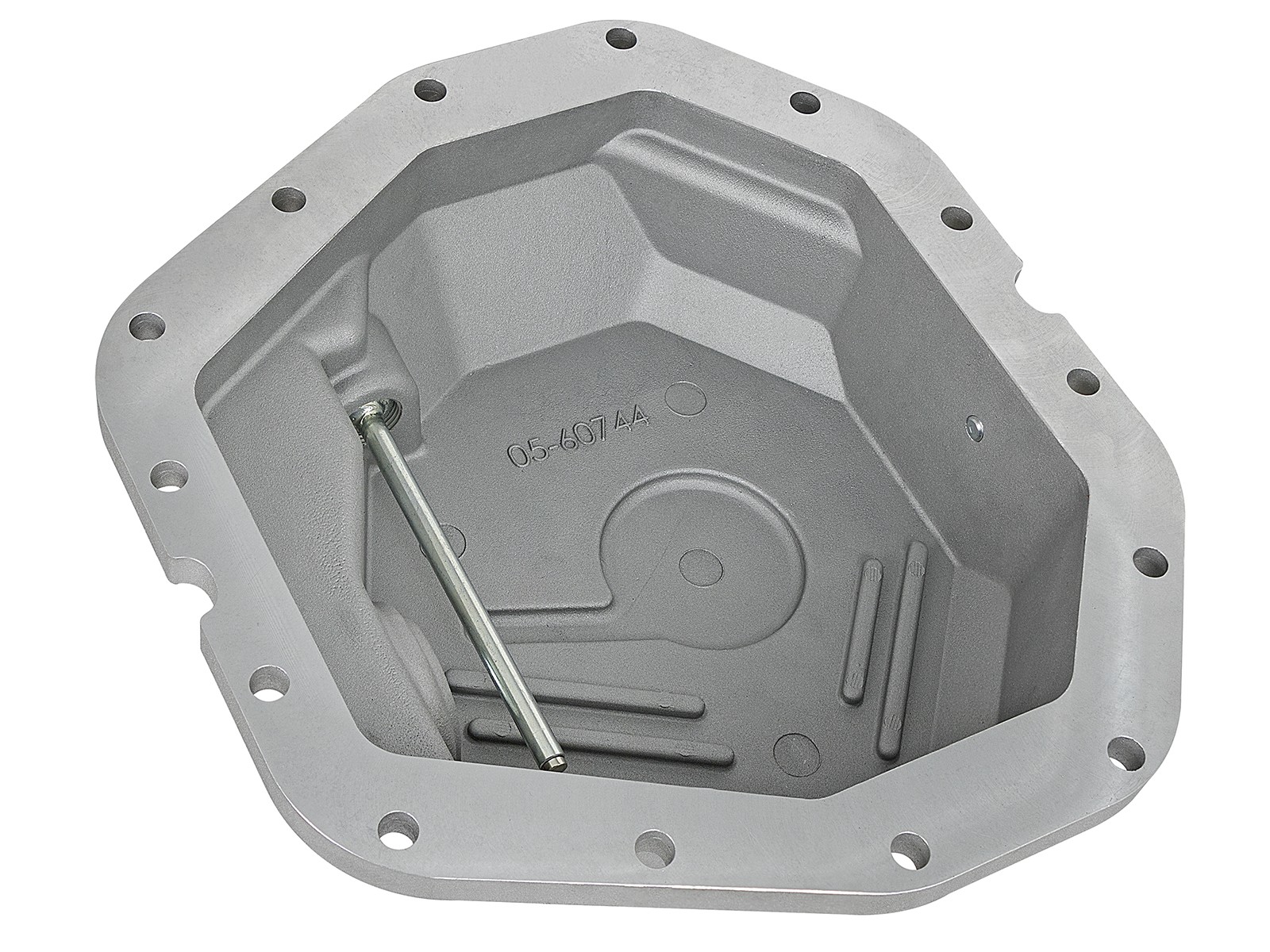

5 Quart Gear Oil Capacity: This cover has about a 5 quart gear oil capacity at the factory fill level, factory cover holds about 4 quarts. Built-in Cooling Fins: Built-in internal and external cooling fins increase surface area to maximize cooling of the differential oil. Magnetic Drain/Fill Plug: This system incorporates a magnetic drain and deep reach fill plug that captures loose particles for maximum rear-end protection.

Oil Level calibration plug: A 1/8 Inch Npt calibration plug is set to the factory fluid level which eliminates accidental overfilling.

Features and Benefits:

• Constructed of Durable A356-T6 Cast Aluminum
• Reinforcing Ribs w/ Raw Finish and Machined Fins
• Magnetic Drain and Fill Plugs Capture Loose Particles
• Calibration Plug Set to Factory Fluid Level
• Fits Ford Dana M300-14 Bolt Axles

Details:

• Axle Type: Dana M300
• Color: Raw
• Cover Bolt Hole Quantity: 14 Each
• Cover Material: Cast Aluminum
• Drain Plug Included: Yes
• Emission Code: 4
• Filler Plug Included: Yes
• Fuel Type: Diesel
• Gasket Or Seal Included: Yes
• Liter: 6.7 Liter
• Mounting Hardware Included: Yes
• Oil Included: No
• Position: Rear
• Series: Street Series
• Warranty: Limited Lifetime Warranty

Applications:

• Ford Diesel Trucks 17-23 V8-6.7L (td) (Dana M300-14)
