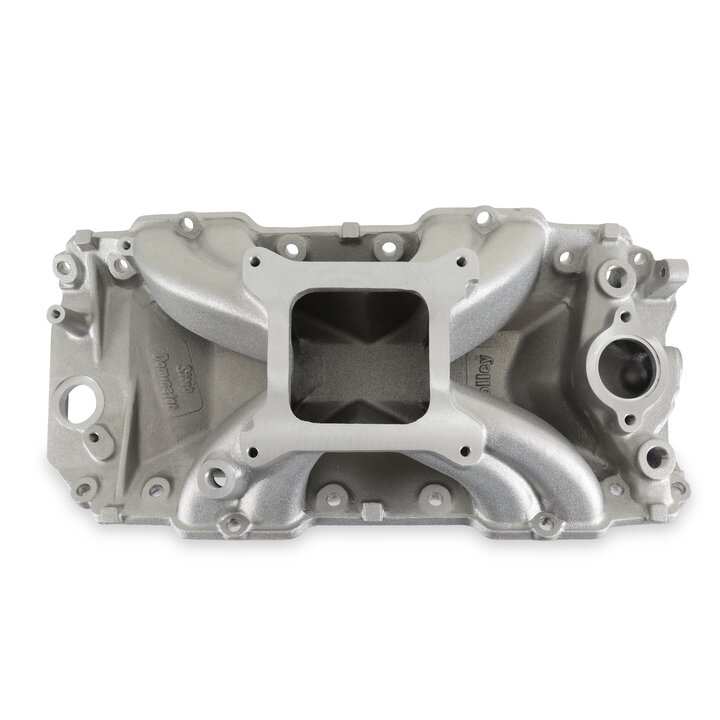

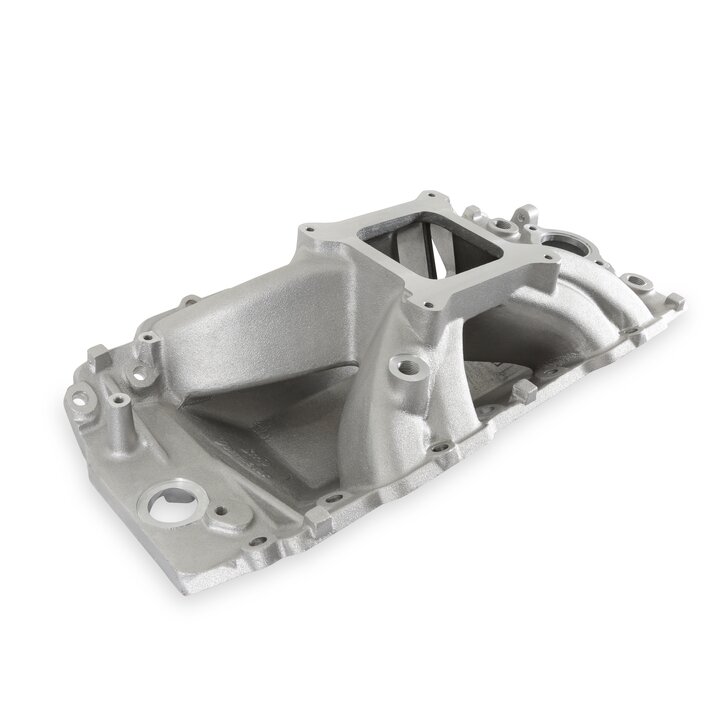

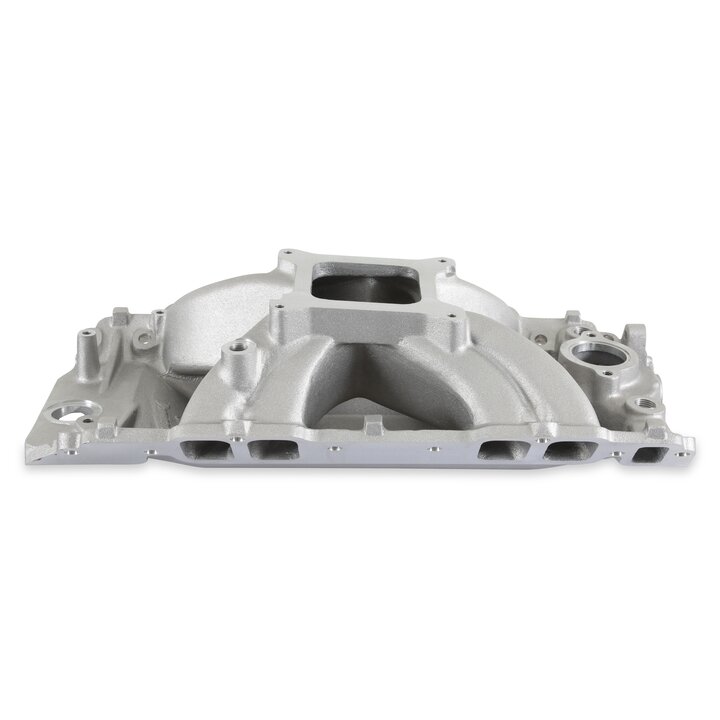

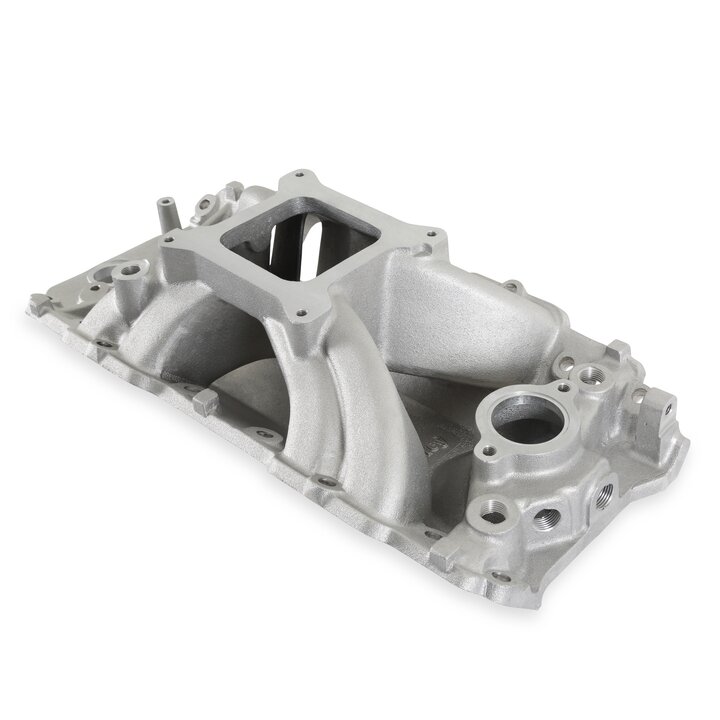

Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley
Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley
Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley
Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley
Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley
Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley
Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley
Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley
Strip Dominator Intake Big Block Chevy V8 Carburetor Intake Manifold 396ci-502ci Rectangular Port Heads Holley
SKU
300-5-BBVL
List price
$470.95
Price
$375.95

Carburetor Intake Manifold 396ci-502ci with Rectangular Port Heads

Features and Benefits:

  • Power band: 4500-8500 RPM Deep Plenum Design with Isolated Runners 4150 Square Bore Carburetor Mounting Flange Height: Front 4.77 inch, Rear 6.16 inch Single Plane/Open Plenum Design Port Size: 2.30 inch height 1.60 inch width

Associated Comments:

  • Will fit tall blocks with use of Weiand spacer plate kit, P/N 8204. Accepts 850-1000 CFM Holley HP 4bbl carburetor.

Details:

  • Basic Operating RPM Range: 4500-8500 RPM
  • Cnc Ported: No
  • Carburetor Flange: Square/4150
  • Carburetor Quantity: 1.0
  • Carburetor Studs Included: No
  • Color: Natural
  • Construction: Cast
  • Cylinder Head Port Shape: Rectangle
  • Deck Height: 9.8 Inch
  • Egr Port: No
  • Engine: Chevrolet Big Block - Rectangle Port
  • Flange Style: 4150 Square Bore
  • Front Maximum Height: 4.77 Inch
  • Fuel Injectors Included: No
  • Fuel Rail(s) Included: No
  • Fuel System Type: Carb
  • Gasket Or Seal Included: No
  • Grade Type: Performance
  • Intake Port Gasket(s) Included: No
  • Manifold Type: High Rise
  • Material: Aluminum
  • Nitrous Bung(s) Included: No
  • Plenum Finish: Natural
  • Rear Maximum Height: 6.16 Inch
  • Removable Runners: No
  • Removable Top/Lid: No
  • Single Or Dual Plane Type: Single Plane
  • Throttle Body Bore Diameter: 3.6
  • Throttle Body Gasket Included: No
  • Throttle Body Included: No
  • Vacuum Ports: No
  • Warranty: Manufacturer's Limited 90 Day Warranty
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Vehicle Fitment
1963 Chevrolet Impala
1963 Chevrolet Bel Air
1963 Chevrolet Biscayne
1965-1967 Chevrolet Impala SS
1965-1975 Chevrolet Bel Air
1965-1972 Chevrolet Biscayne
1965-1976 Chevrolet Impala
1966-1974 Chevrolet Corvette
1966-1975 Chevrolet El Camino
1966-1972 Chevrolet Caprice
1967 Chevrolet Camaro RS
1967-1969 Chevrolet Camaro SS
1967 Chevrolet Camaro
1968-1969 GMC C25/C2500 Suburban
1968-1974 Chevrolet El Camino SS
1968-1969 Chevrolet K30 Pickup
1968-1969 Chevrolet K10 Suburban
1968-1969 Chevrolet K20 Pickup
1968-1969 GMC C25/C2500 Pickup
1968-1969 Chevrolet C30 Pickup
1968-1969 GMC K15/K1500 Pickup
1968-1969 Chevrolet C10 Suburban
1968-1969 Chevrolet K10 Pickup
1968 GMC K25/K2500 Suburban
1968-1974 Chevrolet El Camino Custom
1968-1969 Chevrolet C20 Suburban
1968-1969 GMC K25/K2500 Pickup
1968-1969 GMC K35/K3500 Pickup
1968-1969 GMC C15/C1500 Pickup
1968-1969 GMC C35/C3500 Pickup
1968-1969 Chevrolet C10 Pickup
1968 GMC K15/K1500 Suburban
1968-1969 Chevrolet C20 Pickup
1969-1970 Chevrolet Nova
1969 GMC C15/C1500 Suburban
1970-1971 GMC P25/P2500 Van
1970 Chevrolet Townsman
1970-1971 GMC P35/P3500 Van
1970-1974 Chevrolet Monte Carlo
1970-1971 Chevrolet P30 Van
1970 Chevrolet Kingswood
1970-1971 Chevrolet P20 Van
1970 Chevrolet Kingswood Estate
1971-1972 Chevrolet Chevelle SS
1971-1974 GMC Sprint
1972-1974 GMC Sprint Custom
1972 Chevrolet Townsman
1972 Chevrolet Kingswood Estate
1972 Chevrolet Kingswood
1973-1974 Chevrolet Monte Carlo Landau
1973-1974 Chevrolet Caprice Estate
1973-1974 Chevrolet G20 Van
1973-1974 Chevrolet G20 Van Sportvan
1973 GMC Jimmy
1973 Chevrolet Chevelle Deluxe
1973-1974 GMC K35/K3500 Pickup
1973 Chevrolet Monte Carlo S
1973 Chevrolet Blazer
1973-1976 Chevrolet Caprice Classic
1973-1974 Chevrolet C20 Pickup
1973-1974 Chevrolet G10 Van
1973-1974 GMC C35/C3500 Pickup
1973-1974 Chevrolet G30 Van
1973-1974 GMC C15/C1500 Suburban
1973-1974 GMC C25/C2500 Pickup
1973-1974 GMC K25/K2500 Pickup
1973-1974 Chevrolet K20 Pickup
1973-1974 Chevrolet C20 Suburban
1973-1974 GMC C15/C1500 Pickup
1973-1974 Chevrolet K30 Pickup
1973 Chevrolet P10 Van
1973-1974 Chevrolet C10 Pickup
1973-1974 Chevrolet C10 Suburban
1973-1974 Chevrolet P30 Van
1973-1974 GMC P35/P3500 Van
1973 Chevrolet P20 Van
1973 Chevrolet K20 Suburban
1973-1974 Chevrolet C30 Pickup
1974 Chevrolet K10 Pickup
1974 GMC C25/C2500 Suburban
1974 GMC P35/P3500 Van Motorhome
1974 GMC K25/K2500 Suburban
1974 GMC K15/K1500 Suburban
1975 Chevrolet Caprice Estate Wagon
1975-1980 Chevrolet C10 Custom Deluxe
1975-1976 Chevrolet G30 Hi-Cube
1975-1980 Chevrolet C20 Custom Deluxe
1975-1980 Chevrolet C20 Suburban Custom Deluxe
1975-1980 Chevrolet C30 Custom Deluxe
1975-1980 Chevrolet C10 Suburban Custom Deluxe
1975-1980 Chevrolet C10 Suburban Silverado
1975-1977 Chevrolet C20 Suburban Silverado
1975-1978 GMC C15 Sierra Grande
1975-1978 GMC C25 Suburban Sierra Grande
1975-1978 GMC C15 Suburban High Sierra
1975-1980 Chevrolet C10 Suburban Scottsdale
1975-1978 GMC C25 Suburban Sierra Classic
1975-1978 GMC C25 Sierra Classic
1975-1980 Chevrolet C10 Scottsdale
1975-1986 Chevrolet C20 Scottsdale
1975-1980 Chevrolet C20 Suburban Scottsdale
1975-1986 Chevrolet C30 Scottsdale
1975-1976 GMC G25 Rally STX
1975-1978 GMC C15 High Sierra
1975-1976 GMC G25 Rally
1975-1978 GMC C15 Suburban Sierra Grande
1975-1978 GMC C25 Sierra Grande
1975-1978 GMC C35 Sierra Grande
1975-1978 GMC C25 High Sierra
1975-1978 GMC C35 High Sierra
1975-1978 GMC C25 Suburban High Sierra
1975-1978 GMC C35 Sierra Classic
1975-1978 GMC C15 Suburban Sierra Classic
1975-1976 Chevrolet Impala Custom
1975-1980 Chevrolet C10 Silverado
1975-1980 Chevrolet C10 Cheyenne
1975-1978 GMC C15 Sierra Classic
1975-1976 Chevrolet G30 Chevy Van
1975-1976 Chevrolet Caprice Classic Sport
1975-1976 Chevrolet G30 Beauville
1975-1976 Chevrolet Impala Sport
1975-1981 Chevrolet C20 Cheyenne
1975-1978 GMC C35
1975-1978 GMC C25 Suburban
1975-1978 GMC C25
1975-1981 Chevrolet C30 Cheyenne
1975-1978 GMC C15
1975-1978 GMC C15 Suburban
1975 GMC Sprint Classic
1975-1986 Chevrolet C30 Silverado
1975-1986 Chevrolet C20 Silverado
1976 Chevrolet G20 Beauville
1976 GMC Jimmy
1976-1978 GMC K25 Sierra Classic
1976-1977 GMC K25 Suburban High Sierra
1976 GMC Jimmy Sierra Classic
1976 GMC Jimmy High Sierra
1976-1978 GMC K25 High Sierra
1976 GMC K15 Sierra Classic
1976-1977 GMC K25 Suburban Sierra Classic
1976 GMC G35 Magnavan
1976 Chevrolet K10 Scottsdale
1976-1978 GMC K25
1976 Chevrolet K5 Blazer
1976 Chevrolet Impala S
1976 GMC K15
1976-1977 GMC K25 Suburban
1976-1978 Chevrolet K20 Scottsdale
1976 GMC K15 High Sierra
1976 Chevrolet G20 Chevy Van
1976 GMC Jimmy Sierra Grande
1976 Chevrolet Caprice Classic Landau
1976 Chevrolet Caprice Classic Estate
1976 Chevrolet K10 Custom Deluxe
1976-1978 Chevrolet K20 Custom Deluxe
1976 Chevrolet Impala Custom Landau
1976-1978 Chevrolet K20 Silverado
1976-1977 GMC K25 Suburban Sierra Grande
1976 GMC K15 Sierra Grande
1976 Chevrolet K10 Silverado
1976 Chevrolet K10 Cheyenne
1976-1978 Chevrolet K5 Blazer Cheyenne
1976-1978 Chevrolet K20 Cheyenne
1976-1978 GMC K25 Sierra Grande
1977 Chevrolet K30 Cheyenne
1977 Chevrolet K30 Silverado
1977 GMC C15 Indy Hauler
1977-1978 Chevrolet K5 Blazer Custom Deluxe
1977 Chevrolet K30 Scottsdale
1977-1978 GMC C15 Heavy Half
1977 Chevrolet K30 Custom Deluxe
1978 Chevrolet K5 Blazer Silverado
1978 GMC C15 Street Coupe
1978-1980 Chevrolet C10 Big Ten
1979-1982 GMC C2500 Sierra Grande
1979-1982 GMC C3500 Sierra Grande
1979-1980 GMC K1500 Sierra Grande
1979-1982 GMC K3500 Sierra Grande
1979-1980 Chevrolet C20 Suburban Silverado
1979-1986 GMC C3500 Sierra Classic
1979-1980 GMC C1500 Suburban Sierra Classic
1979-1980 Chevrolet K10 Silverado
1979-1982 GMC C2500 Suburban Sierra Grande
1979-1980 GMC C1500 Sierra Classic
1979-1986 GMC C2500 Sierra Classic
1979-1980 GMC C1500 Sierra Grande
1979-1980 GMC C1500 Suburban Sierra Grande
1979-1980 GMC C1500 Street Coupe
1979-1986 GMC C2500 Suburban Sierra Classic
1979-1986 GMC K3500 Sierra Classic
1979-1980 GMC K1500 Sierra Classic
1979 GMC P1500 Value Van
1979-1980 GMC C1500
1979-1980 GMC C1500 High Sierra
1979-1980 GMC K1500
1979-1980 GMC C1500 Heavy Half
1979-1980 GMC C1500 Suburban High Sierra
1979-1986 GMC K3500 High Sierra
1979-1980 GMC K1500 High Sierra
1979-1986 GMC C2500 Suburban High Sierra
1979-1986 GMC C2500 High Sierra
1979-1986 GMC C3500 High Sierra
1979-1980 GMC C1500 Suburban
1979-1986 GMC C2500 Suburban
1979 GMC P1500
1979-1980 Chevrolet K10 Scottsdale
1979-1980 Chevrolet K10 Custom Deluxe
1979-1986 GMC C3500
1979-1986 GMC C2500
1979-1986 GMC K3500
1979-1980 Chevrolet K10 Cheyenne
1980 Chevrolet K20 Silverado
1980 Chevrolet K20 Cheyenne
1980 Chevrolet K30 Custom Deluxe
1980-1981 Chevrolet K30 Cheyenne
1980 Chevrolet K20 Custom Deluxe
1980-1986 Chevrolet K30 Silverado
1980 Chevrolet K20 Scottsdale
1980-1986 Chevrolet K30 Scottsdale
1981-1982 Chevrolet P30
1981-1986 Chevrolet C20 Suburban Custom
1981-1982 Chevrolet P30 Step-Van
1981-1986 Chevrolet C20 Custom
1981-1986 Chevrolet K30 Custom
1981 Chevrolet K30 Deluxe
1981 Chevrolet C20 Deluxe
1981-1986 Chevrolet C30 Custom
1981 Chevrolet C20 Suburban Deluxe
1981 Chevrolet C30 Deluxe
1982-1986 Chevrolet C20 Suburban Silverado
1982 Chevrolet C20 Suburban Scottsdale
1984-1986 Chevrolet C20 Suburban Scottsdale
1985 Chevrolet K20 Suburban Scottsdale
1985 Chevrolet K20 Suburban Custom
1985 Chevrolet K20 Suburban Silverado
1987-1988 Chevrolet R30 Silverado
1987-1988 Chevrolet V30 Silverado
1987 GMC R3500 High Sierra
1987-1988 Chevrolet R30 Custom Deluxe
1987 GMC R3500
1987-1988 Chevrolet V30 Custom Deluxe
1987-1988 Chevrolet R30 Scottsdale
1987-1988 Chevrolet V30 Scottsdale
1987 GMC R3500 Sierra Classic
1988-1989 GMC C3500 Sierra SLE
1988-1989 GMC C3500 Sierra SLX
1988 Chevrolet R30 Cheyenne
1988 Chevrolet V30 Cheyenne
1988-1989 GMC C3500 Sierra
1989 Chevrolet R3500 Silverado
1989 Chevrolet V3500 Silverado
1989 Chevrolet V3500 Cheyenne
1989 Chevrolet R3500 Cheyenne
1989 Chevrolet R3500 Scottsdale
1989 Chevrolet V3500 Scottsdale
Installation Instructions
800bb57ab6179035d1e133e89c154098.pdf (317.17 KB)
Brand
Holley
Category
Performance
Engine and Components
Engine
Engine Intake Manifold
Color
Natural
Material
Aluminum
Specs
Country of Origin: USA
Sold As: Each
UPC: 90127053270
Availability: Available
Universal: No
Vehicle Type
Car
Core Charge
$0.00
