aFe is proud to introduce the Takeda Dual Cat-Back Exhaust System. This exhaust system in testing, produced a max gain of +5 horsepower and +6 ft. lbs.

of torque verified by our in house dyno. The exhaust system is constructed from 2-1/2 Inch mandrel bent 304 stainless steel and is 100 percent Tig-welded. This system was designed and engineered by tuning the perfect tube lengths, ultimately maximizing performance across the power band while maintaining a great tone.

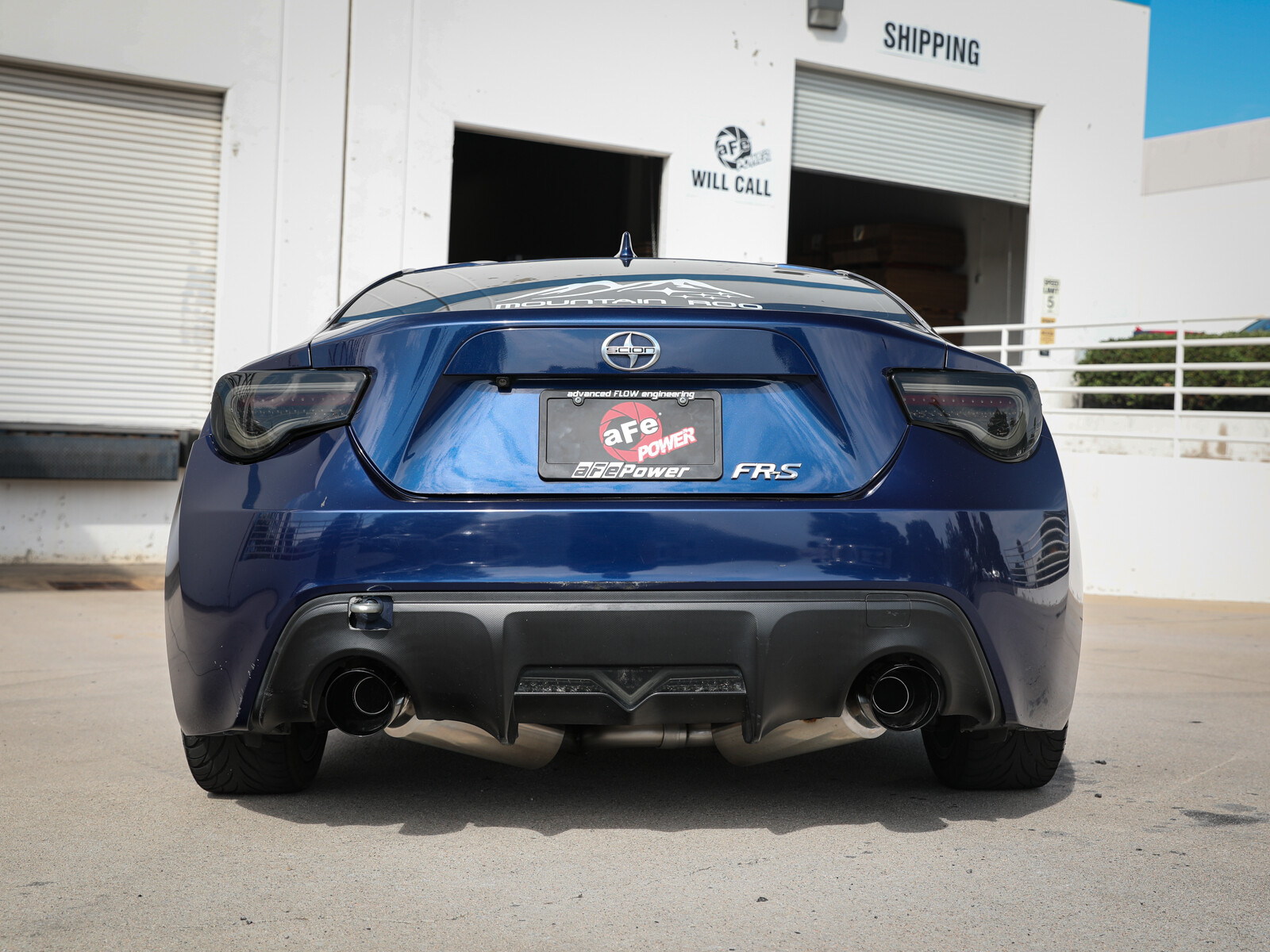

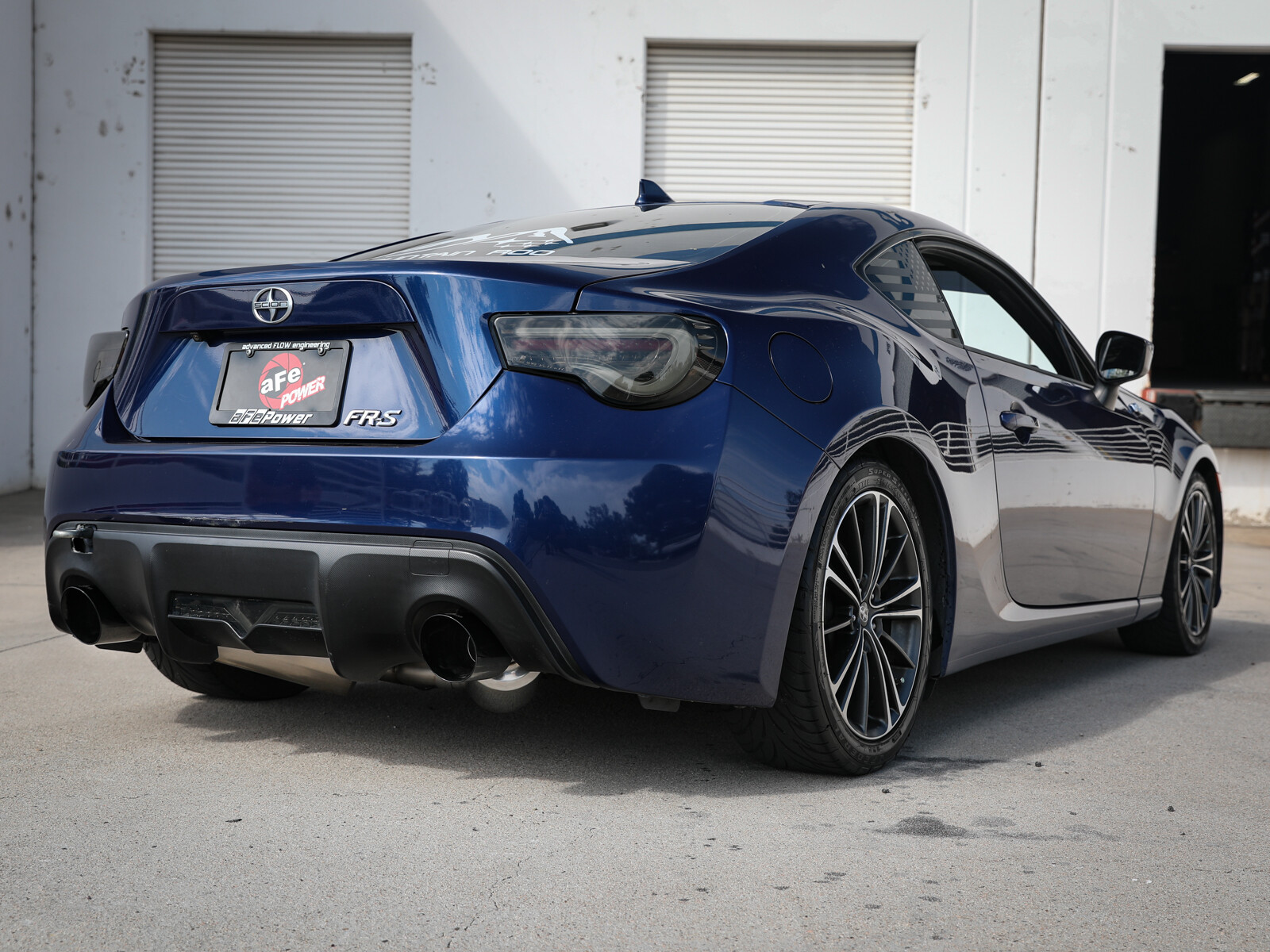

To finish off this exhaust are two 4.75 Inch oval double wall black stainless steel tips. This exhaust design uses all factory hanger locations for a hassle free installation. No modifications necessary.

Flow and Performance:

This Takeda exhaust system is constructed of 2-1/2 Inch mandrel bent 304 stainless steel tubing for maximum flow. Smooth transition bends allow for low turbulence, increasing horsepower, torque and improving throttle response.

Simple Installation:

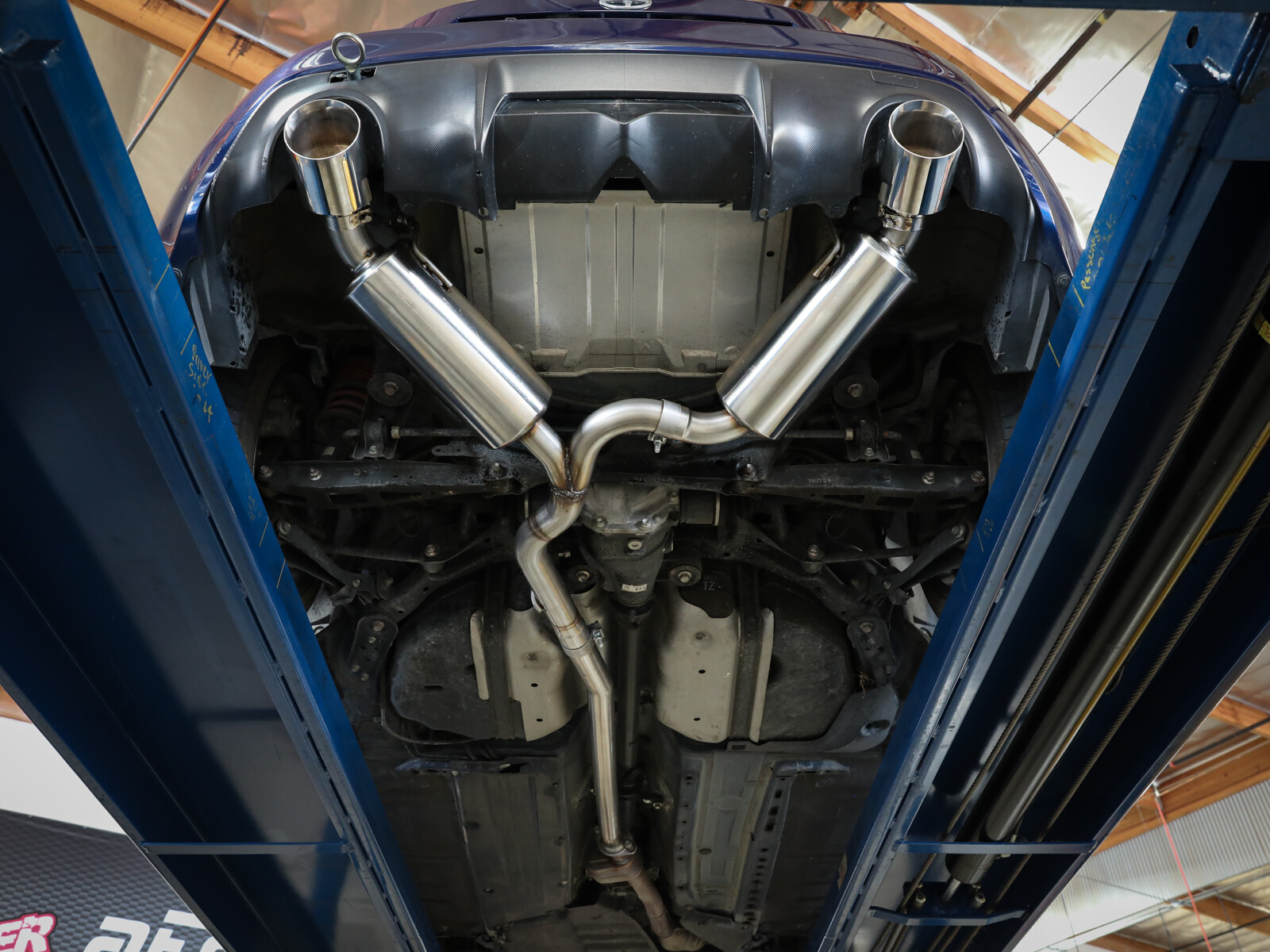

This systems utilizes factory mounting locations providing stability and hassle-free installation.

Leak-Free Seal:

High quality band clamps are used for a complete 360 degree sealing surface.

Aggressive Sound:

Dual free-flowing mufflers are used to absorb high pitch tones producing a powerful sound.

Features and Benefits:

• In house testing produced a max gain of +5 horsepower and +6 ft. lbs. of torque verified by our in house dyno

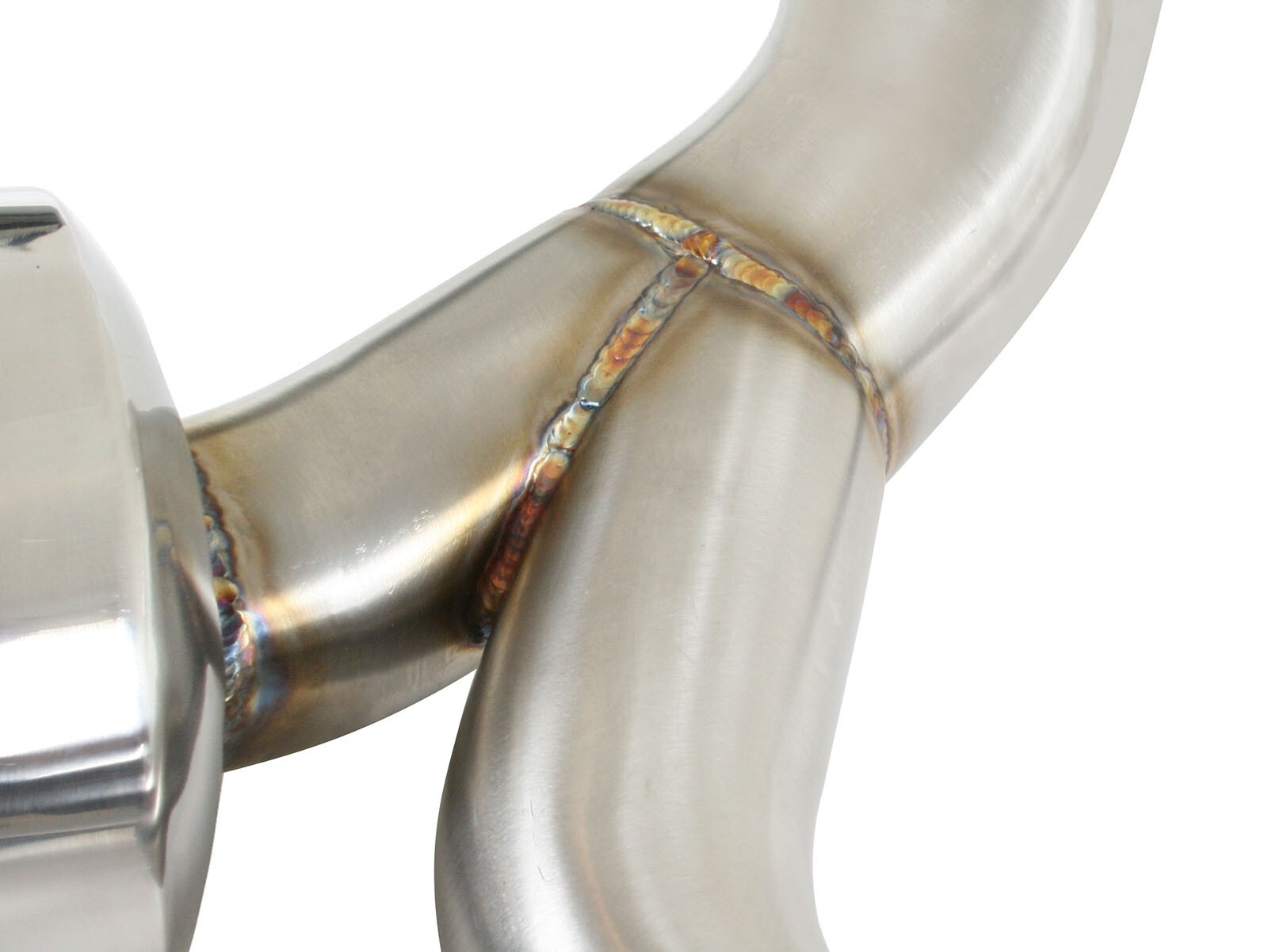

• Constructed from 2-1/2 Inch 100 percent Tig-welded mandrel-bent, brushed finish, 304 stainless steel tubing
• Incorporates dual high-flow, polished 304 SS mufflers
• Utilizes a Oe-style flange for a leak-free seal

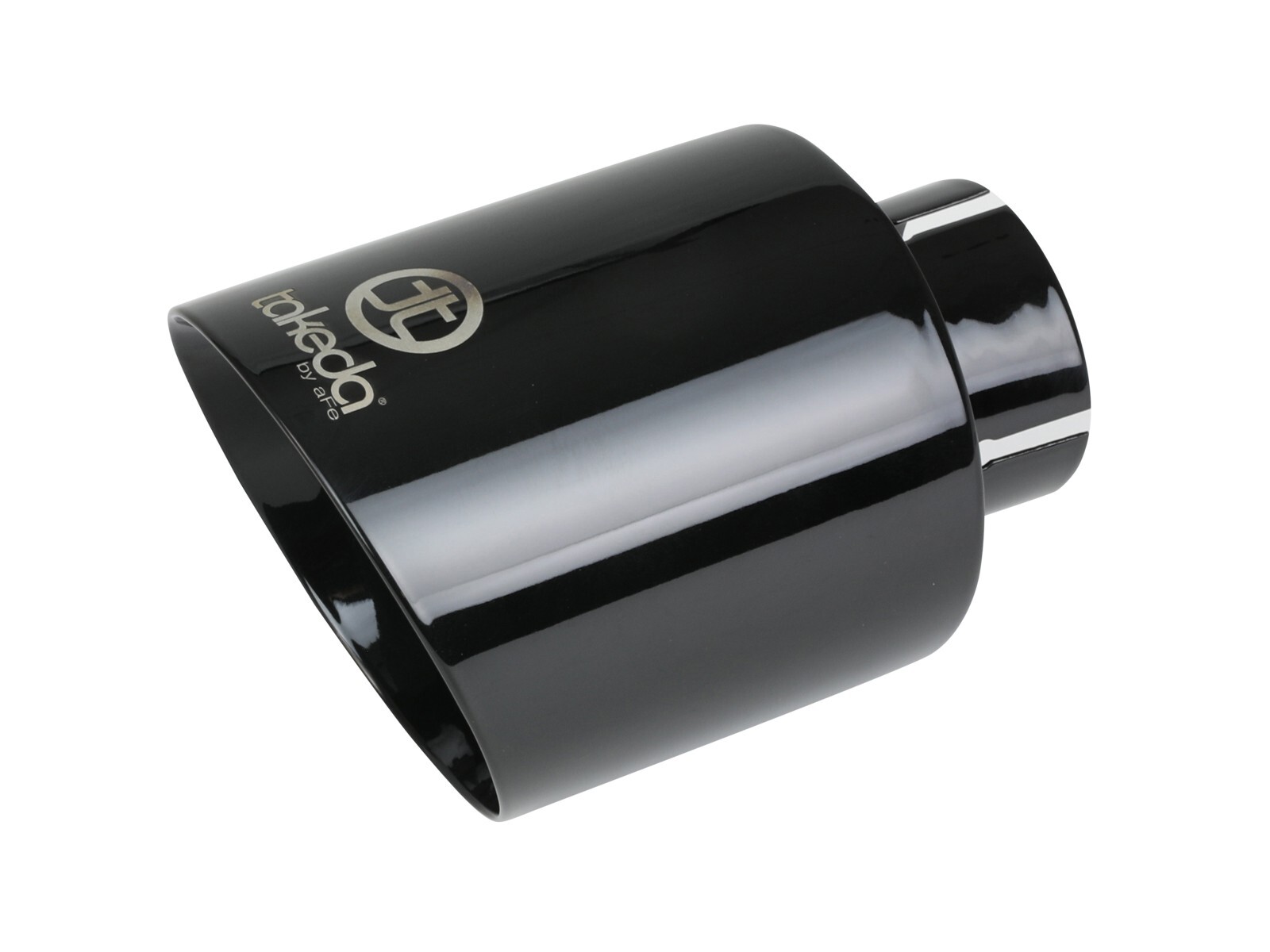

• Includes dual, Takeda laser-etched, double wall, angle-cut 304 stainless steel black tips
• This exhaust is a direct bolt-on system which requires no cutting or drilling and includes all necessary hardware for a hassle-free installation

Details:

• Color: Black
• Emission Code: 4
• Exhaust Tip Cut: Slant
• Exhaust Tip Edge: Rolled edge
• Exhaust Tip Included: Yes
• Exhaust Tip Outlet Size: 4.5 Inch
• Exhaust Tip Quantity: Dual
• Exhaust Type: Cat-Back
• Exit Position: Split Rear
• Exit Style: Straight
• Fuel Type: Gas
• Horse Power Increase: 5 Horsepower
• Includes Muffler: Yes
• Liter: 2.0 Liter
• Muffler Finish: Polished
• Muffler Included: Yes
• Muffler Material: 304 Stainless Steel
• Muffler Quantity: Two
• Series: Takeda
• System Finish: Brushed
• System Material: 304 Stainless Steel
• Tip Cut: Slant
• Tip Edge Style: Rolled edge
• Tip Finish: Black Powdercoated
• Tip Included: Yes
• Tip Material: 304 stainless steel
• Tip Outlet Size: 4.5 Inch
• Torque Increase: 6 Pounds Per Foot
• Tubing Diameter: 2.5 Inch
• Warranty: 2 Year

Applications:

• Toyota GR86/Fr-S/Brz 13-26 H4-2.0L/2.4L
