Hays Diesel 850 Clutch single disc clutch kits are an excellent upgrade from your current clutch and designed handle Diesel engines with up to 850 feet . Lbs.

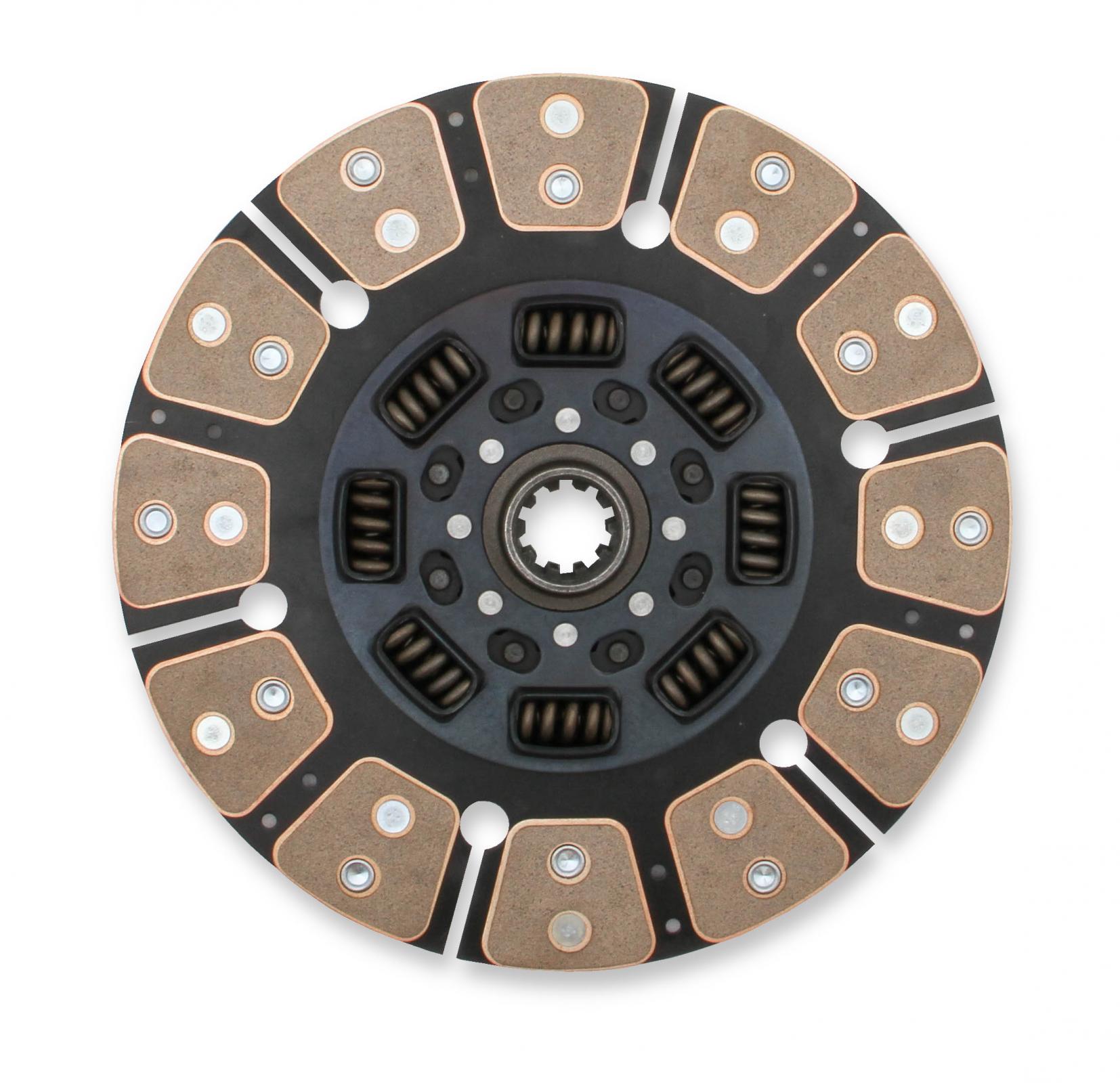

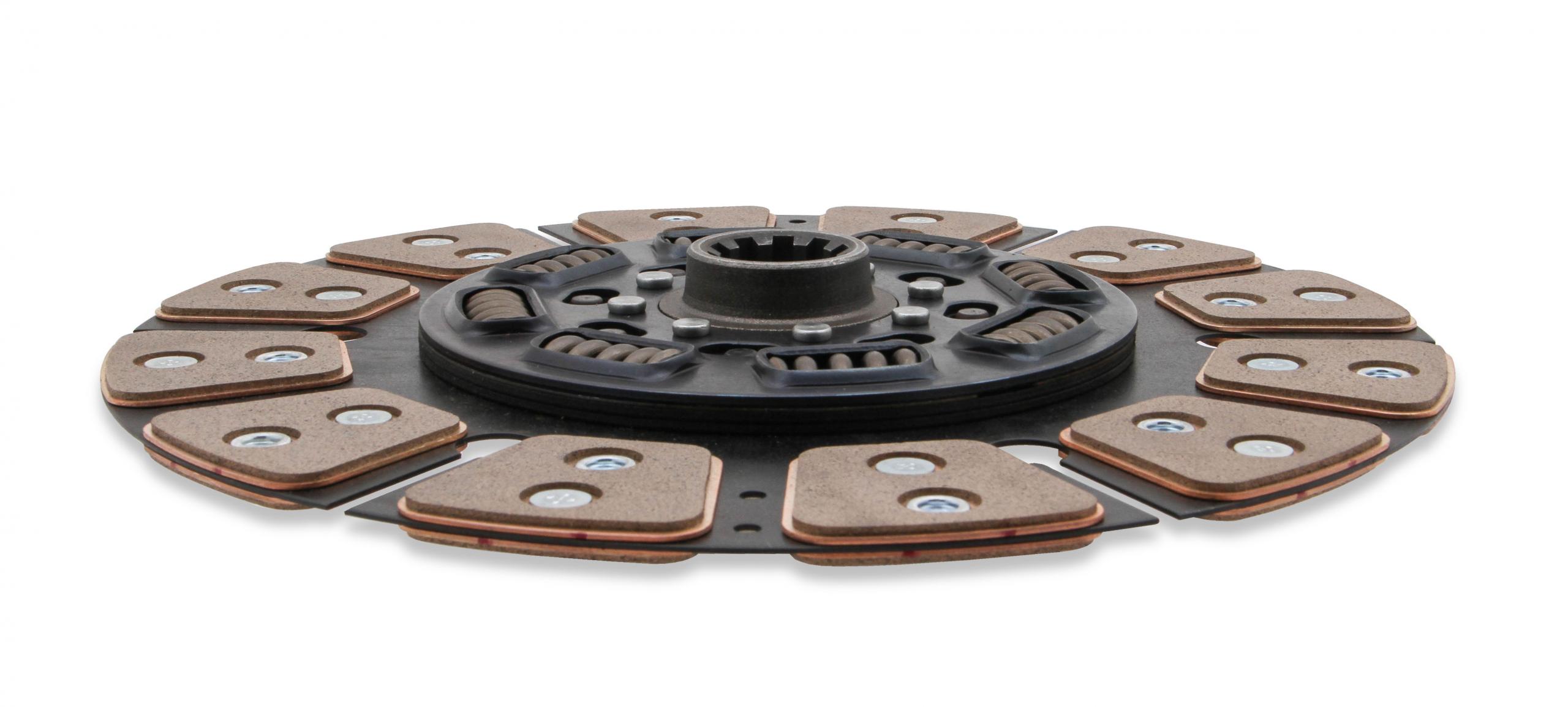

Torque or 100-200 horsepower above stock. The Diesel 850 kit features a matched pressure plate and a heavy duty, high torque ceramic button-style clutch disc.

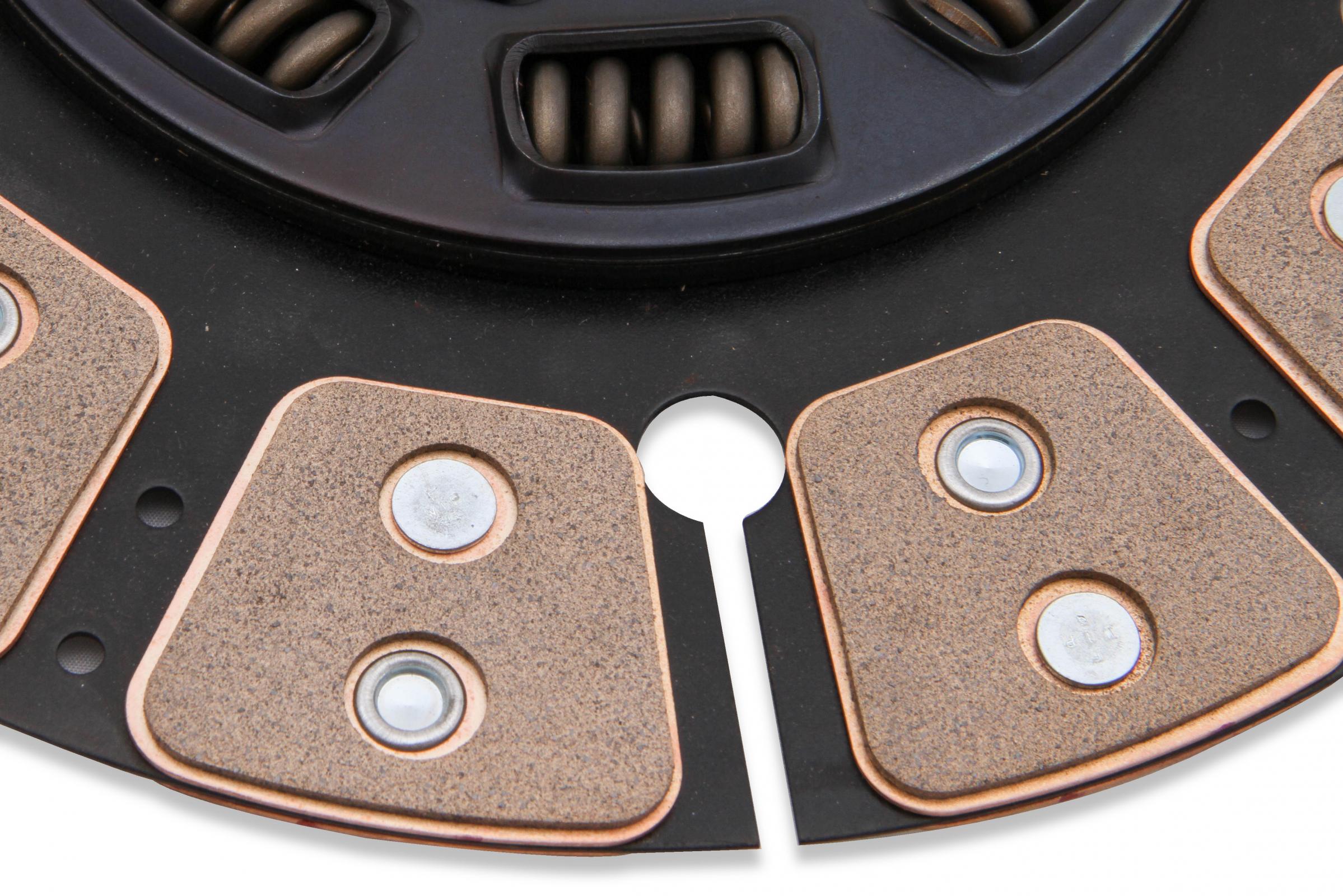

This clutch disc utilizes world leading Carlisle (Wellman) sintered buttons to provide increased holding and torque capacity along with additional clamping force. Carlisle is known as the world leader in clutch button and sintered friction technology.

The Diesel 850 offers over a 30 percent greater clamping force than a stock clutch allowing you to put more power to the ground or haul full-size loads with confidence. Kits available for Dodge 5.9L Cummins Diesel and Ford 6.0L/7.3L Power Stroke Diesel engines.

Features and Benefits:

• Excellent clutch for torque levels up to 850 lbs. Ft or 100-200 horsepower above stock
• Offers increased holding and torque capacity needed for towing full-sized loads
• Features a matched OE pressure plate and a heavy duty, sintered ceramic button clutch disc
• Ceramic button disc provides more aggressive engagement with a stock pedal effort

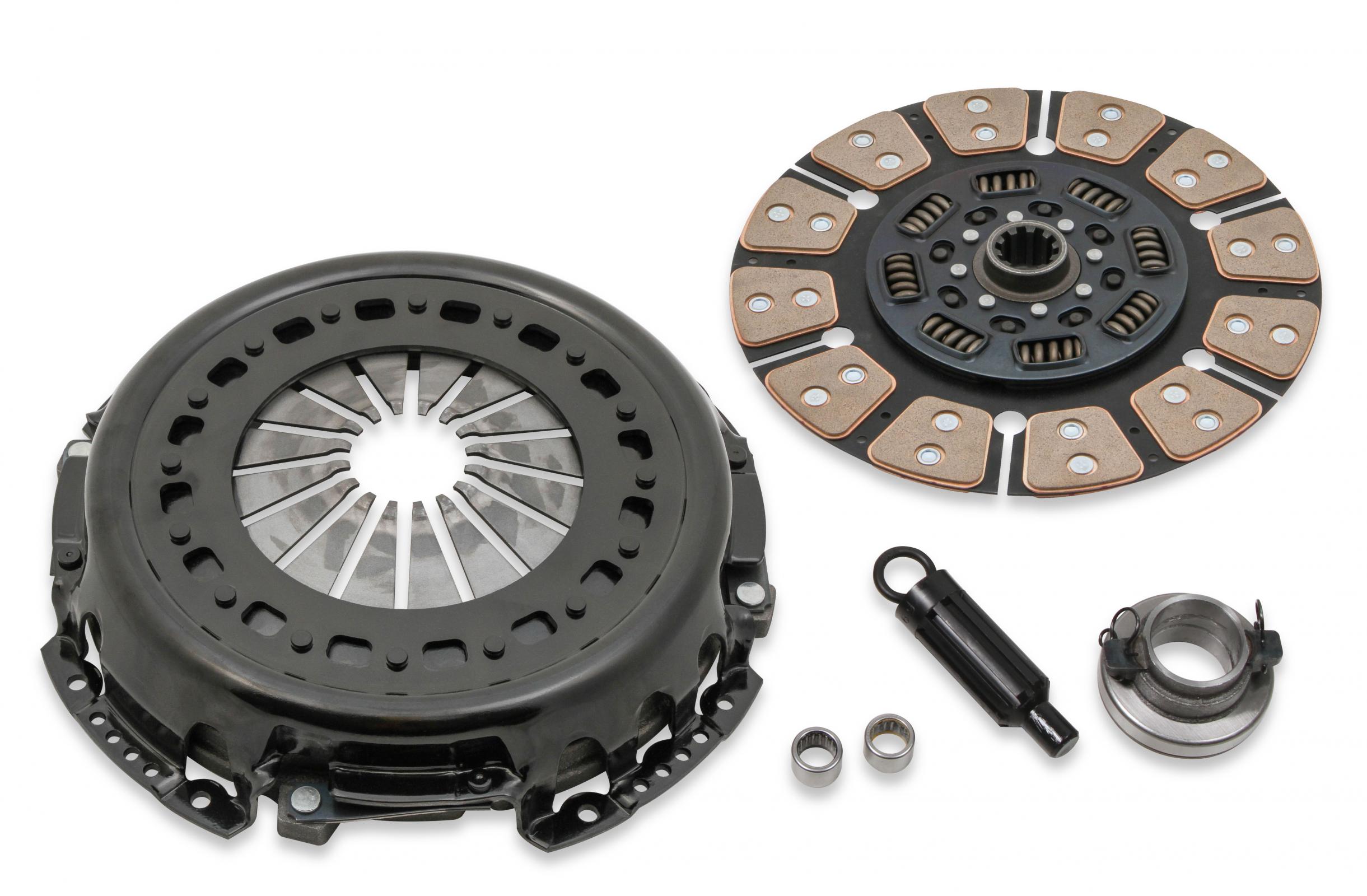

• Comes complete with pressure plate, clutch disc, throwout bearing, alignment tool and instructions

Details:

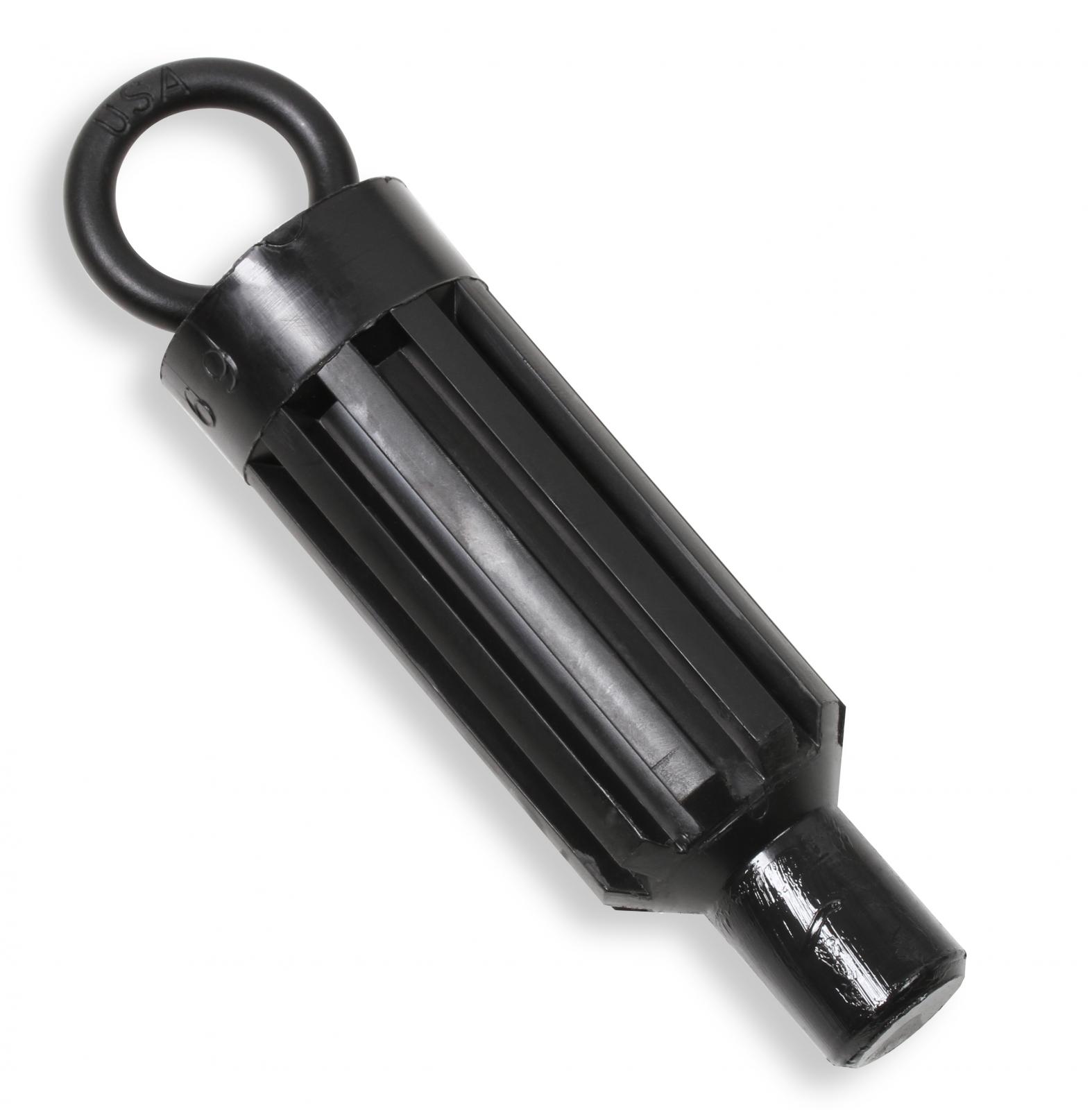

• Alignment Tool Included: Yes
• Application: Ram
• Disc Diameter: 13
• Disc Material: Ceramic

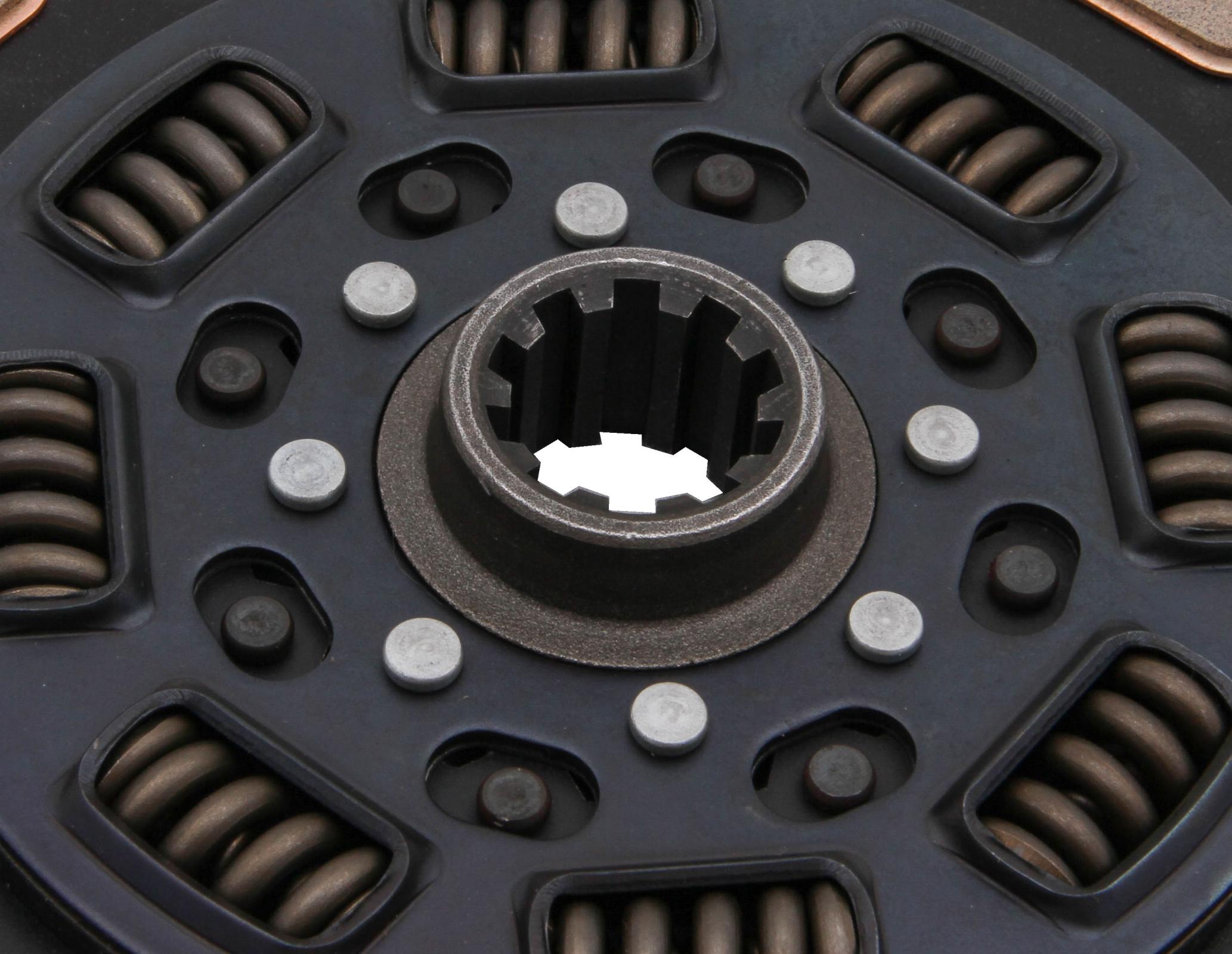

• Disc Style: Spring Hub
• Emission Code: 5
• Input Shaft Diameter: 1-3/8 Inch
• Input Spline: 10
• Max Torque Rating (ft.-lbs.): 850

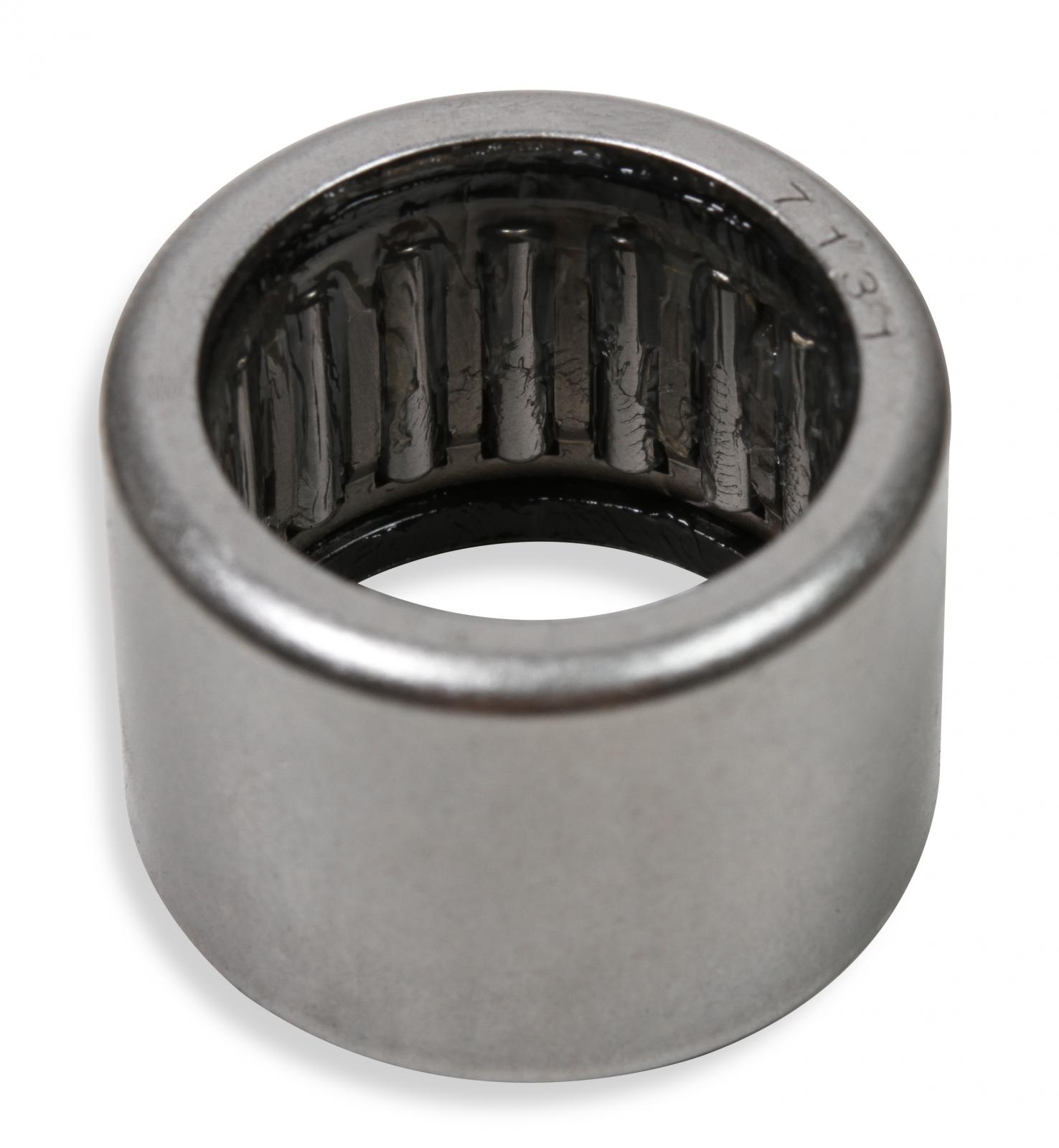

• Pilot Bushing Included: Yes

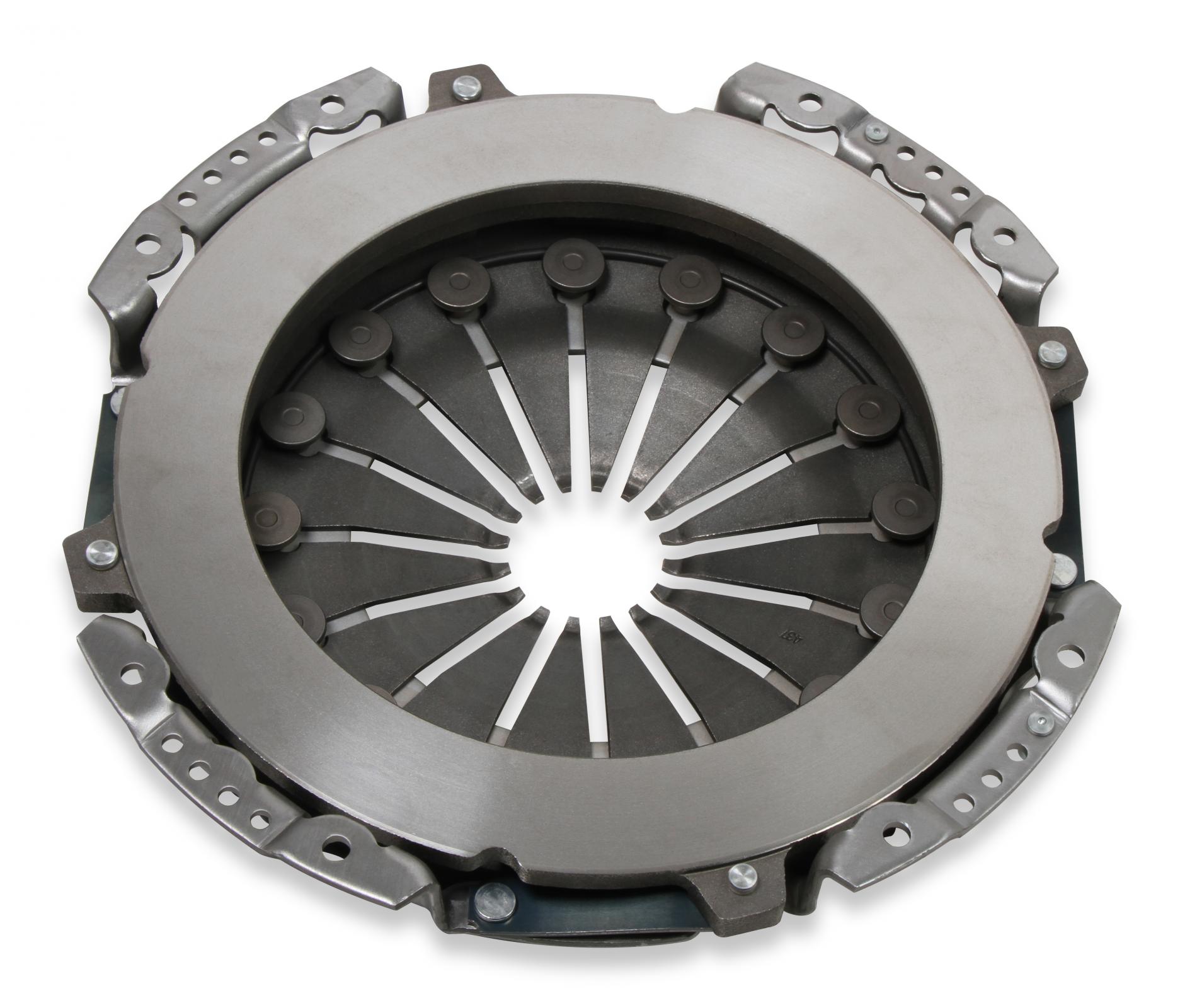

• Pressure Plate Style: Diaphragm

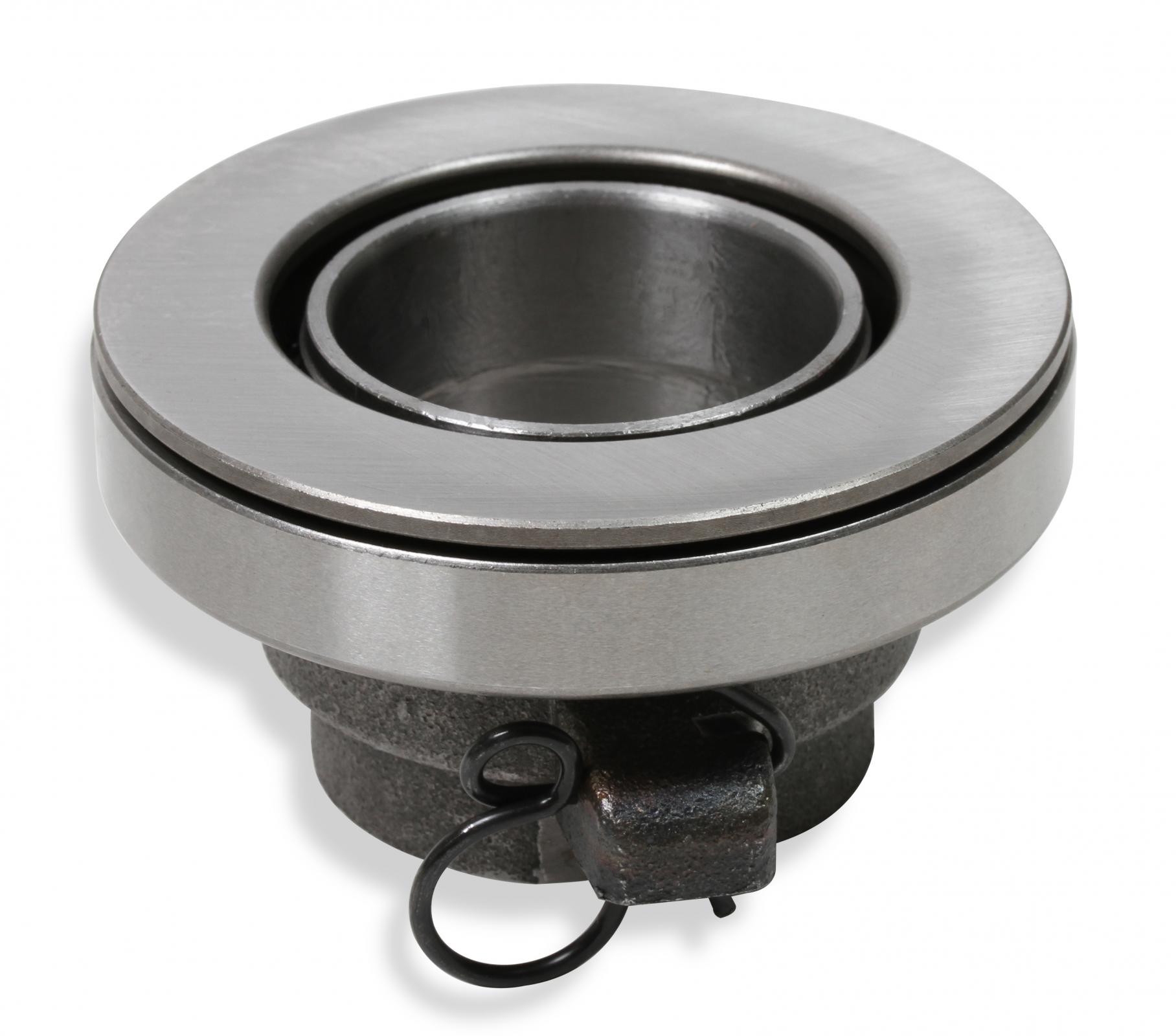

• Throwout Bearing I.D. (inches): 1.732

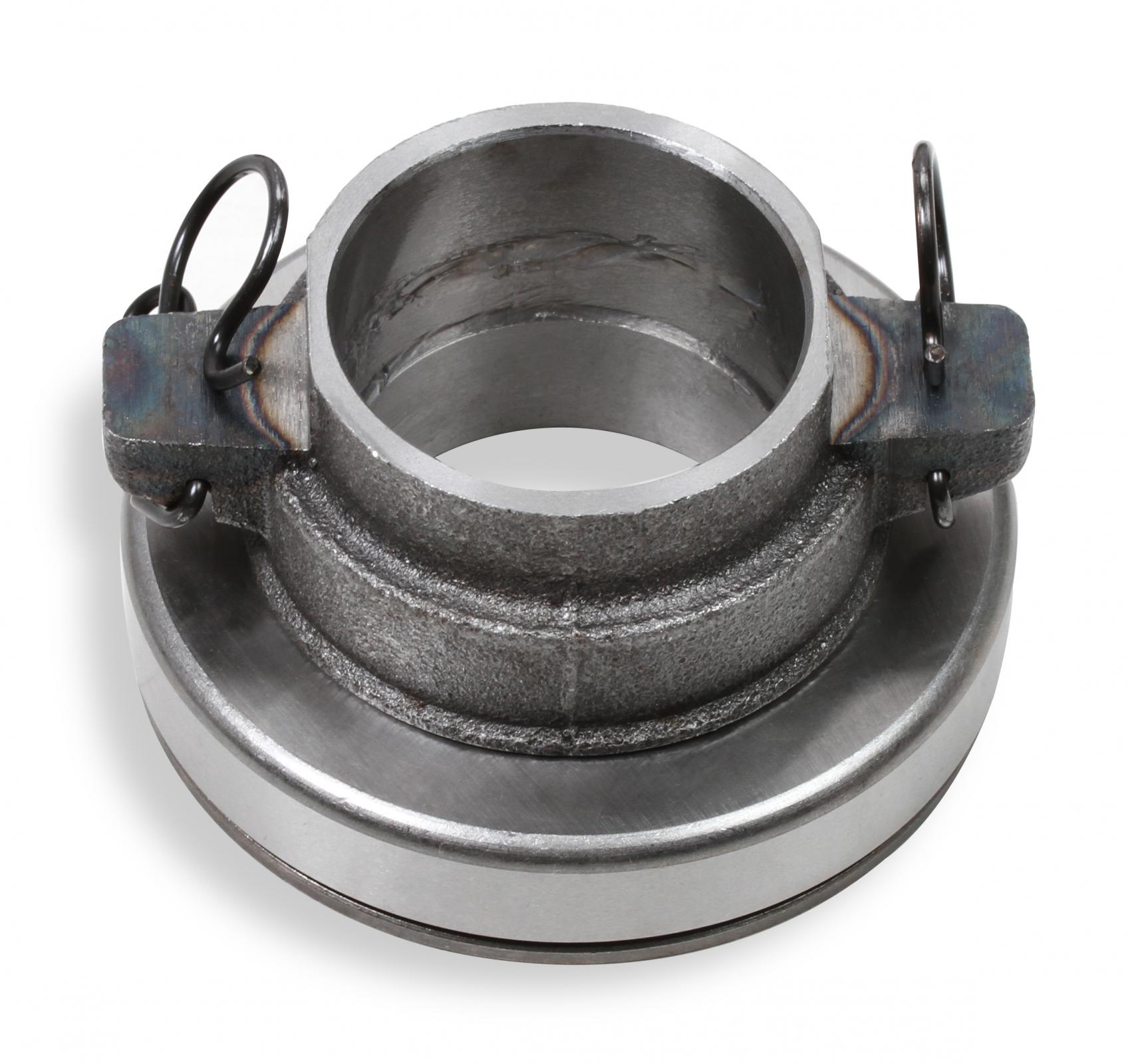

• Throwout Bearing Included: Yes
• Warranty: Manufacturer's Limited 90 Day Warranty

Application Summary:

• 2001-2004 Dodge Ram 2500 Base SLT ST Laramie (Liter: 5.9 & Engine(ci): 359 & Cylinder: 6 & Block: L & Transmission Code: NV4500HD, NV4500, NV5600, NV3500)
• 2001-2004 Dodge Ram 3500 Base ST Laramie SLT (Liter: 5.9 & Engine(ci): 359 & Cylinder: 6 & Block: L & Transmission Code: NV5600, NV4500, NV4500HD, NV3500)
