This Hays Hot Street Clutch kit fits 1965-1997 28oz external balance small block Ford engines. It offers ultimate Street/Strip performance through matched components.

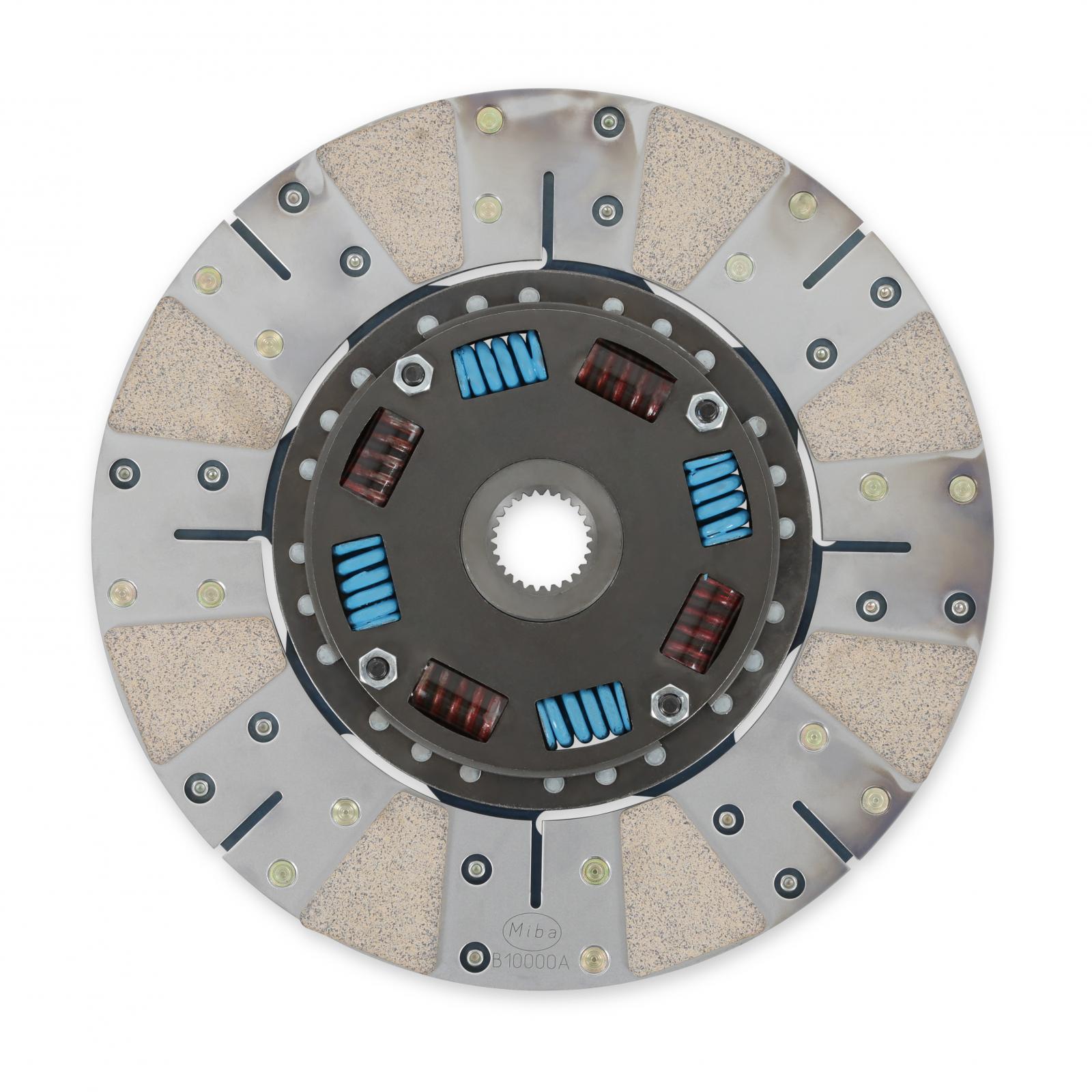

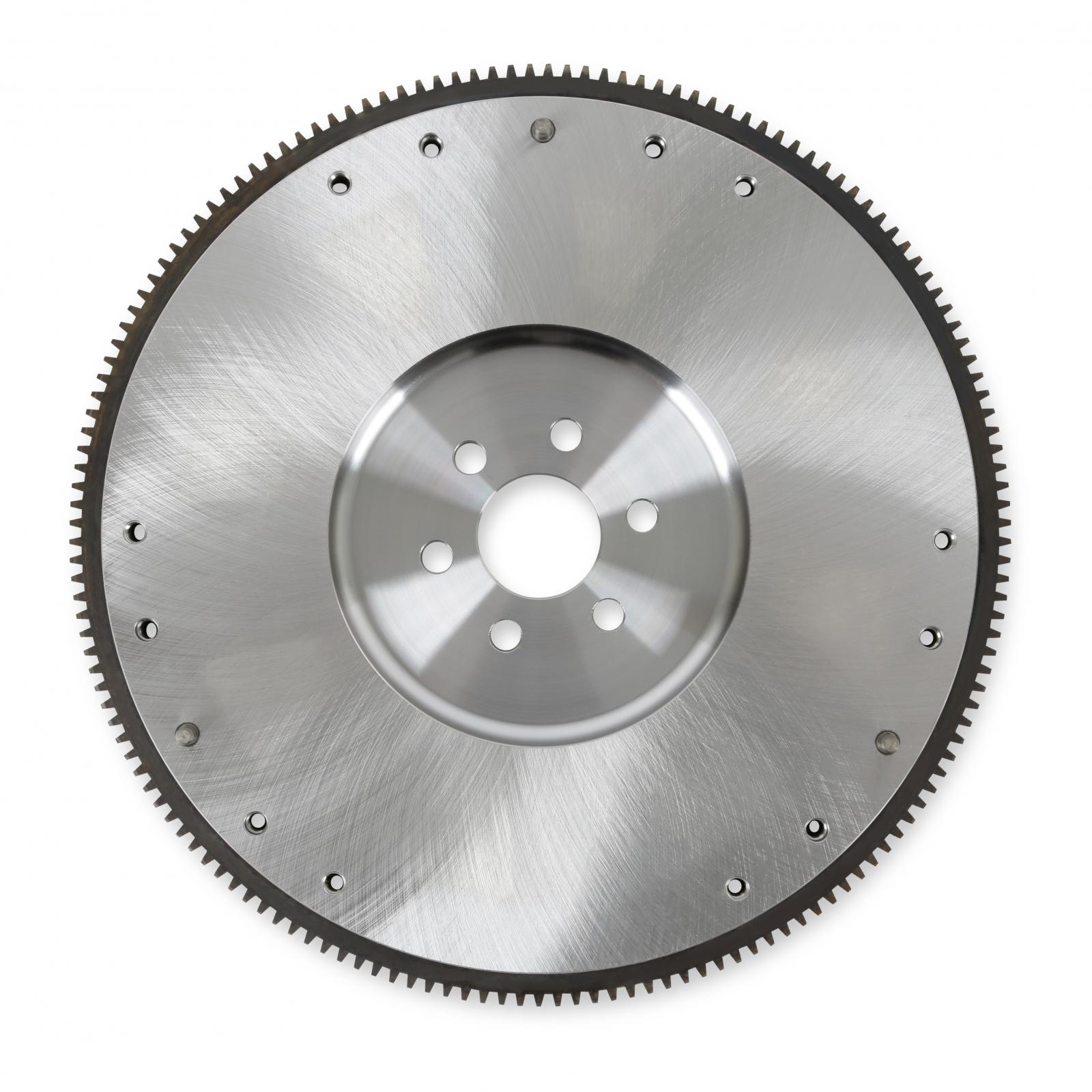

A 10.5-inch metallic disc with 6 spring helix sprung hub provides superior grip needed for the strip, while the matched diaphragm style pressure plate provides a pedal feel comfortable enough for the street. This provides 30 percent more clamping pressure and transmits that through a Billet steel flywheel.

These matched components provide the peace of mind purchase you've come to expect over the years from Hays.

Features and Benefits:

• 10.5-inch single clutch disc with 1-1/8-inch x 26 spline for 28oz small block Ford engines
• Kit includes Billet steel flywheel, pressure plate, metallic disk, pressure plate bolts, dowels and alignment tool
• Street/Strip clutch kit provides excellent holding strength with a smooth daily driver pedal feel
• Designed for power levels up to 550 naturally aspirated horsepower (500 hp for forced induction/nitrous)

Details:

• Alignment Tool Included: Yes
• Application: Ford
• Disc Diameter: 10.5
• Disc Style: Sprung Hub
• Emission Code: 5
• Engine: Ford Small Block
• Engine Balance: 28 oz. external
• Flywheel Included: Yes
• Input Shaft Diameter: 1-1/8 Inch
• Input Spline: 26
• Max Horsepower: 550
• Number of Teeth: 157
• Pilot Bushing Included: No
• Pressure Plate Style: Diaphragm
• Throwout Bearing Included: No

Application Summary:

1900 Car Ford Small Block Ford (Aspiration: Naturally Aspirated & Cylinder Head: OHV & Liter: 5, 5.8, 4.2, 4.7, 3.6, 4.3 & Engine(cc): 5753, 4261, 4727, 3622 & Engine(ci): 302, 351, 255, 289, 221, 260 & Cylinder: 8 & Block: V & Bore(in): 4, 3.68, 3.8, 3.5 & Bore(mm): 101.6, 93.5, 96.4, 88.9 & Stroke(in): 3, 3.5, 2.88 & Stroke(mm): 76.2, 88.9, 73 & Engine VIN: D, C, T, M, E, F, N, H, R, G, B, L, A, Q, K, J & Valves: 16 & Ignition: Distributor-Breakerless & Fuel: GAS & Fuel Delivery: FI, CARB & Fuel Delivery SubType: MFI, TBI, 2BBL, 4BBL, 2x4BBL, CFI & Fuel Delivery Sytem Control: Electronic, Mechanical & Fuel Delivery Sytem: SFI, TBI, EFI, Motorcraft, Holley & Engine Version: HO, Windsor, Modified, Cleveland, Cleveland Boss, Hi-Perf., Boss/Eliminator, Cleveland Cobra Jet)

Associated Comments:

• Always allow 500 miles for break in period
• Not intended for use with 5 bolt block engines or H.O 302.
