Turbo inlet pipes serve two very distinct, and differing, purposes. On one hand the optimization of a turbo inlet pipe will encourage better turbo efficiency and responsiveness by allowing the turbo to ingest more air by way of an unobstructed and larger volume flow path.

On the other, you have a more visceral benefit that some may argue is equally, or even more, important than that of efficiency/flow optimization .- increased sound. No matter which of the distinct purposes is favored, Dinan will deliver on both.

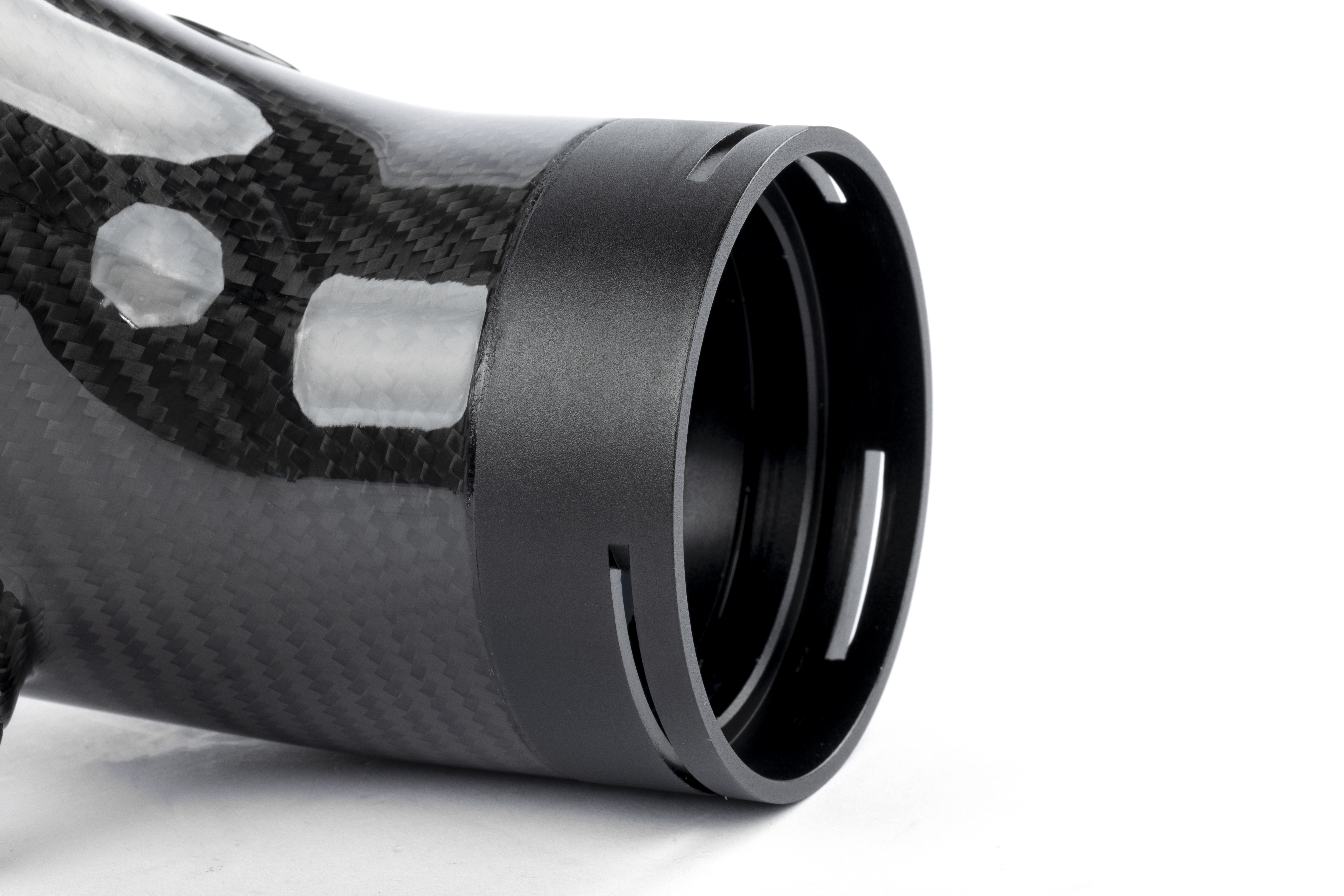

Regardless of application, a Dinan turbo inlet replaces the weak, and failure prone, plastic factory inlet with a more robust carbon fiber one. CNC machined fittings are utilized to ensure proper fitment and guarantee installation as a direct replacement to the OEM inlet.

Beyond material and fitment however are the improvements to the characteristics of the primary element in the system, the pipe itself. The stock turbo inlet has incorporated additional features (multiple in some cases) that introduce flow restrictions and turbulence while also reducing turbo noises.

All of which are unwanted but easily rectified by removing the various resonators and enlarging (and optimizing) the path for a more uniform flow. The result is an inlet that delivers not only more air and allows the turbo to be more efficient (work less) but also provides the oft desired amplification to the turbo induction soundtrack.

Note: For Lci x3/x4 M40i owners that wish to utilize the Dinan Turbo Inlet (D760-0062) for maximum sound, the associated Inlet Fit Kit (D763-0101) is Required. The Dinan Turbo Inlet will Not mate to the Dinan, or factory, intake system without the fit kit.

Features and Benefits

• Increased turbo efficiency and reliability courtesy of maximum unimpeded and uniform airflow.
• Eliminates the factory sound resonator for increased turbo vocalization.
• 14 Percent increase in overall volume over OEM inlet.
• Average of 7.7 Percent larger internal diameter throughout (maximum cross-sectional area allowed).

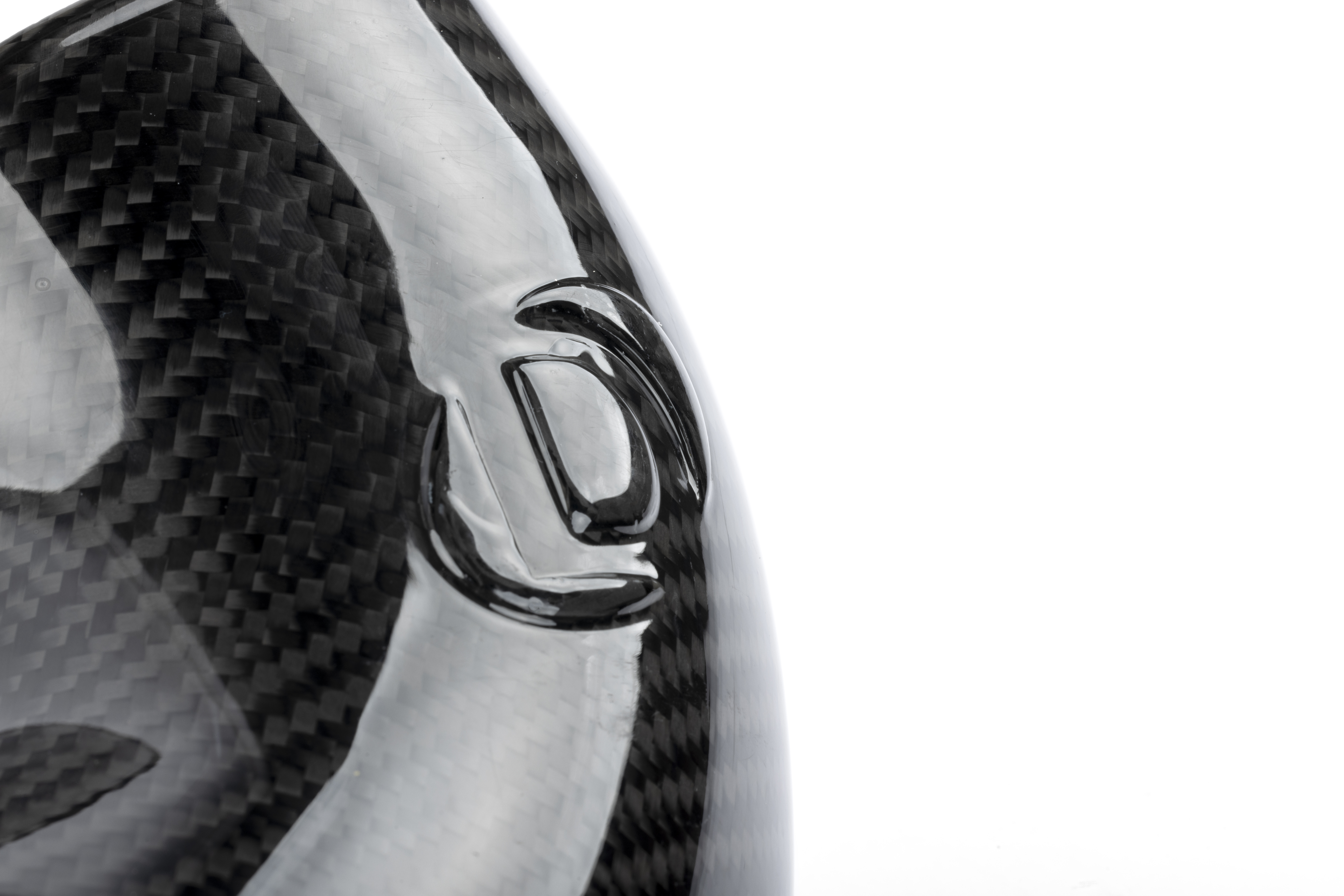

• Carbon fiber construction for increased durability and visual appeal.
• Direct replacement of OEM turbo inlet.
• Quick and easy bolt-on installation.

Associated Comments

X3/x4 M40i Fitment: D760-0062 is Only compatible with the 2020-2025 model years. Pre-LCI (2018-2019) models utilized a different configuration which affects fitment of the turbo inlet.

For Lci x3/x4 M40i owners that wish to utilize the Dinan Turbo Inlet (D760-0062) for maximum sound, the associated Inlet Fit Kit (D763-0101) is Required. The Dinan Turbo Inlet will Not mate to the Dinan, or factory, intake system without the fit kit.

Details:

• Dinan Point Value: 1
• Warranty: The remainder of vehicle factory limited warranty (up to 4yr/50k mi) or 2yr/unlimited miles, whichever is greater
• Material: Carbon Fiber
