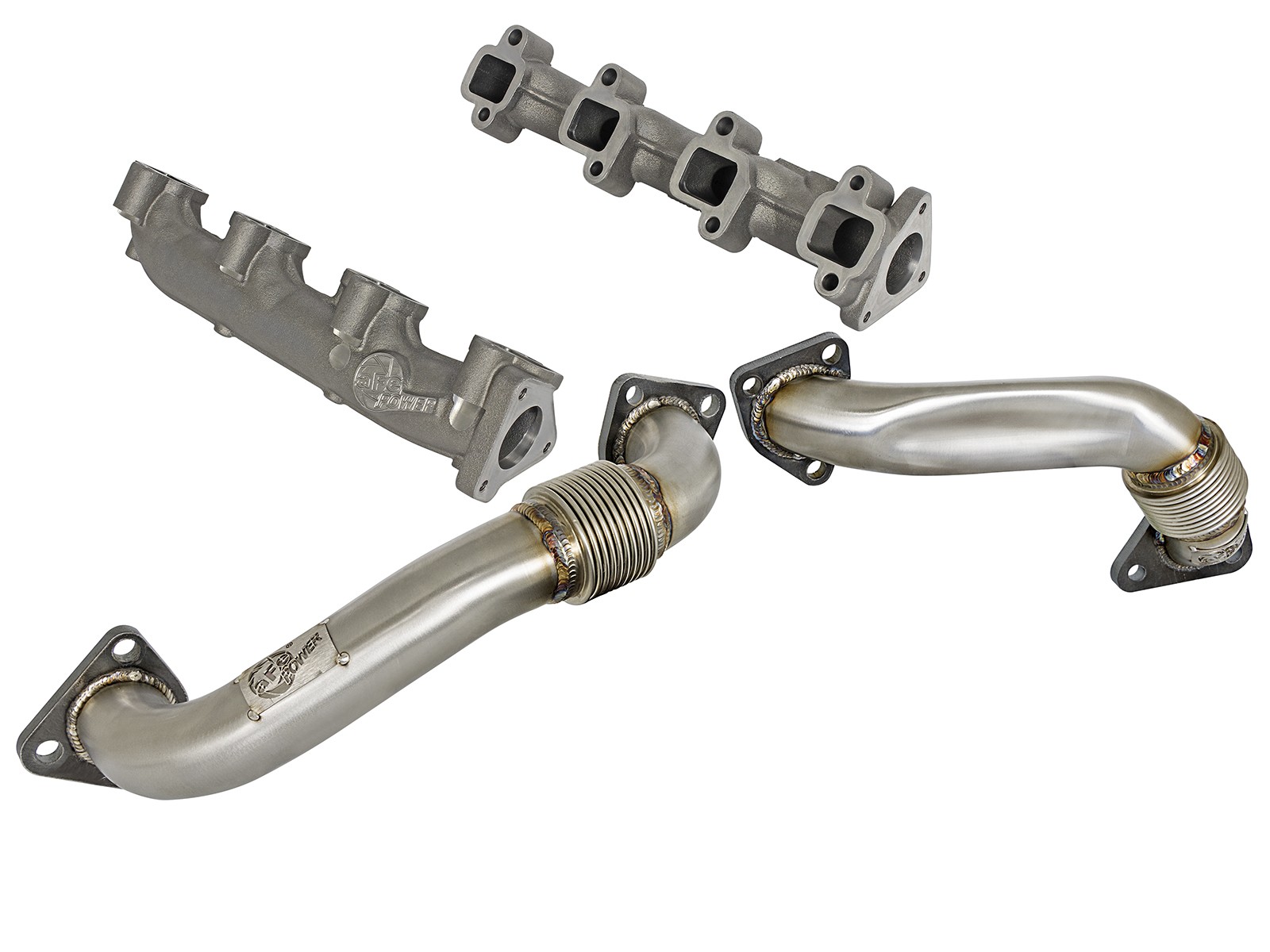

Construction: These unique up pipes are constructed of 2 Inch mandrel-bent 304 stainless steel tubing with a.120 Inch wall for strength and durability. 2 Inch Inner Liner Flex Pipes: The down-pipes utilizes heavy duty 2 Inch flex tubes with internal inner liner. Leak-Free Seal: High quality 3/8 Inch thick flanges are used for a complete 360 degree sealing surface.

Machined Ports: These manifolds have both the inlet and the outlet ports machined to match the factory gaskets. This allows for maximum flow, without compromising gasket performance. Auxiliary Ports: An Exhaust Gas Temperature (Egt) probe port is incorporated into each manifold for easy installation of gauges or testing equipment.

There are three additional cast in bosses provided to allow for alternate testing points. Hassle-Free Installation: These manifolds are compatible with the stock up-pipes, which allows the manifolds to be installed without having to remove the turbocharger down-pipe or the up-pipes.

Features and Benefits:

• Outflows The Factory Manifold By 6 percent
• Improved Performance And Throttle Response
• Compatible w/Factory Up-Pipes Which Allows For Easy Install
• Eliminates Flow Restricting Pin. Of Fact. Drivers Side Manifold
• Machined Ports Match The Factory Gasket Openings
• 1/8 Inch Npt Exhaust Gas Temp Ports Are Incorporated Into Manifold
• Durable Cast Ductile Iron Construction
• Manifold Mounting Hardware Is Included

Details:

• Emission Code: 1
• Fuel Type: Diesel
• Liter: 6.6 Liter
• Series: Twisted Steel
• Warranty: 2 Year

Applications:

• GM Diesel Trucks 01-04 V8-6.6L (td) LB7
